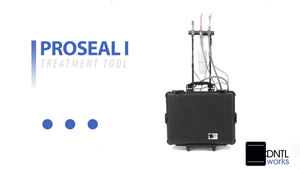

ProSeal I Portable Hygiene Unit

The exceptionally powerful and quiet ProSeal™ I and ProSeal™ II self-contained hygiene units from DNTLworks Equipment Corporation exceed the standard for quality in portable sealant programs.

Features:

  • ​The impact-resistant case incorporates built-in wheels and retractable handle
  • Powerful, quiet vacuum pump with dual hoses for HVE and saliva ejector use
  • Integrated, non-retracting water source with air/water syringe for irrigating and drying

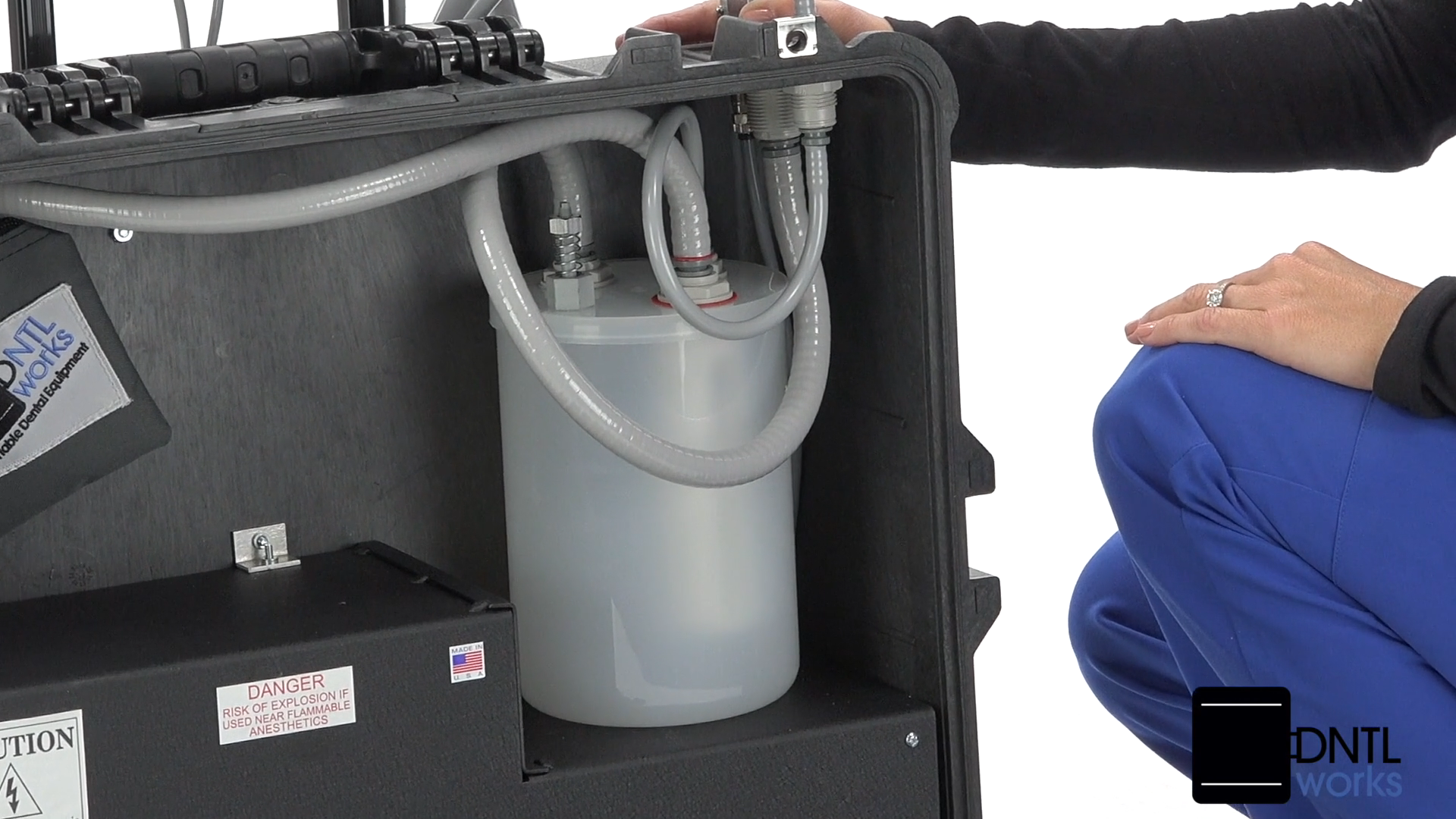

  • Large waste container with automatic overflow shutoff
  • Mini-compressor for air/water syringe use
  • Hospital-grade power cord with 15 amp circuit breaker
  • Made with pride in the USA additional Features
  • One-piece design is both durable and rugged
  • Electric slows peed handpiece in ProSeal II
  • Powerful vacuum pump with dual-hose design accommodates many brands of HVE and saliva ejector tips
  • Impact-resistant case with built-in wheels and retractable handle
  • Efficient mini-compressor for air/water syringe use​
  • The optional piezo-electric scaler for the ProSeal II
  • Built-in carrying handle
     DIMENSIONS/WEIGHT
    Length:     24.5”  (62.2 cm)
    Width:    10.0”  (25.4 cm)
    Height:     20.0”  (50.8 cm)
    Weight:   ProSeal I - 48 lbs.  (22.7 kg)
    ProSeal II - 60 lbs. (27.0 kg
    VACUUM MOTOR
    Power:     1/3 hp
    Vacuum Strength:    10” InHg
    Vacuum Flow:   4.8 cfm
    Waste Receptacle:     2qt. (1.9 Liters)
    Sound Level:    46 dB
    Automatic Overflow Shutoff Valve

    ELECTRICAL
    Power Supply: 115 volts / 60Hz --220 volts / 50Hz
    Circuit Breaker:     15 amps
    Hospital Grade Wiring:  NEMA Type 5-15P Plug

    110 V Part # 1300 220 V Part # 1305

    HANDPIECE
    PROSEAL II ONLY
    Motor:     0 - 40,000 rpm
    10:1 reduction, straight nose cone attachment included
    Other slow speeds and prophy attachments are available.
    Amperage 5.75A
    Compressor Type Oil-Free Compressor/Vacuum Pump
    Dimensions 24.5"x10"x20" to ??"
    Element Filtration 50 micron Vacuum System
    Flow Rate 1 scfm @ 27psi Compressor
    Flow Rate 4.8 scfm @ 10 inhg Vacuum System
    Hertz 60hz
    Horse Power 1/16hp Compressor, 1/3hp Vacuum Pump
    Operating Pressure 65psi Air System

    Shipping Size 24"x24"x19"
    Shipping Weight 65 lbs
    Sound Level 46db @ 3'
    Voltage 120Vac
    Volume Air Tank 500ml
    Volume Vacuum Container 2qt, 1.9 Liter
    Volume Water Container 500ml
    Wattage 690W to 1440W with Accessories
    Weight 48lbs
