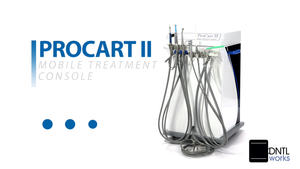

2200 ProCart II

2200

The innovative ProCart™ II combines the best attributes of self-contained mobility and high-tech design that is perfectly suited for professional in-office dental use.

Designed for use in dental offices, nursing homes, hospital and medical care units and mobile units combining superior performance with state of the art design.


 Features:
  • Sophisticated, one-piece design: completely self-contained with a built-in air compressor, separate vacuum pump, water, and waste management.
  • High-strength aluminum chassis with innovative Whisper Quiet sound reduction.
  • Separate oil-free adjustable vacuum pump for powerful suction.
  • Large, four-liter waste container with automatic overflow shutoff and electrical waste purge.
  • Ample, 1.5-liter water reservoir with additional external water connection.
Additional Features:
  • Wet/Dry Variable speed foot control
  • Automatic controls for one, two, and three handpieces Accommodates most brands of handpieces and fiber optic systems
  • Three-way syringe Adjustable H.V.E. system
  • Adjustable saliva ejector Asepsis designed chassis and handpiece holders
  • Recessed controls for easy cleaning
  • Air filter moisture separator Repair/Tool kit with operator manual
  • Side maneuvering handles and high-grade casters for easy movement of the cart
  • Optional arm-mounted trays and system cover
Specifications :
  • DIMENSIONS/WEIGHT
  • Width: 20”  (50.8 cm)
  • Depth: 21“ (53.3 cm)
  • Height: 30” to 34“ adjustable (76.2 cm 86.4 cm)
  • Weight: 100 lbs.  (45.5 kg)
Electrical :
  • Power Supply: 115 Vac, 60 Hz or 220 Vac, 50 Hz
  • Circuit breaker protection: 15 amps
  • Hospital-grade wiring, NEMA type 5-15 Plug
Water Module :
  • 1.5-liter reservoir
  • Pressurized system: 30 to 40 lbs
  • Aseptic non-retracting HPC coolant
  • Handpiece flush system
  • External quick connects for water and air
Compressor :
  • Oil-free 1/3 hp motor
  • Working pressure: 70 to 100 psi
  • Flow rate: 2.5 cfm
  • Sound level: 48 dB
  • Air reservoir: 4 liters
  • Automatic air tank purge
Vacuum Motor :
  • Oil-free 1/3 hp motor
  • Adjustable vacuum: 0” to 21” Hg
  • Vacuum flow: 4.6 cfm
  • Waste receptacle: 4 liters
  • Sound level: 48 dB
  • Automatic overflow shutoff Vacuum

110 V Part # 2200

220 V Part # 2210

Download Setup Instructions

Download Spec Sheet

Download Operation Manual
