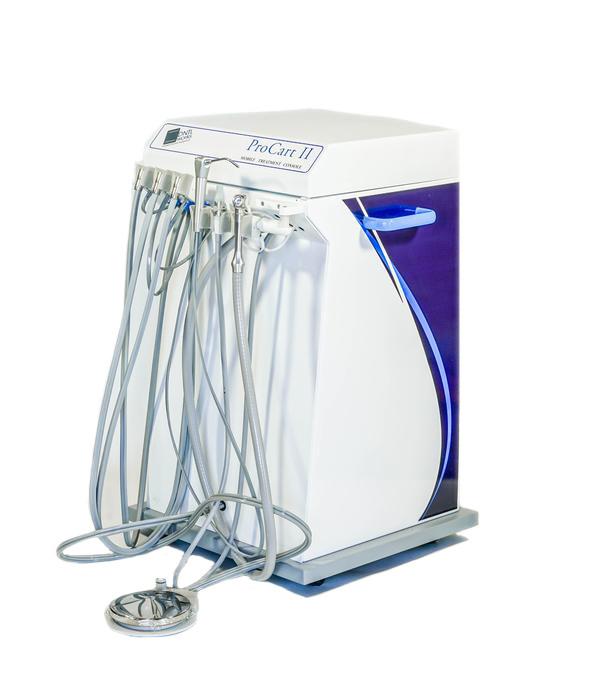

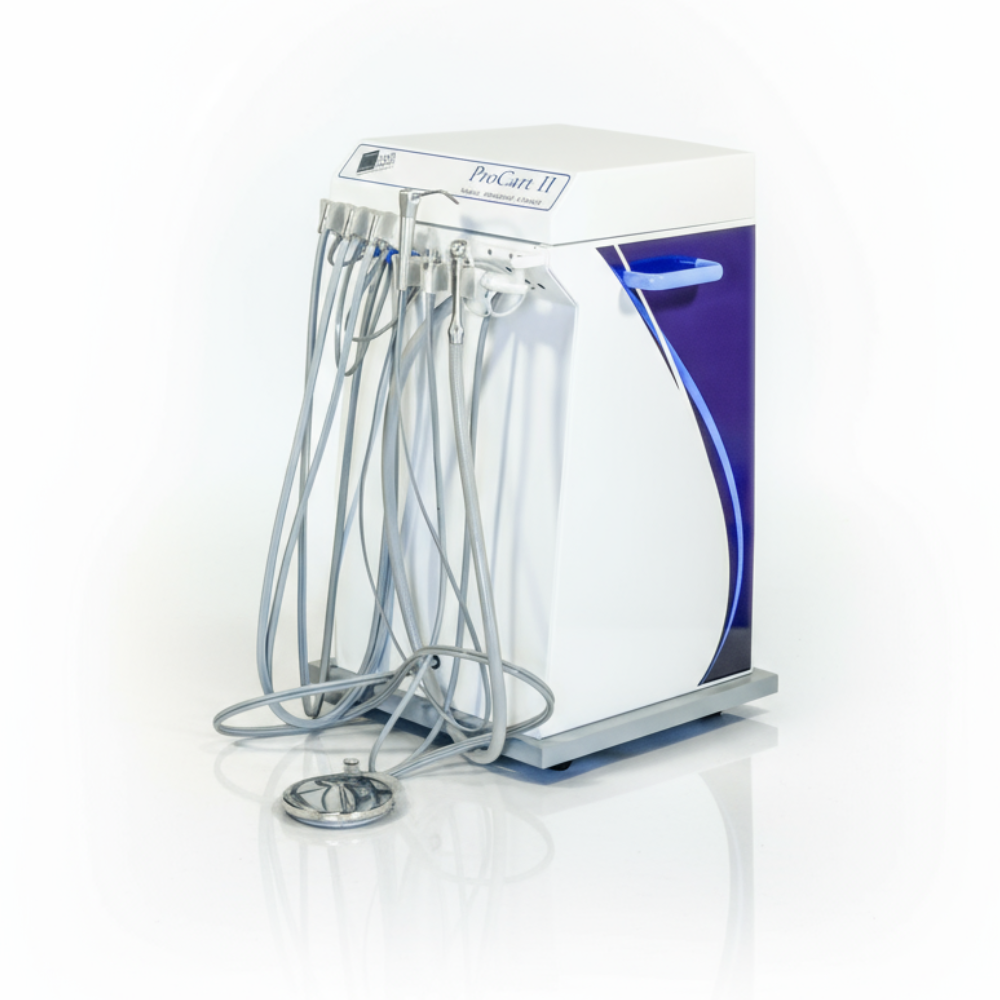

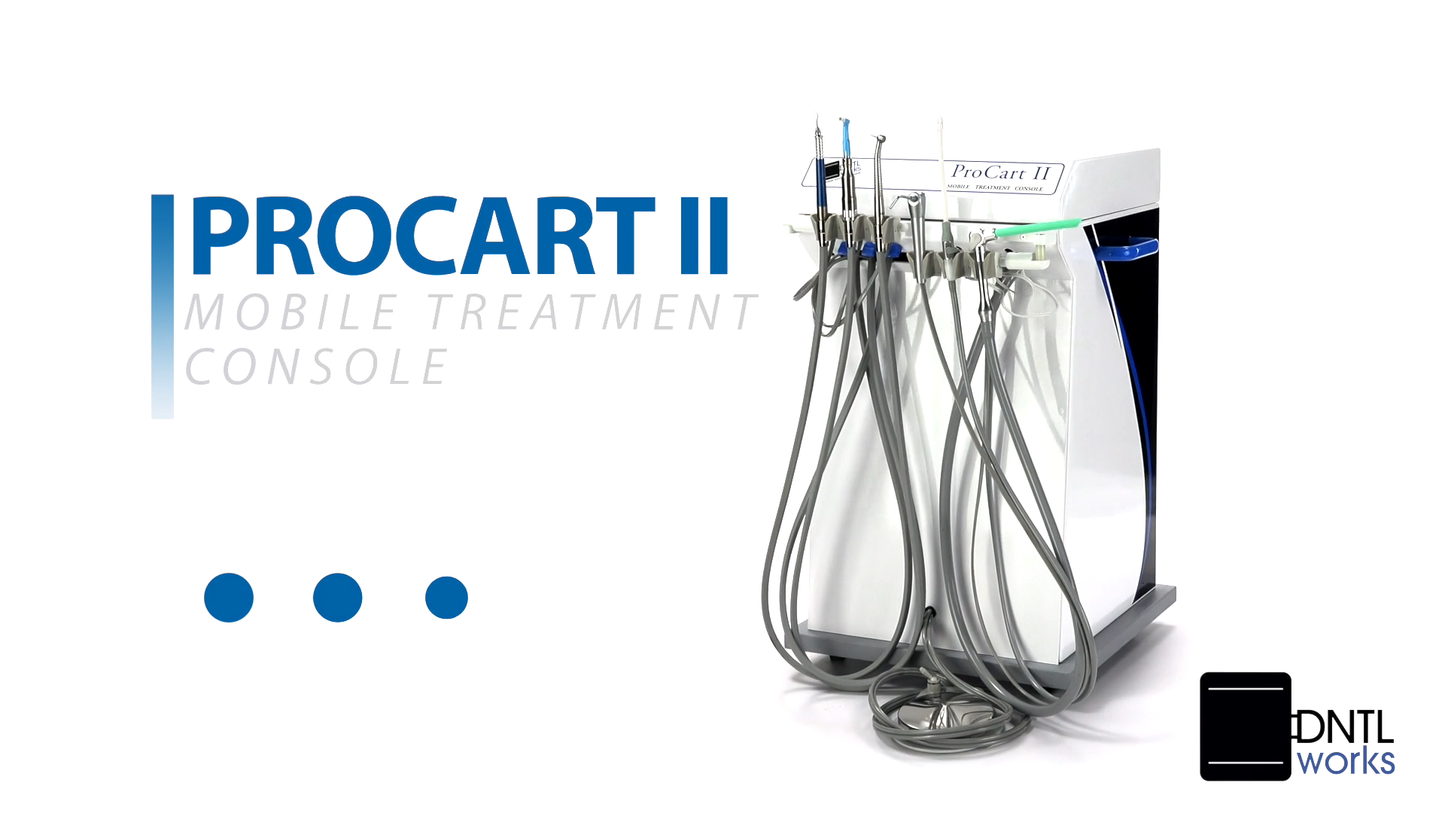

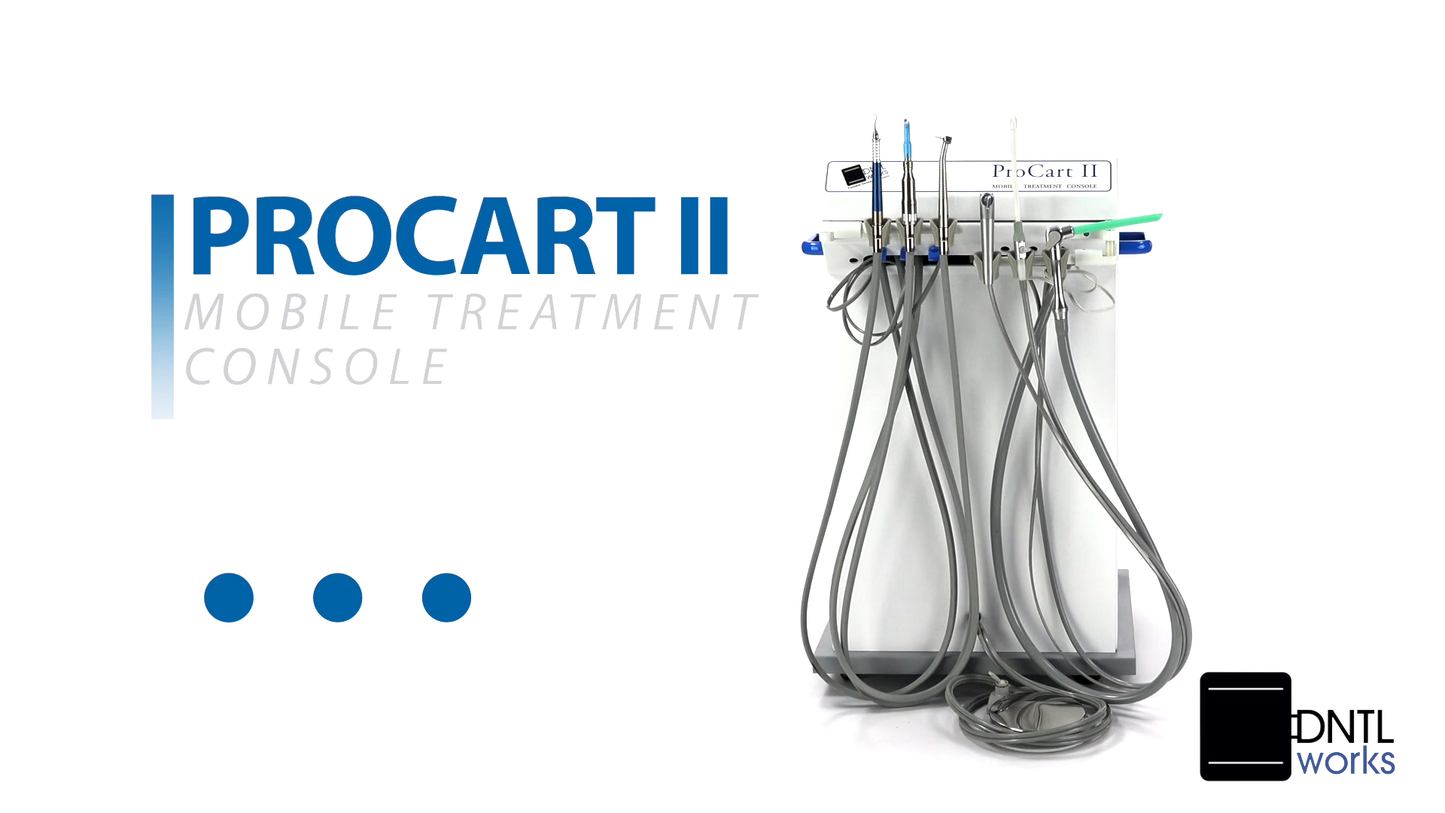

The innovative ProCart™ II combines the best attributes of self-contained mobility and high-tech design that is perfectly suited for professional in-office dental use.
Designed for use in dental offices, nursing homes, hospital and medical care units and mobile units combining superior performance with state of the art design.
Features:
- Sophisticated, one-piece design: completely self-contained with a built-in air compressor, separate vacuum pump, water, and waste management.
- High-strength aluminum chassis with innovative Whisper Quiet sound reduction.

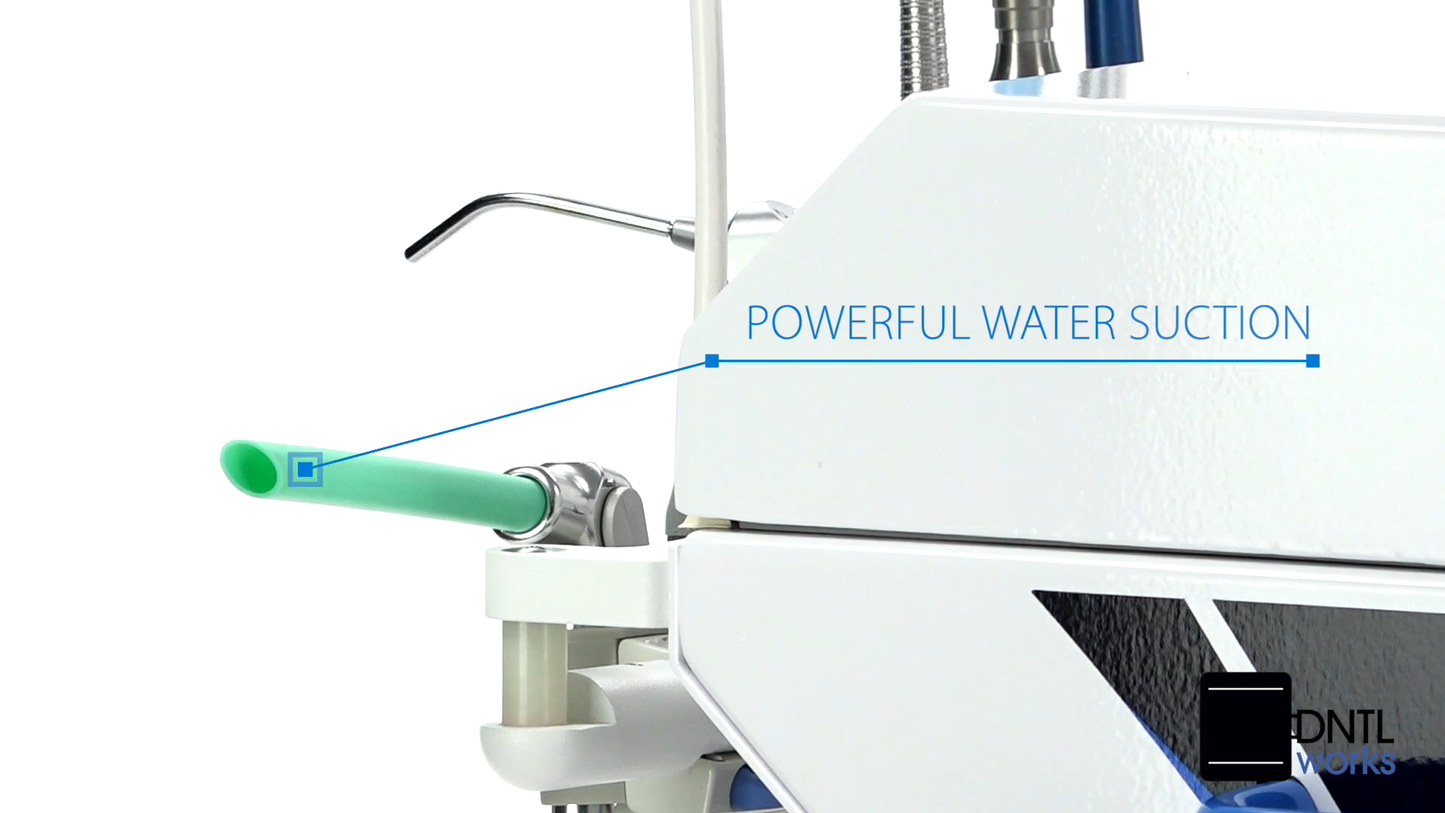

- Separate oil-free adjustable vacuum pump for powerful suction.
- Large, four-liter waste container with automatic overflow shutoff and electrical waste purge.

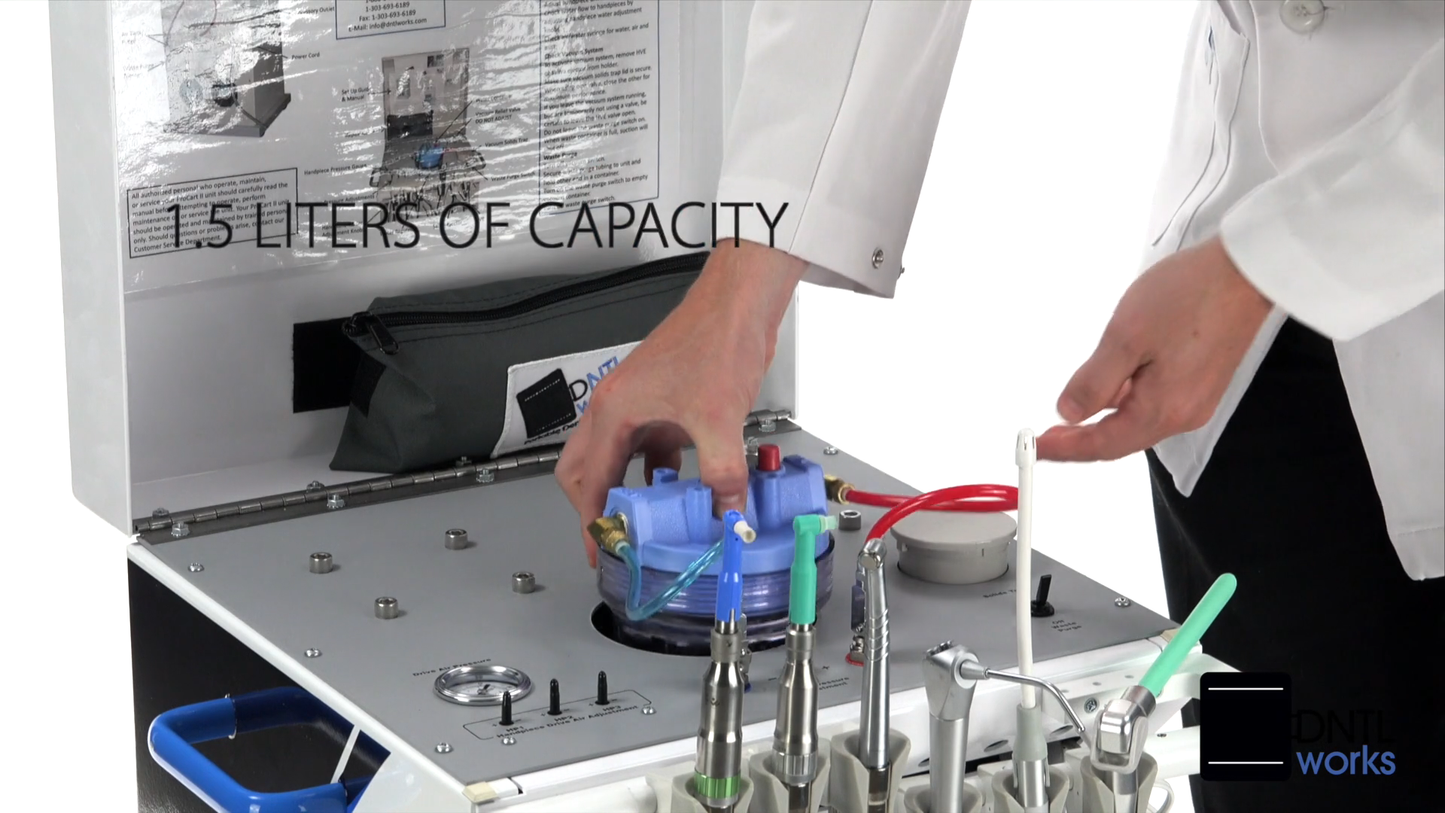

- Ample, 1.5-liter water reservoir with additional external water connection.
Additional Features:
- Wet/Dry Variable speed foot control

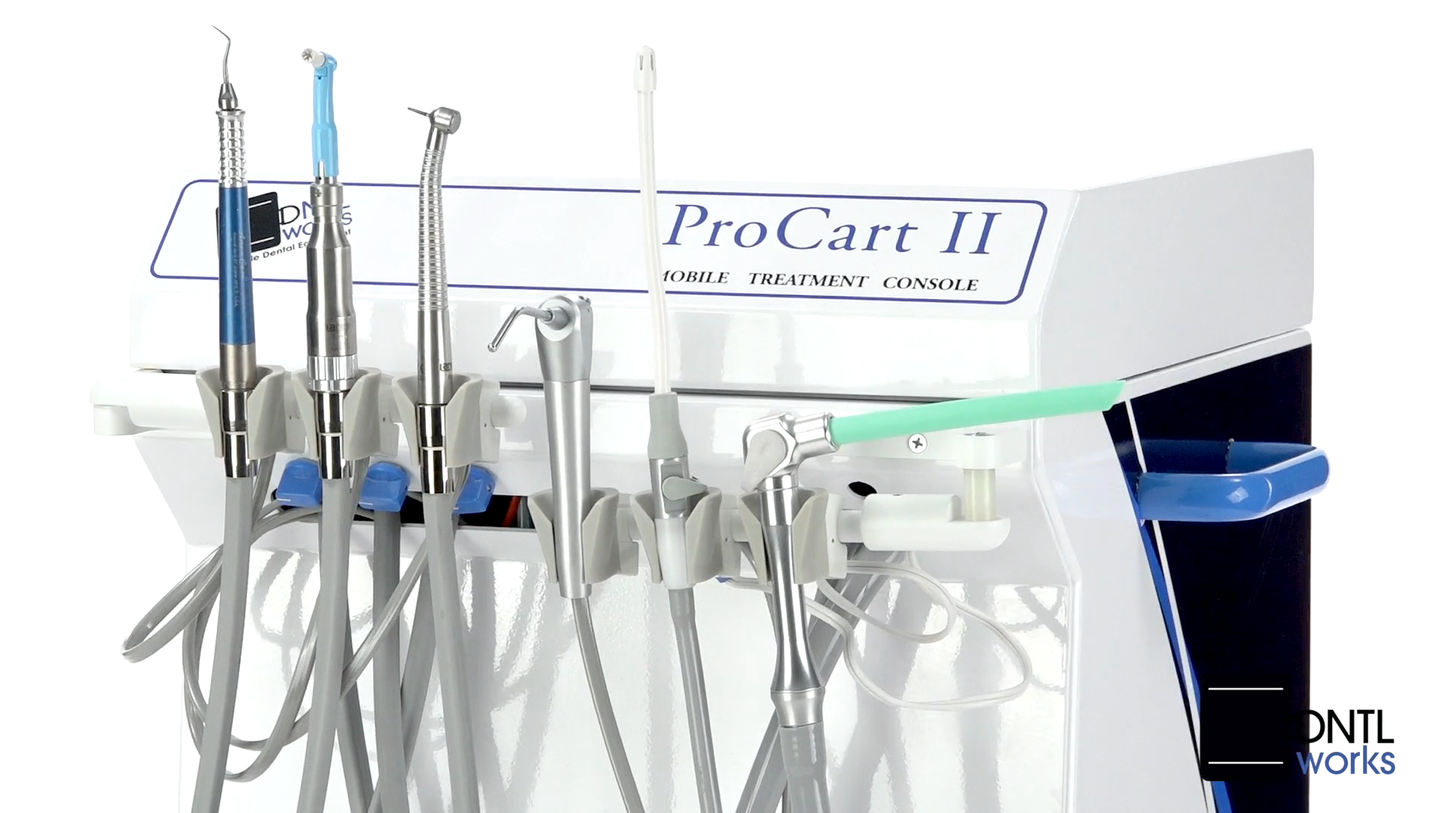

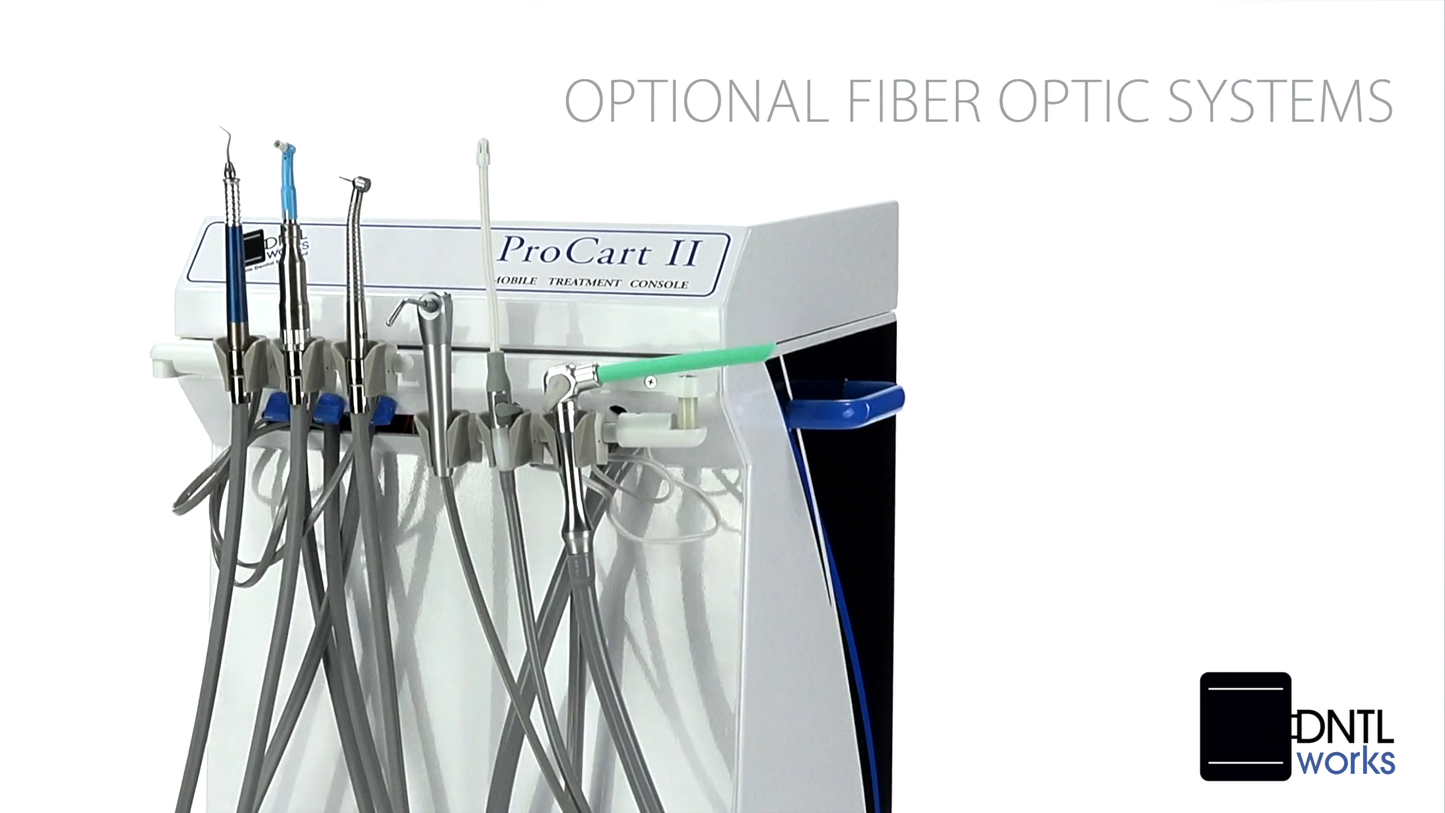

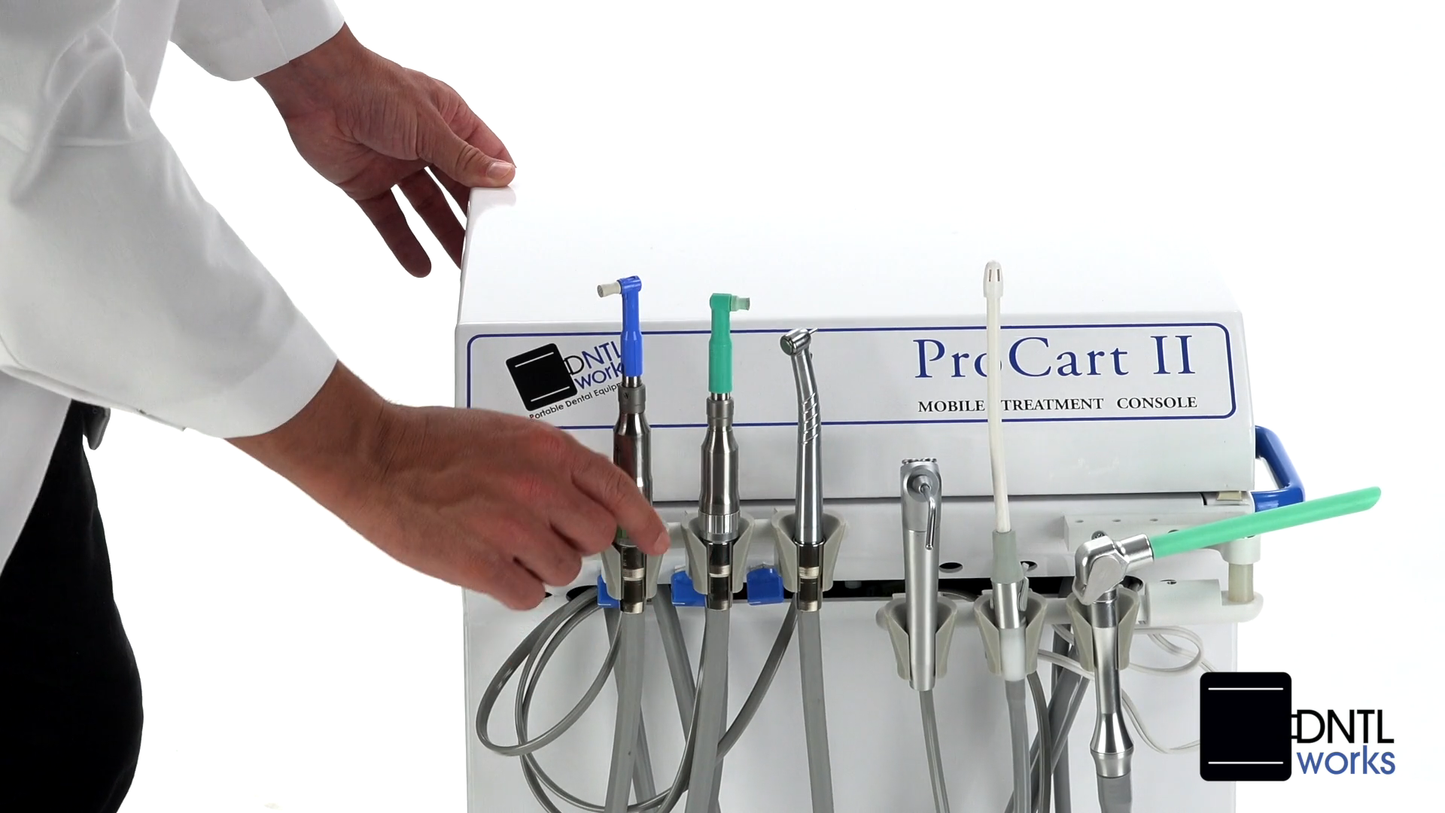

- Automatic controls for one, two, and three handpieces Accommodates most brands of handpieces and fiber optic systems

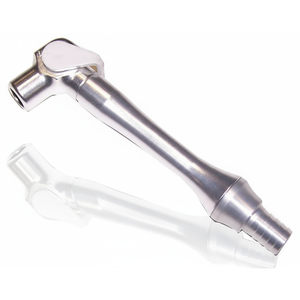

- Three-way syringe Adjustable H.V.E. system
- Adjustable saliva ejector Asepsis designed chassis and handpiece holders
- Recessed controls for easy cleaning
- Air filter moisture separator Repair/Tool kit with operator manual

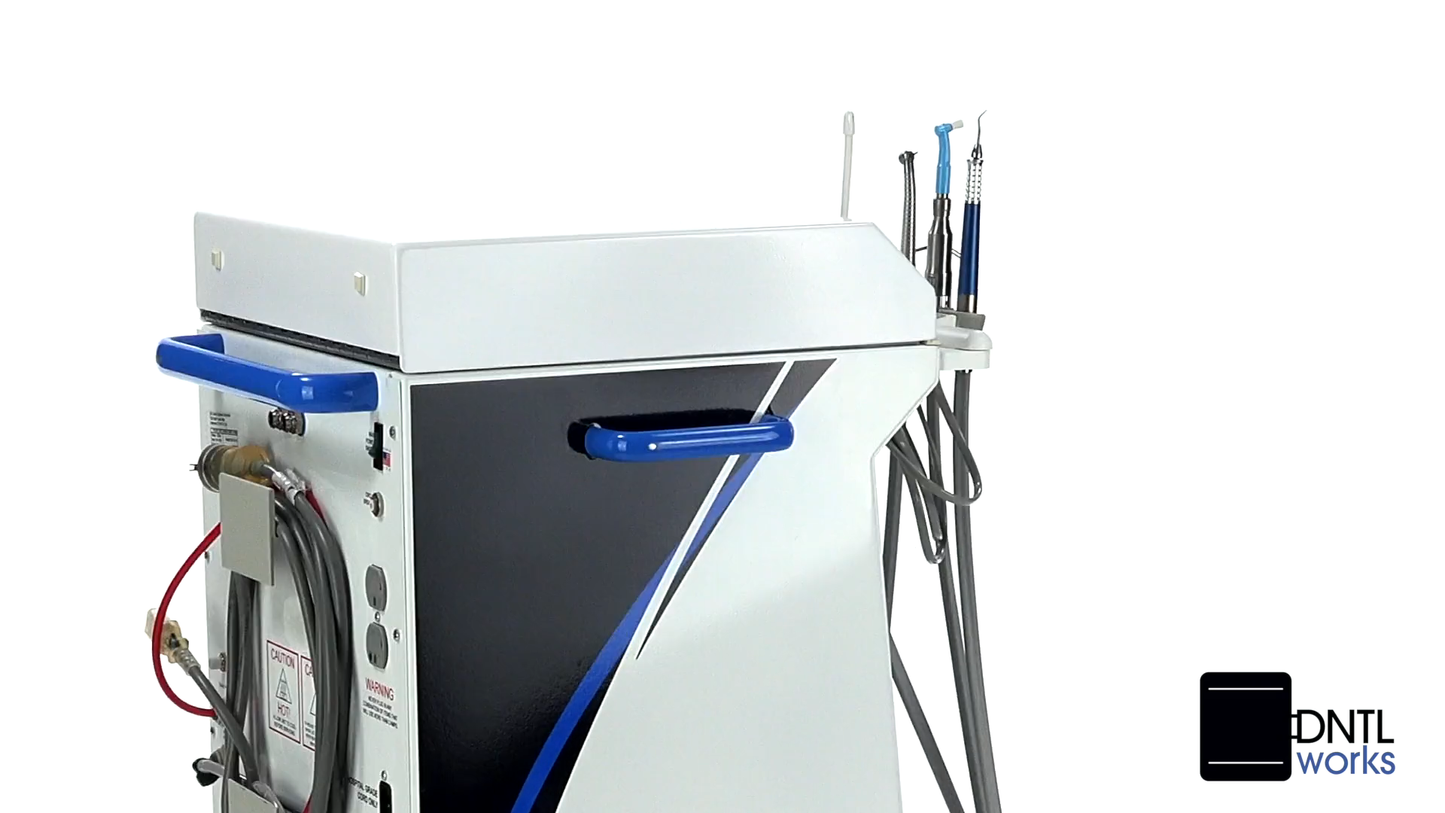

- Side maneuvering handles and high-grade casters for easy movement of the cart
- Optional arm-mounted trays and system cover
Specifications :
- DIMENSIONS/WEIGHT
- Width: 20” (50.8 cm)
- Depth: 21“ (53.3 cm)
- Height: 30” to 34“ adjustable (76.2 cm 86.4 cm)
- Weight: 100 lbs. (45.5 kg)
Electrical :
- Power Supply: 115 Vac, 60 Hz or 220 Vac, 50 Hz
- Circuit breaker protection: 15 amps
- Hospital-grade wiring, NEMA type 5-15 Plug
Water Module :
- 1.5-liter reservoir
- Pressurized system: 30 to 40 lbs
- Aseptic non-retracting HPC coolant
- Handpiece flush system

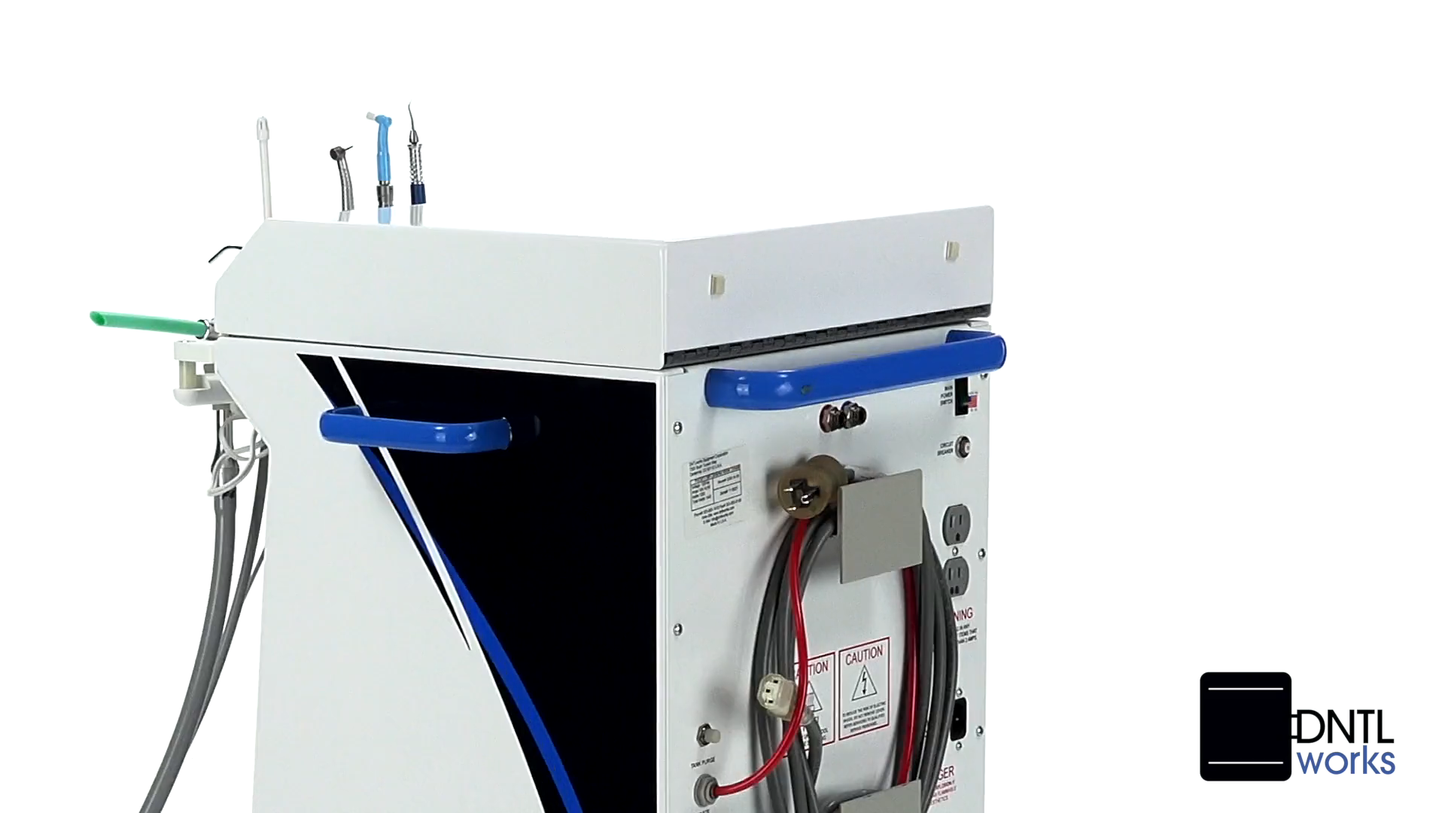

- External quick connects for water and air

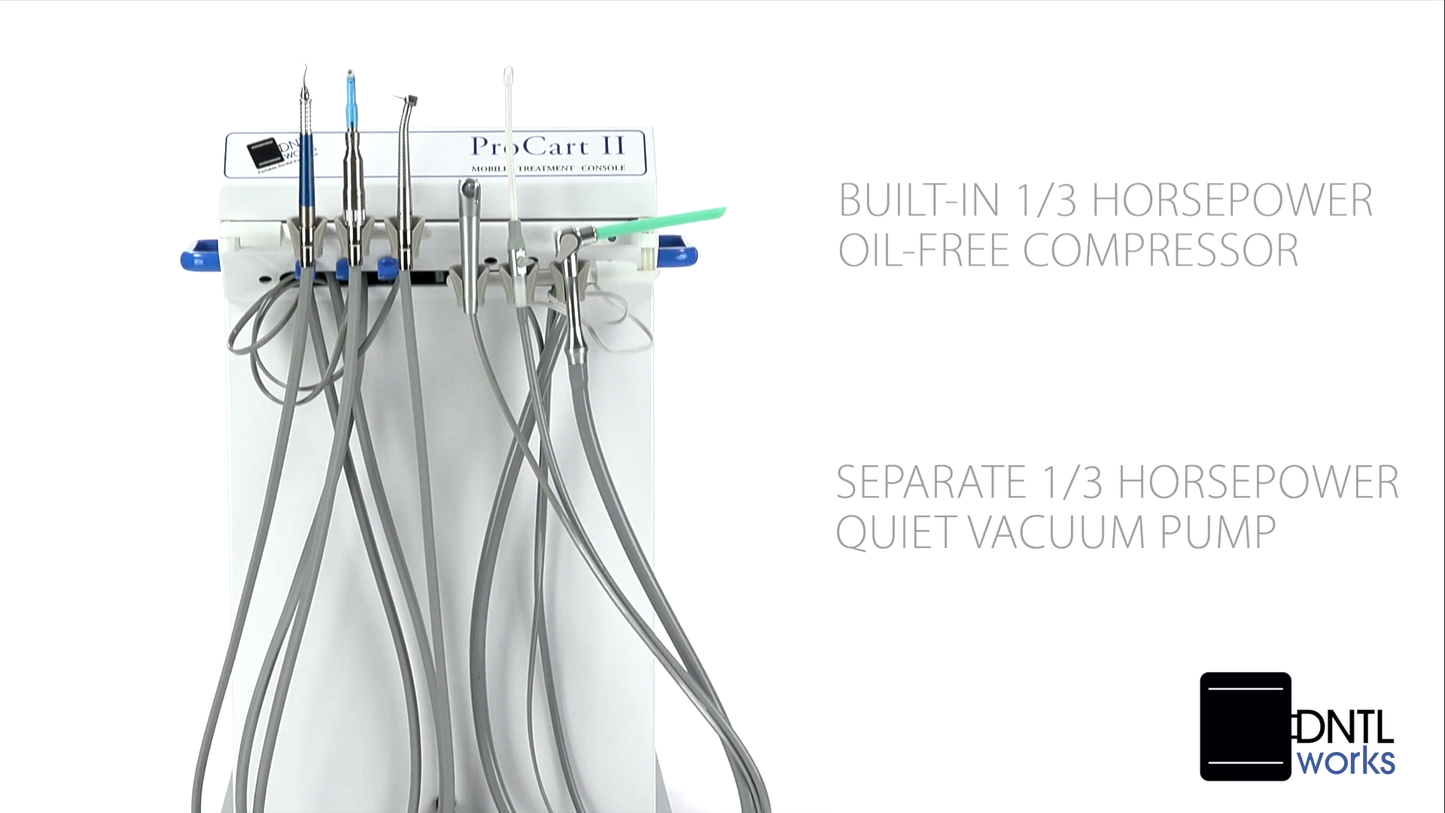

Compressor :

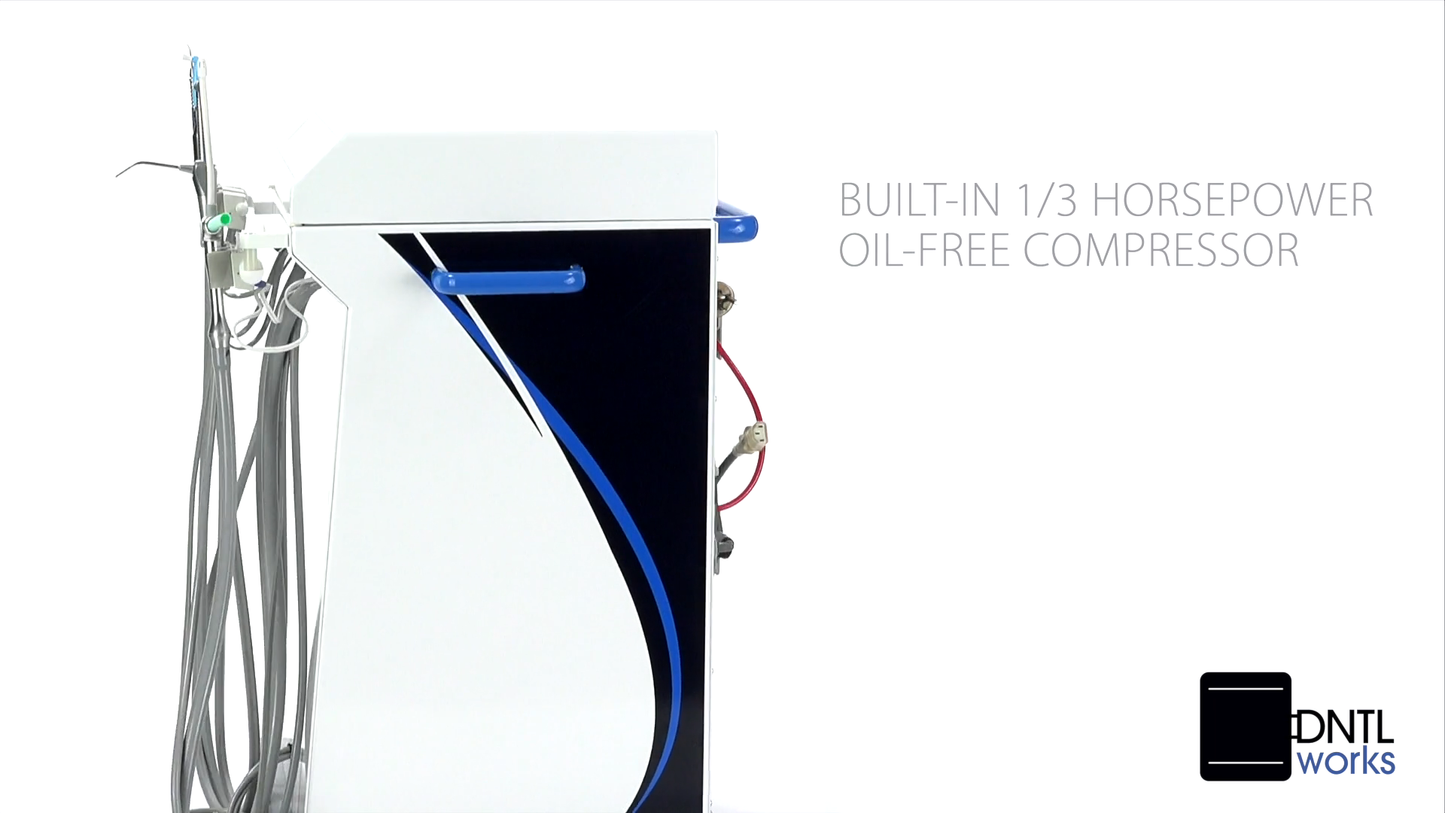

- Oil-free 1/3 hp motor
- Working pressure: 70 to 100 psi
- Flow rate: 2.5 cfm
- Sound level: 48 dB
- Air reservoir: 4 liters
- Automatic air tank purge
Vacuum Motor :
- Oil-free 1/3 hp motor
- Adjustable vacuum: 0” to 21” Hg
- Vacuum flow: 4.6 cfm
- Waste receptacle: 4 liters
- Sound level: 48 dB
- Automatic overflow shutoff Vacuum
110 V Part # 2200
220 V Part # 2210
