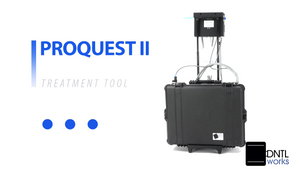

ProQuest II Delivery System with Fiber Optics

The ProQuest™ I and ProQuest™ II portable dental delivery systems from DNTLworks Equipment Corporation redefine the standard for powerful performance and self-contained portability.

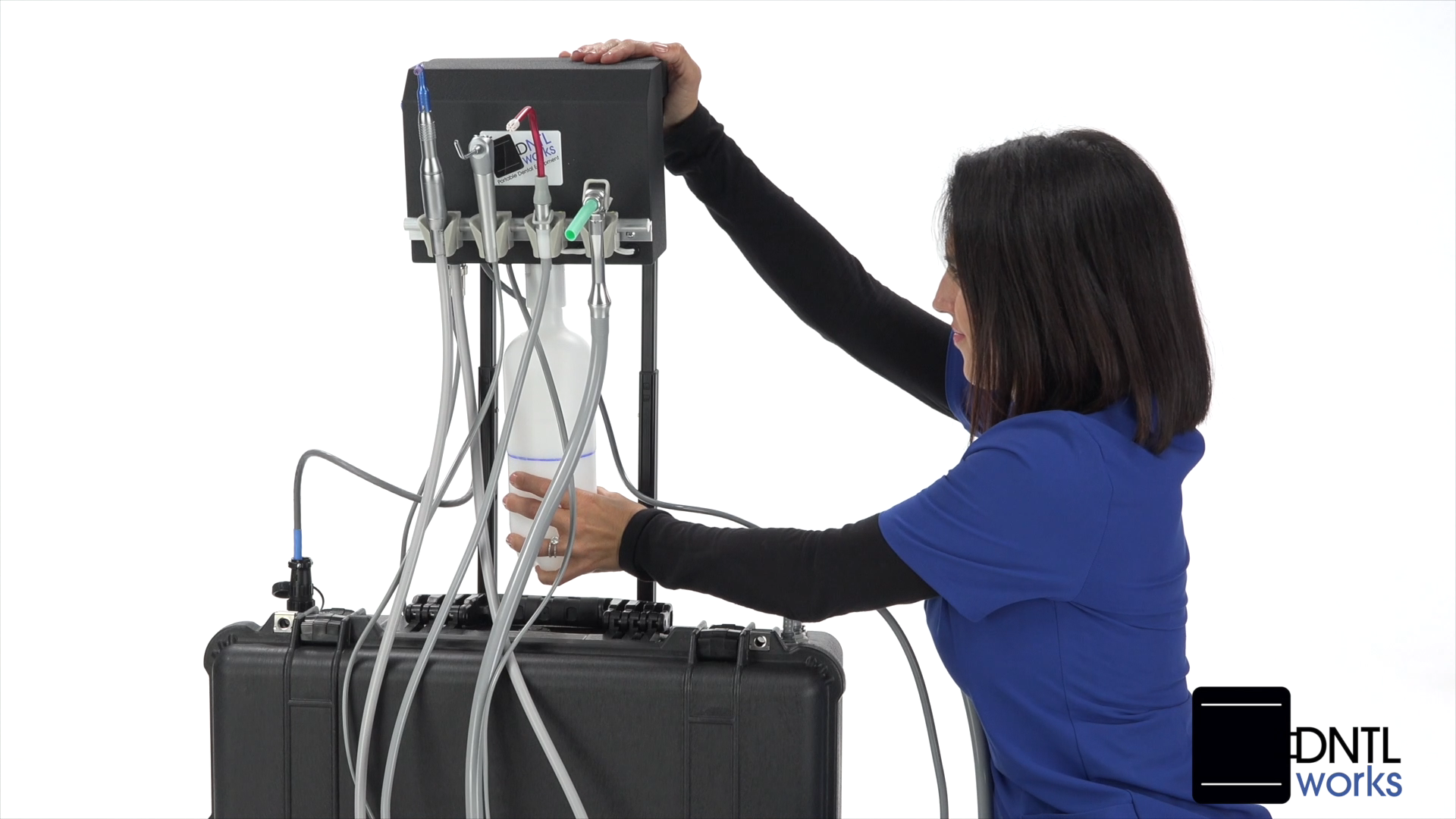

Configured in a single, lightweight carrying case with a top-mounted control box, the ProQuest is easy to use with quick assembly and disassembly.


This state-of-the-art delivery system includes a full-function electric handpiece with water and speed adjustments; a powerful and quiet oil-free vacuum motor with a dual hose design; a large waste container; internal water supply; air/water syringe; plus an oil-free compressor to pressurize the water source to the syringe and handpiece. Integrated fiber optics are available in ProQuest II.

A light curing wand and piezoelectric scaler are options for both systems.
The control box, vacuum tubing, and accessories are conveniently packed inside ProQuest’s impact resistant carrying case. The system incorporates built-in wheels and a retractable handle to facilitate transportation.

Combining the most powerful suction of any portable dental unit with full handpiece capability, the ProQuest Dental Delivery Unit is the ideal solution for on-the-go dentistry.

The lightweight, one-piece design includes a dual-hose operation (saliva ejector and HVE), a large waste container with automatic overflow shut-off, an internal water supply, an air-water syringe, and an impact-resistant case. These are just some of the features integrated into this exceptional self-contained unit.

The ProQuest is also equipped with built-in wheels and a retractable handle for easier transportation. Handpiece fiber optics, piezo-electric scalers, and light-curing wands are available as options.



Features

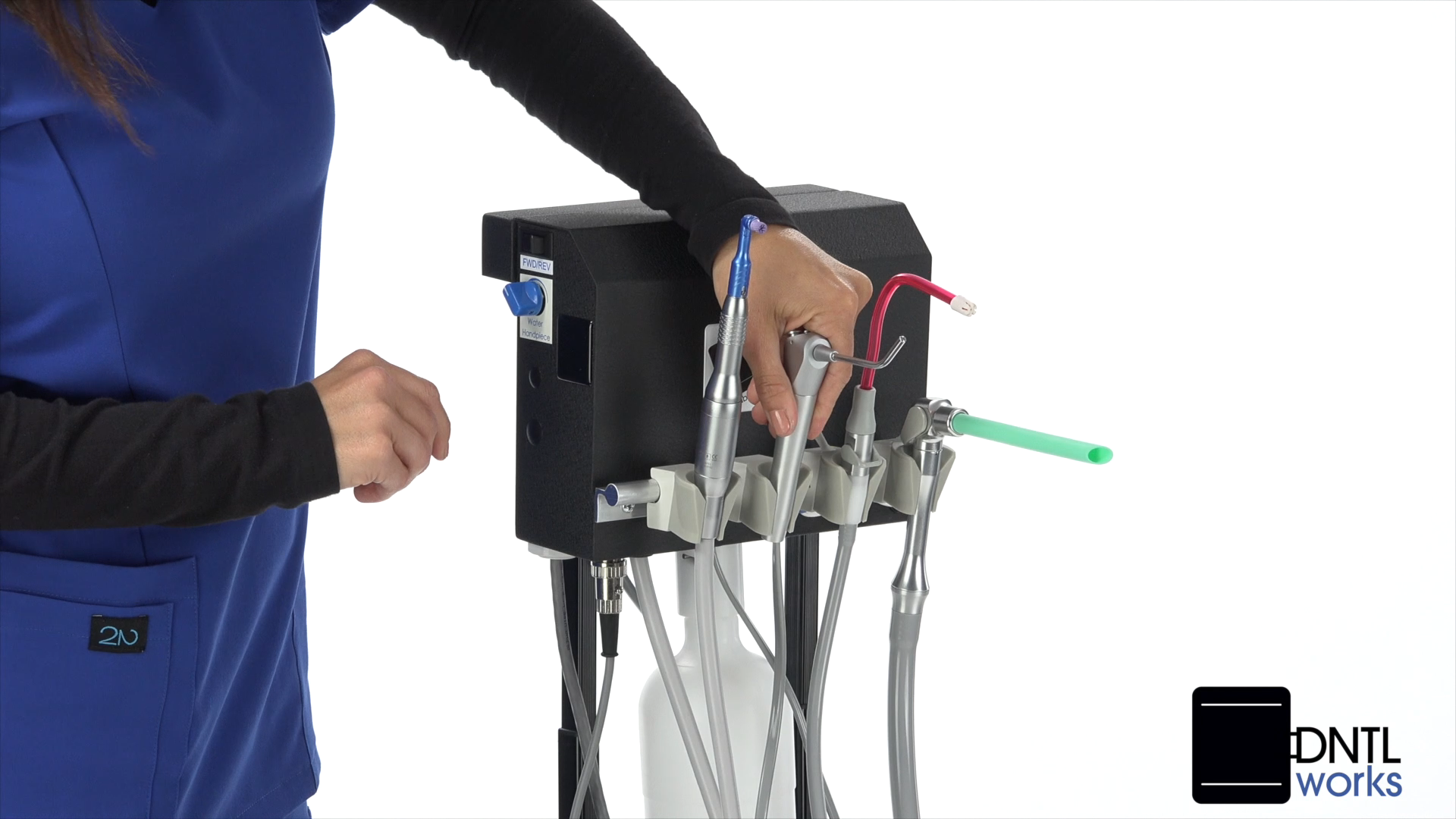

  • Complete electric high-speed handpiece with water and speed adjustments
  • Powerful, quiet vacuum pump with dual hoses for HVE and saliva ejector
  • Integrated, non-retracting water source with air/water syringe for irrigating and drying
  • Efficient mini-compressor for air/water syringe use
  • Large waste container with automatic overflow shutoff
  • Compact, Lightweight one-piece design

Additional Features

  • Compact, one-piece design
  • Electric high-speed handpiece with water and speed adjustments

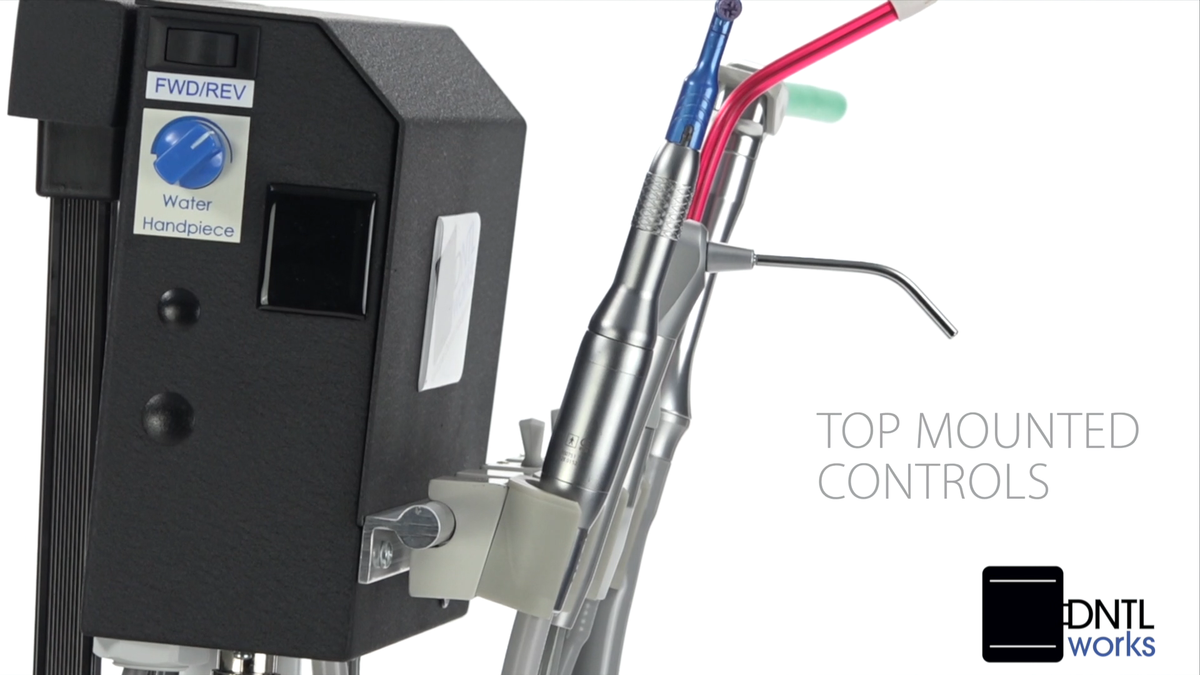

  • Top-mounted control box for all unit functions
  • Non-retracting water source with air/water syringe
  • Impact-resistant case with built-in wheels and retractable handle

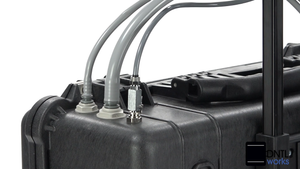

  • A powerful vacuum pump with a dual hose design accommodates many brands of HVE and saliva ejector tips
  • Handpiece fiber optics are standard in ProQuest II

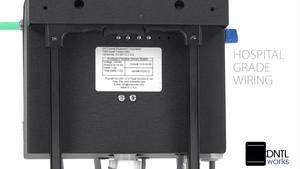

  • Hospital-grade wiring with 15 amp circuit breaker protection
  • Attached, is an ergonomic carrying handle
  • Efficient mini-compressor for air/water syringe use
  • Easy access through the side door
  • The optional light-curing unit, and piezo-electric scaler

 Specifications

DIMENSIONS/WEIGHT
Length:     24.5”  (62.2 cm)
Width:       10.0”  (25.4 cm)
Height:      20.0”  (50.8 cm)
Weight:     60 lbs.  (27.3 kg)

VACUUM MOTOR
Power:     1/3 hp
Vacuum Strength:    12” Hg
Vacuum Flow:   4.6 cfm
Waste Receptacle:
2 qt. (1.9 Liter)
Sound Level:    46 dB
Automatic Overflow Shutoff Valve

ELECTRICAL
Power Supply:  115Volts/60Hz  220 Volts/50Hz
Circuit Breaker: 15 amps
Hospital Grade Wiring: NEMA Type 5-15P Plug

HANDPIECE
Speed:     0 - 200,000 rpm
Power:   6 amps, 150 watts
ISO E-type attachment
Forward and reverse control

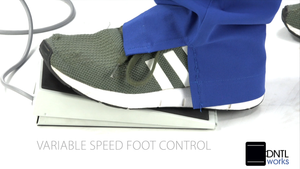

Variable speed foot control
Internal triple-port water spray

      Download Operation Manual


      Download Spec Sheet
