ProQuest II Delivery System with Fiber Optics
ProQuest II Delivery System with Fiber Optics
SKU:1410
Couldn't load pickup availability

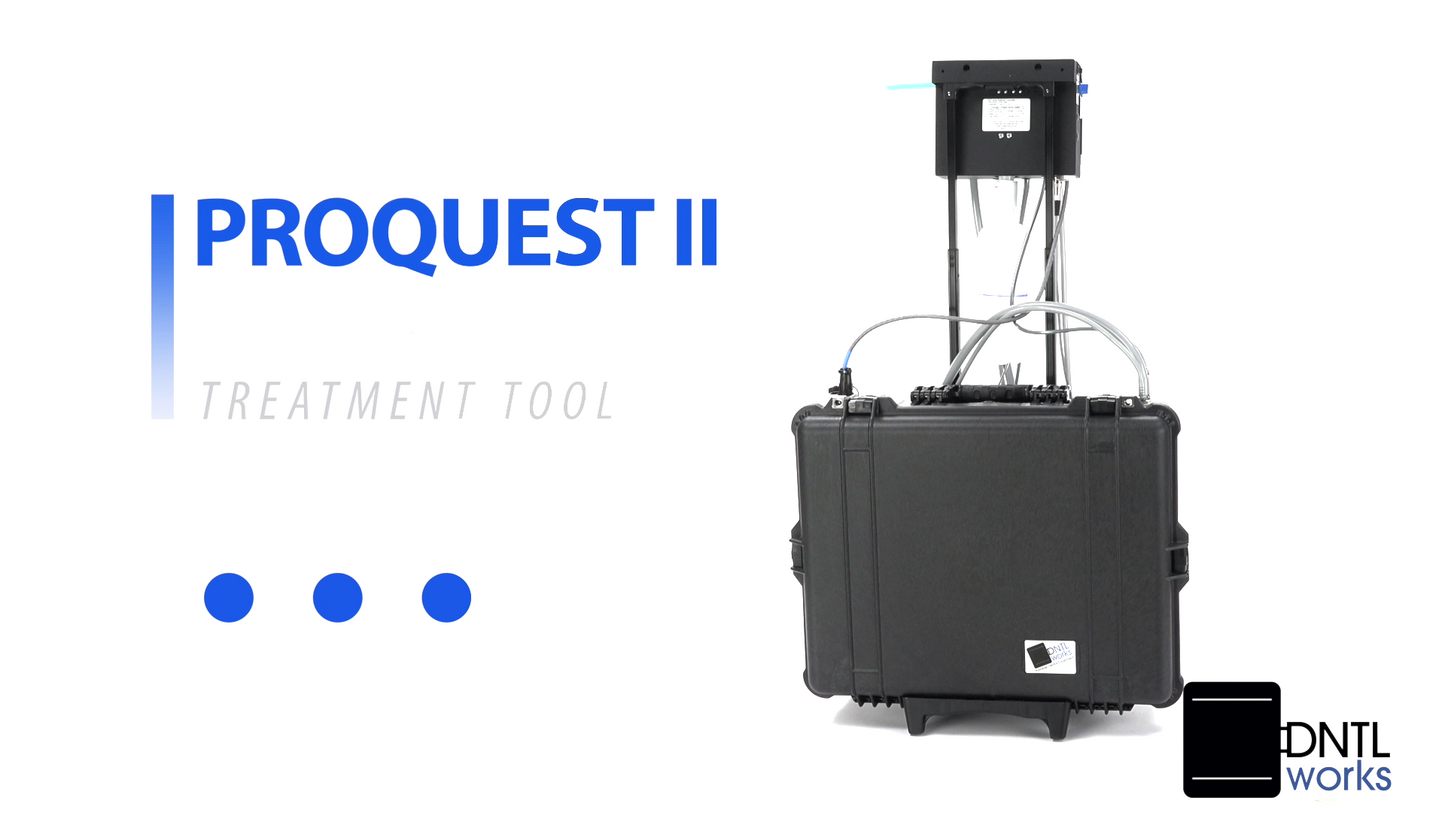

The ProQuest™ I and ProQuest™ II portable dental delivery systems from DNTLworks Equipment Corporation redefine the standard for powerful performance and self-contained portability.

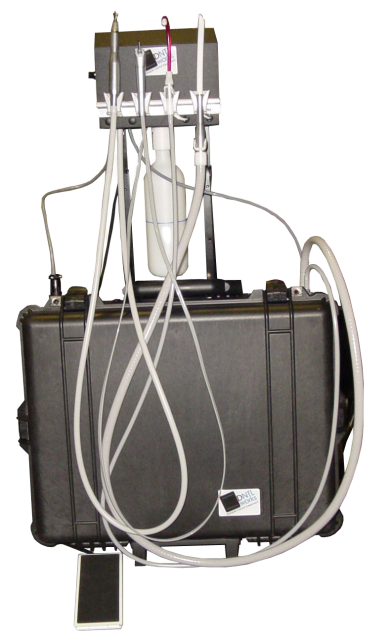

Configured in a single, lightweight carrying case with a top-mounted control box, the ProQuest is easy to use with quick assembly and disassembly.
This state-of-the-art delivery system includes a full-function electric handpiece with water and speed adjustments; a powerful and quiet oil-free vacuum motor with a dual hose design; a large waste container; internal water supply; air/water syringe; plus an oil-free compressor to pressurize the water source to the syringe and handpiece. Integrated fiber optics are available in ProQuest II.
A light curing wand and piezoelectric scaler are options for both systems.
The control box, vacuum tubing, and accessories are conveniently packed inside ProQuest’s impact resistant carrying case. The system incorporates built-in wheels and a retractable handle to facilitate transportation.
Combining the most powerful suction of any portable dental unit with full handpiece capability, the ProQuest Dental Delivery Unit is the ideal solution for on-the-go dentistry.
The lightweight, one-piece design includes a dual-hose operation (saliva ejector and HVE), a large waste container with automatic overflow shut-off, an internal water supply, an air-water syringe, and an impact-resistant case. These are just some of the features integrated into this exceptional self-contained unit.
The ProQuest is also equipped with built-in wheels and a retractable handle for easier transportation. Handpiece fiber optics, piezo-electric scalers, and light-curing wands are available as options.
Features
Features
Features

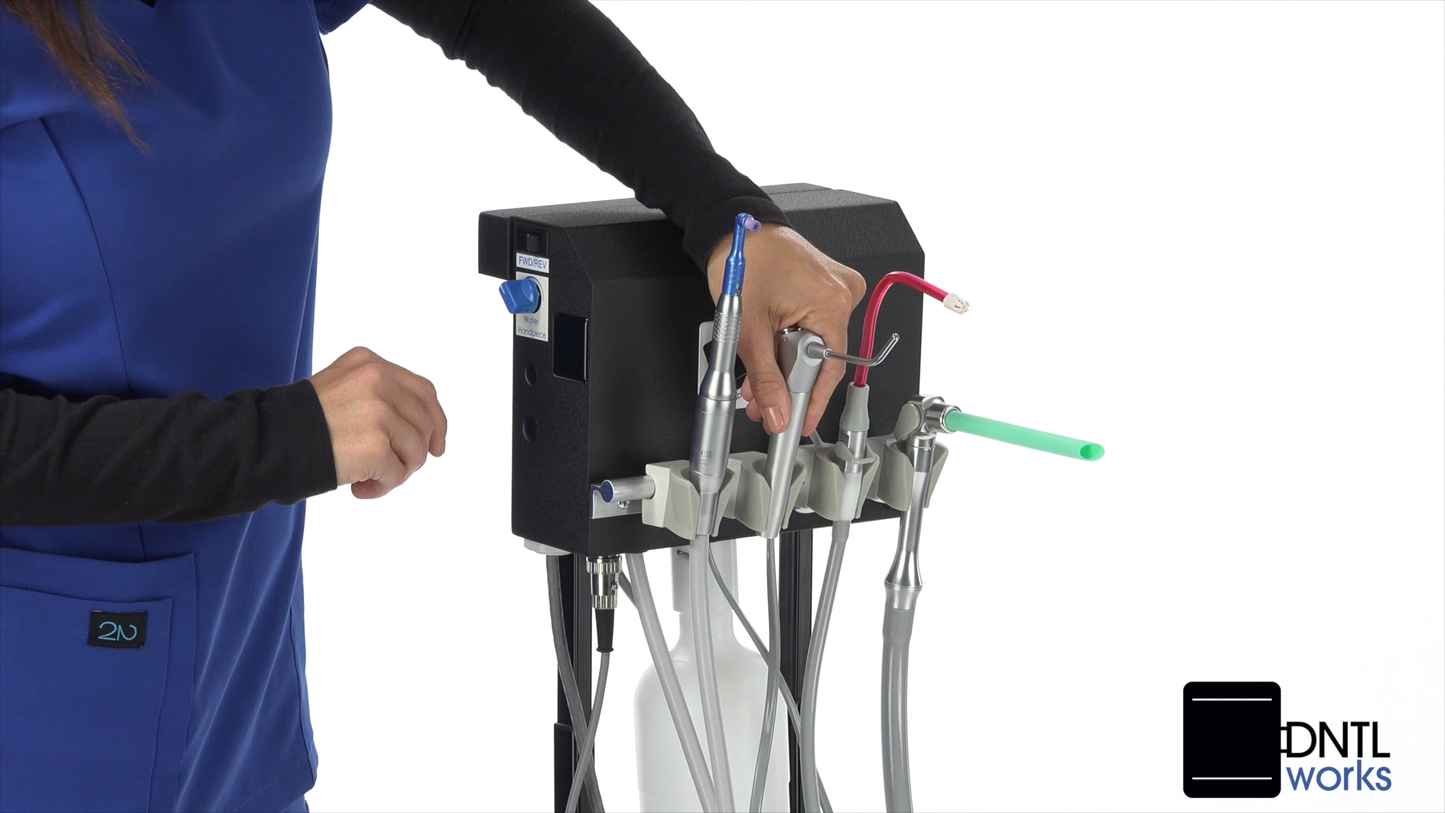

- Complete electric high-speed handpiece with water and speed adjustments
- Powerful, quiet vacuum pump with dual hoses for HVE and saliva ejector
- Integrated, non-retracting water source with air/water syringe for irrigating and drying
- Efficient mini-compressor for air/water syringe use

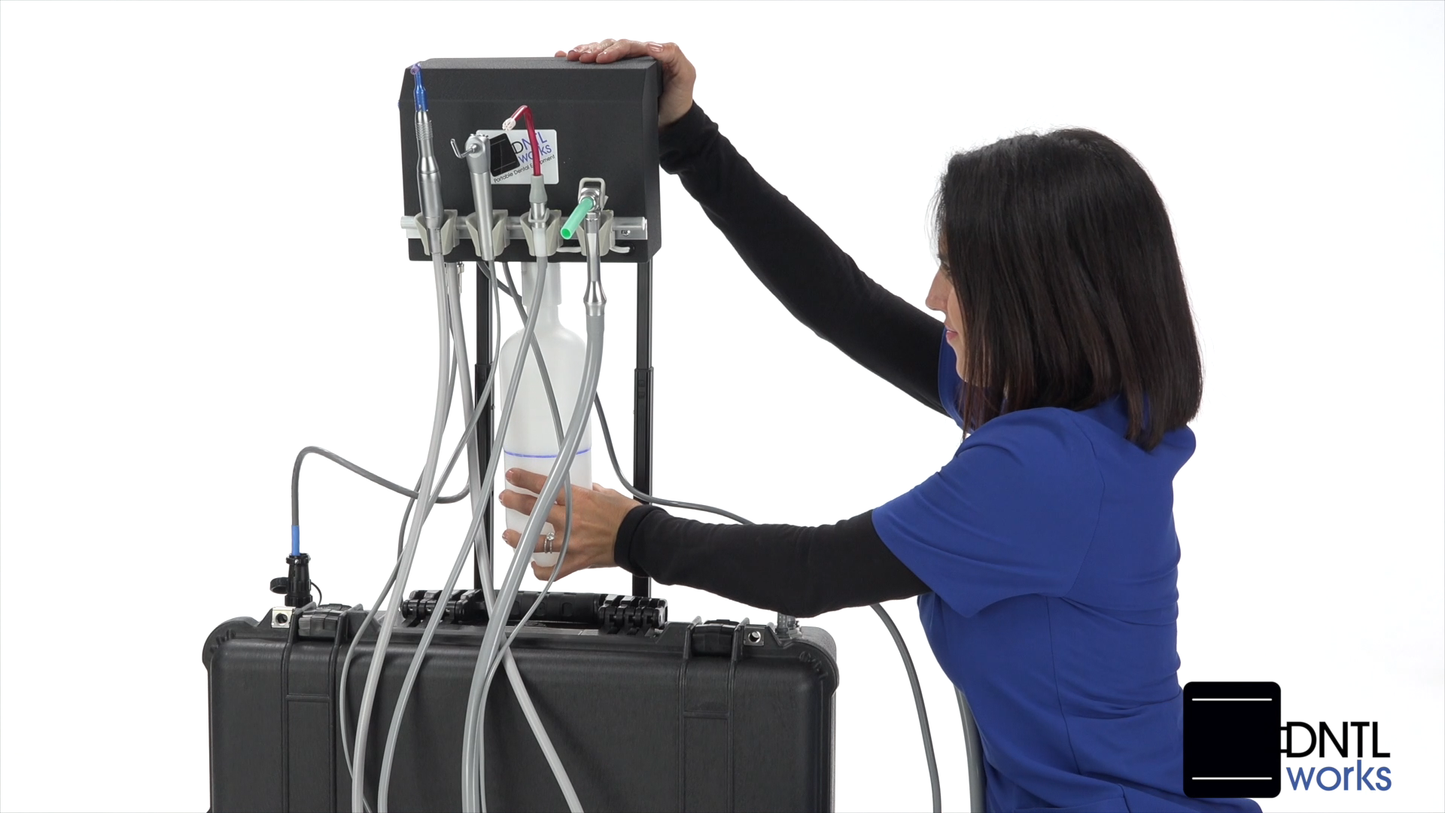

- Large waste container with automatic overflow shutoff
- Compact, Lightweight one-piece design
Additional Features
- Compact, one-piece design
- Electric high-speed handpiece with water and speed adjustments

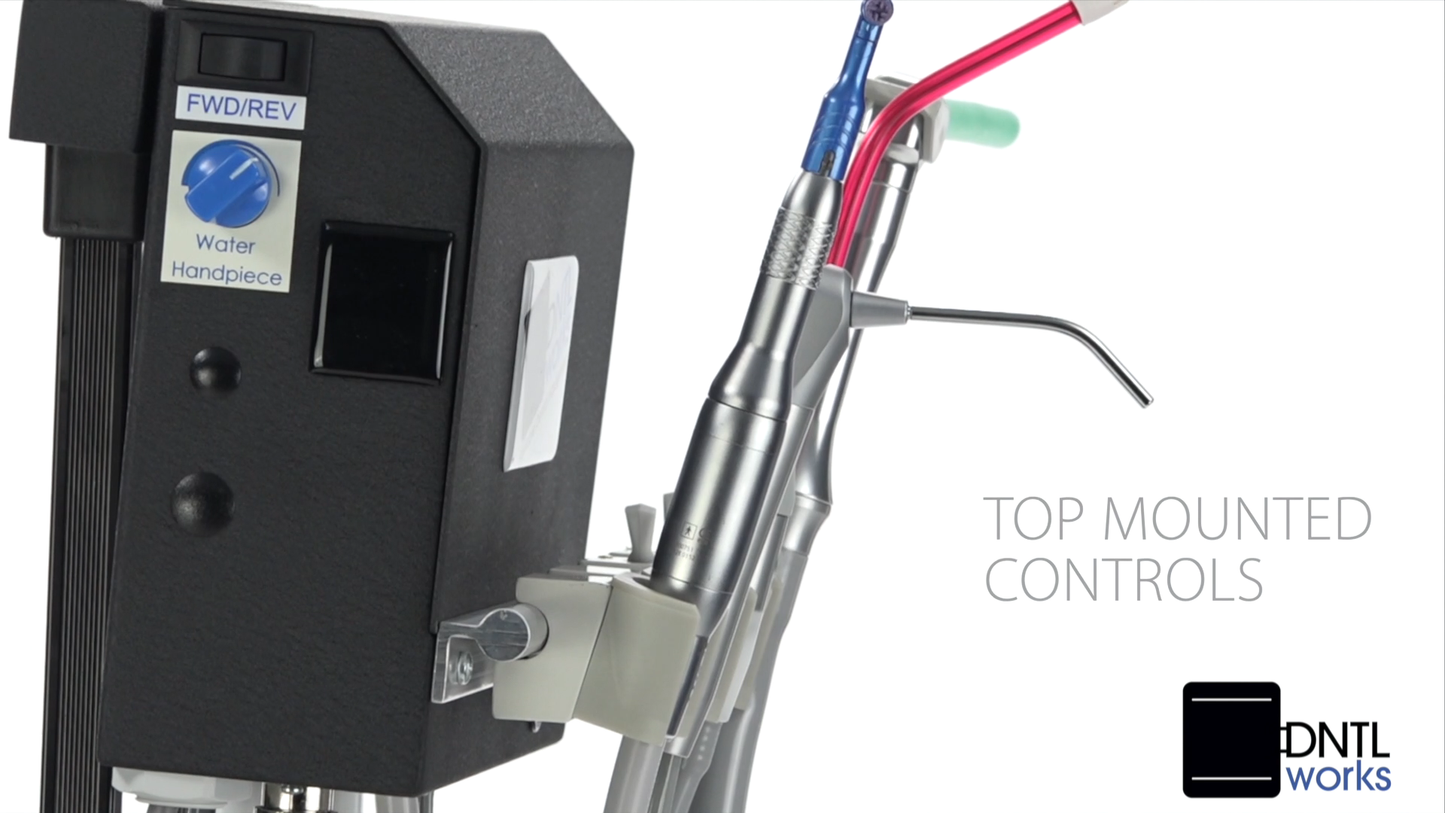

- Top-mounted control box for all unit functions
- Non-retracting water source with air/water syringe
- Impact-resistant case with built-in wheels and retractable handle

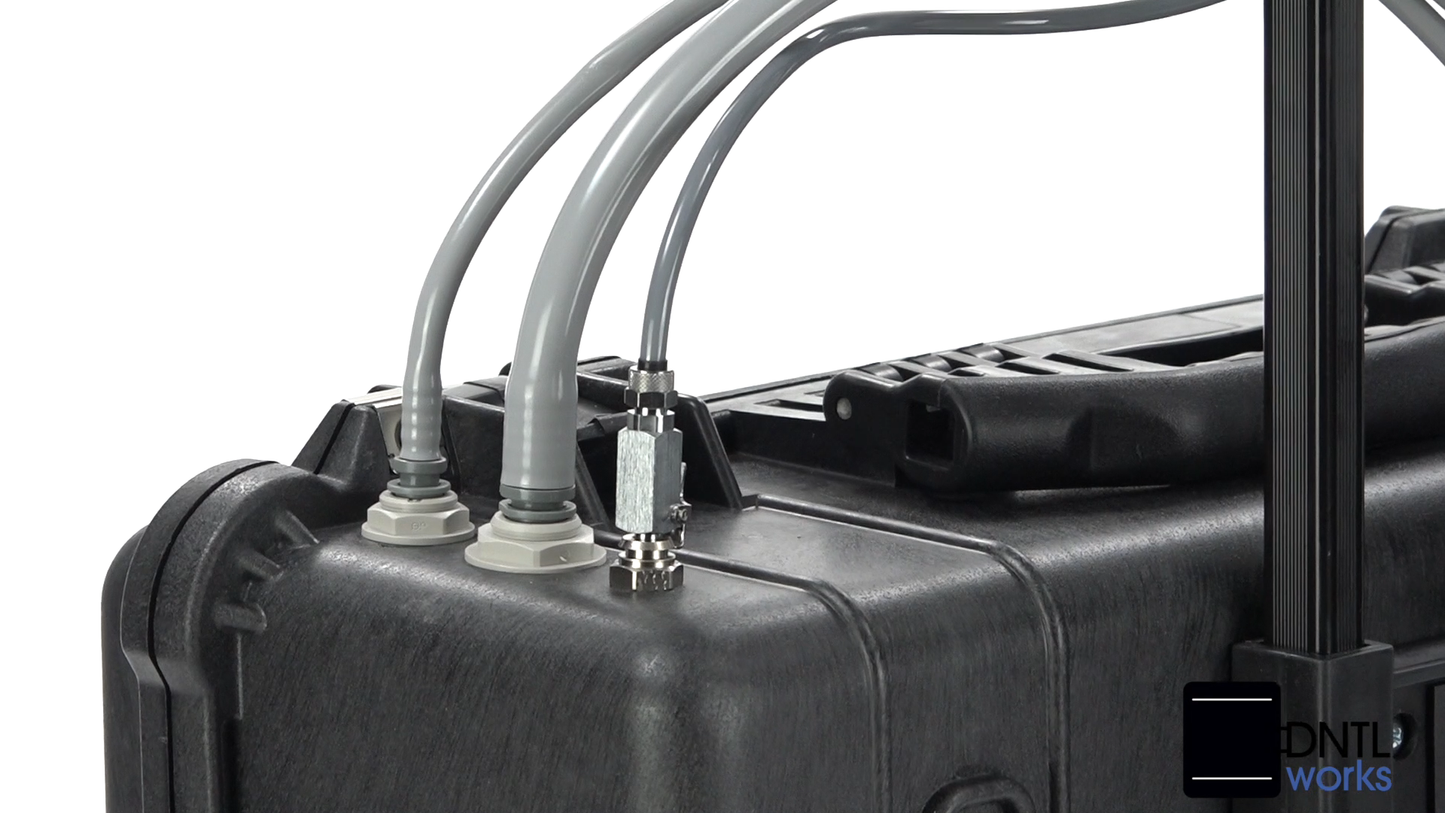

- A powerful vacuum pump with a dual hose design accommodates many brands of HVE and saliva ejector tips
- Handpiece fiber optics are standard in ProQuest II

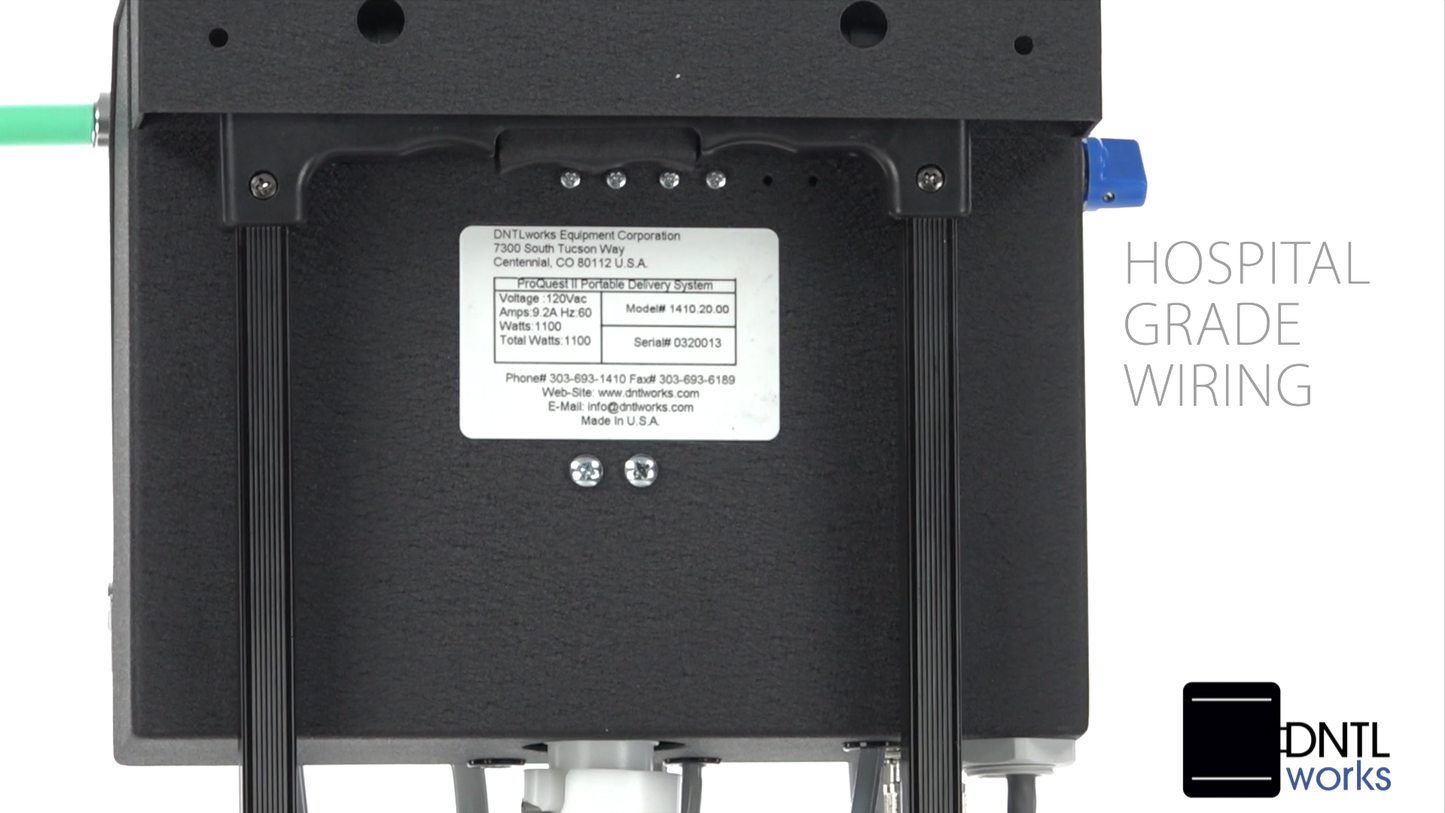

- Hospital-grade wiring with 15 amp circuit breaker protection
- Attached, is an ergonomic carrying handle
- Efficient mini-compressor for air/water syringe use
- Easy access through the side door
- The optional light-curing unit, and piezo-electric scaler
Specifications
Specifications
DIMENSIONS/WEIGHT
Length: 24.5” (62.2 cm)
Width: 10.0” (25.4 cm)
Height: 20.0” (50.8 cm)
Weight: 60 lbs. (27.3 kg)
VACUUM MOTOR
Power: 1/3 hp
Vacuum Strength: 12” HgVacuum Flow: 4.6 cfm
Waste Receptacle: 2 qt. (1.9 Liter)
Sound Level: 46 dB
Automatic Overflow Shutoff Valve
ELECTRICAL
Power Supply: 115Volts/60Hz 220 Volts/50Hz
Circuit Breaker: 15 amps
Hospital Grade Wiring: NEMA Type 5-15P Plug
HANDPIECE
Speed: 0 - 200,000 rpm
Power: 6 amps, 150 watts
ISO E-type attachment
Forward and reverse control

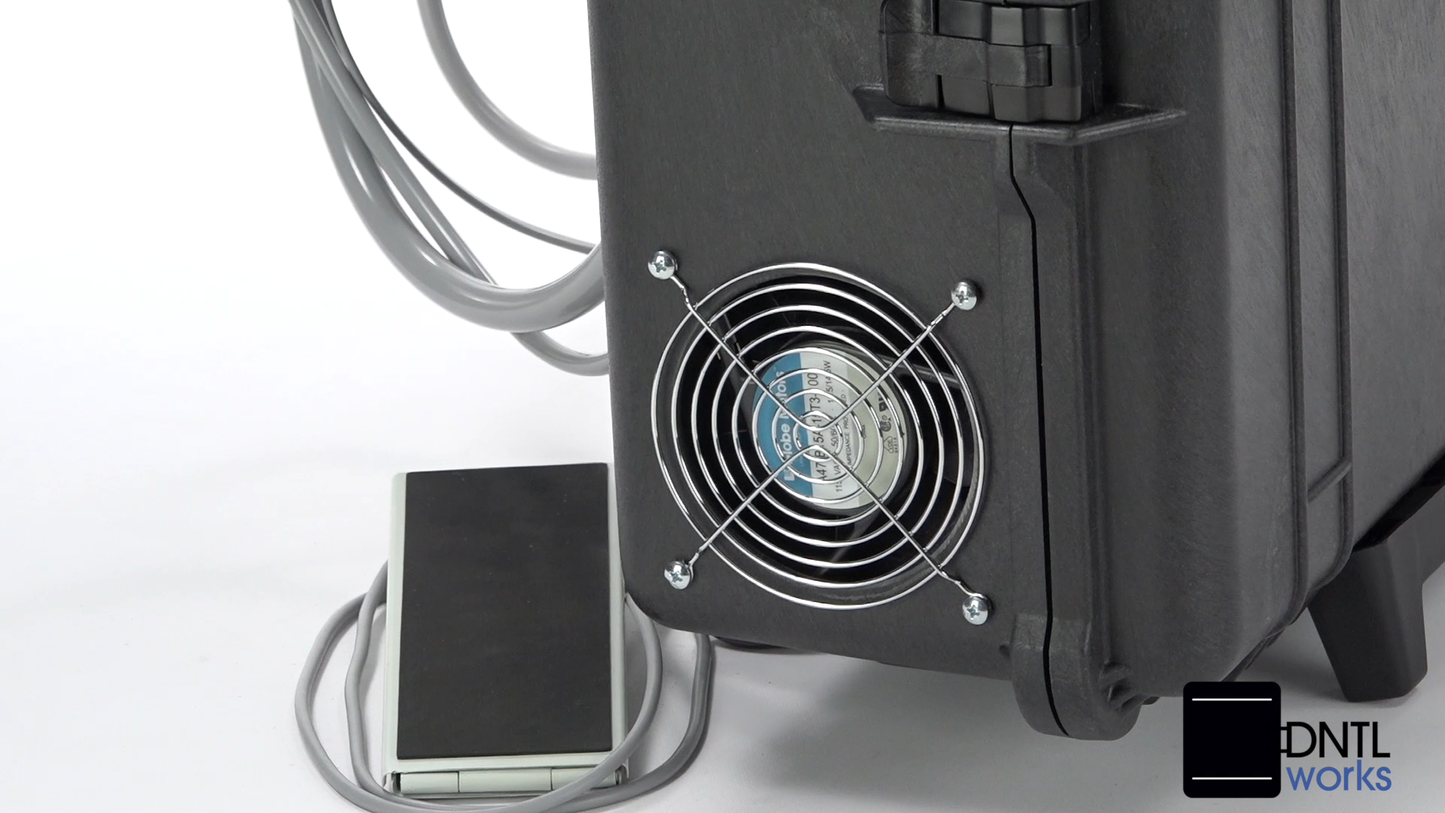

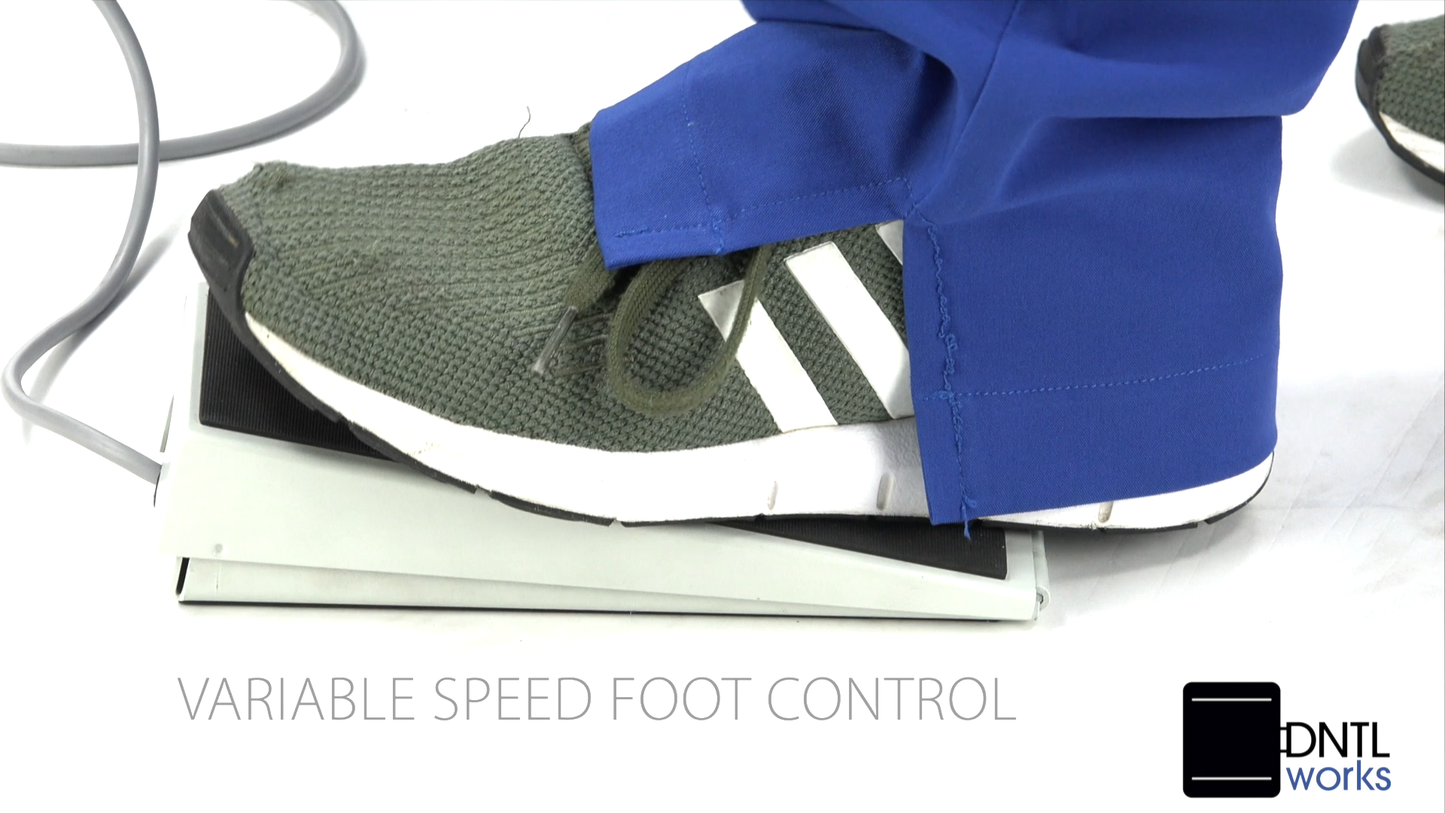

Variable speed foot control
Internal triple-port water spray
Share
Detailed information about ProQuest II Delivery System with Fiber Optics
What kind of maintenance is needed for ProQuest II Delivery System with Fiber Optics
Maintenance Schedule:
Between Patients: Purge lines to maintain hygiene and prevent cross-contamination.
Daily: Clean handpiece lines and air/water syringe.
Weekly: Inspect the water level and empty the waste container.
Monthly: Flush vacuum lines and perform a full inspection of the system.
What Dental procedures can be performed with ProQuest II Delivery System with Fiber Optics
Procedures Supported: The ProQuest II with Fiber Optics is suitable for a variety of procedures, including examinations, cleanings, sealants, restorative treatments, and minor surgical procedures, making it ideal for mobile and on-site dental care.
How much noise does ProQuest II Delivery System with Fiber Optics produce during operation?
Noise Level: The ProQuest II operates at around 62 dB, ensuring a quiet experience that is suitable for use in clinical and outreach settings.
What kind of suction strength does ProQuest II Delivery System with Fiber Optics have?
Suction Strength: The ProQuest II provides 18 inches Hg of suction, offering powerful performance suitable for high-volume evacuation and saliva ejection in portable dental setups.
