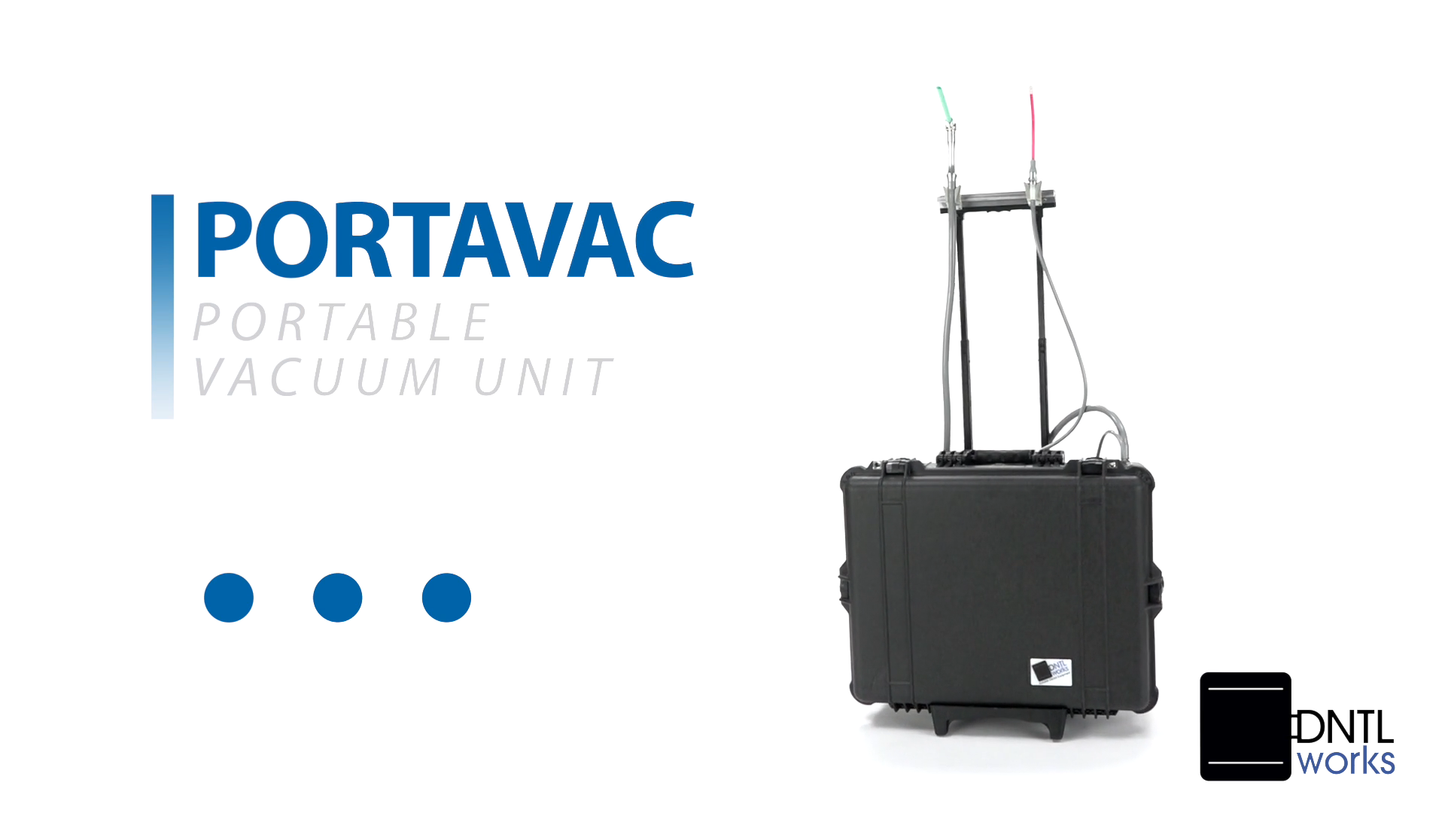

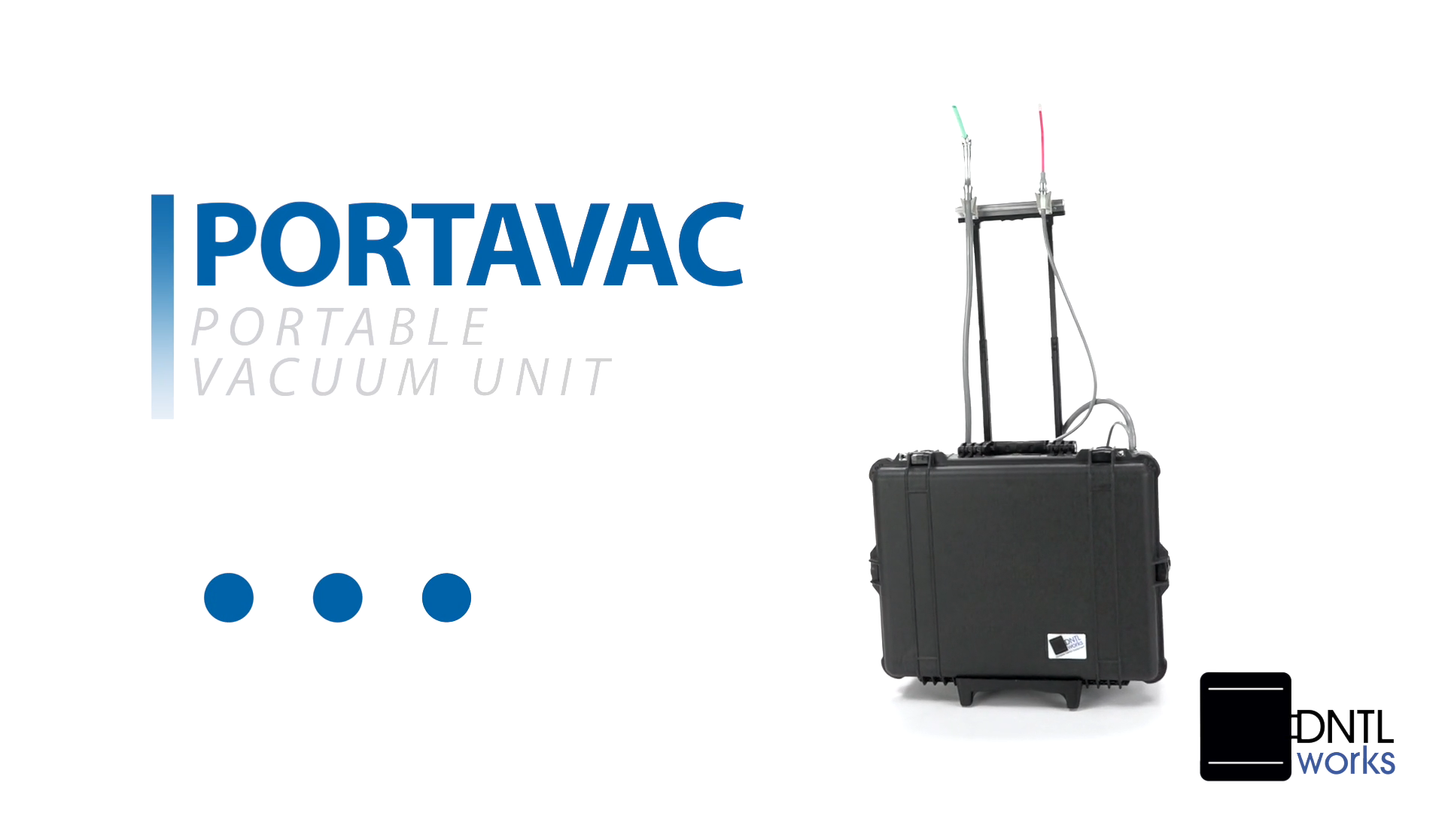

PortaVac Portable Vacuum Unit for Field Use (120 V) ⅓ HP

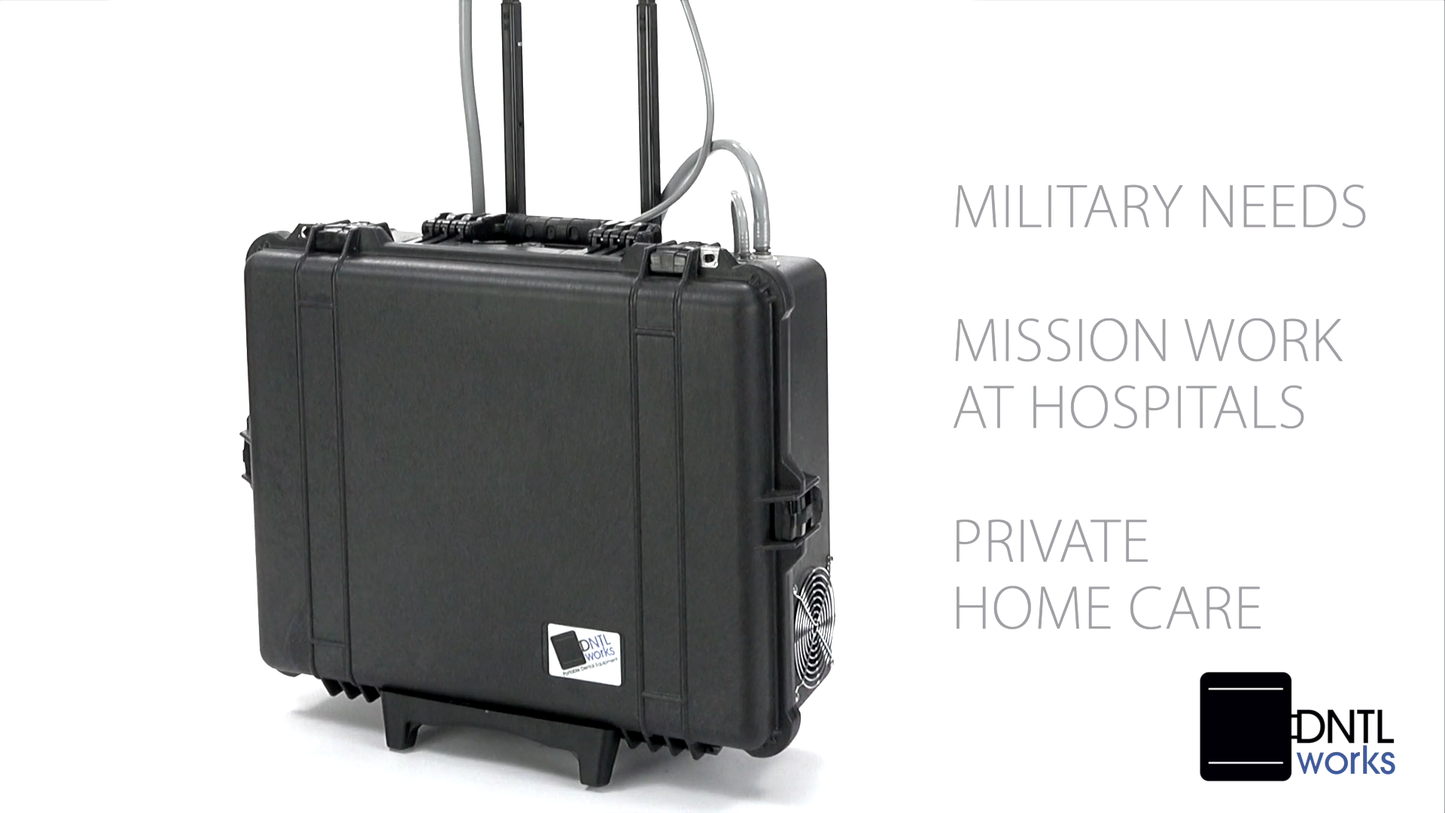

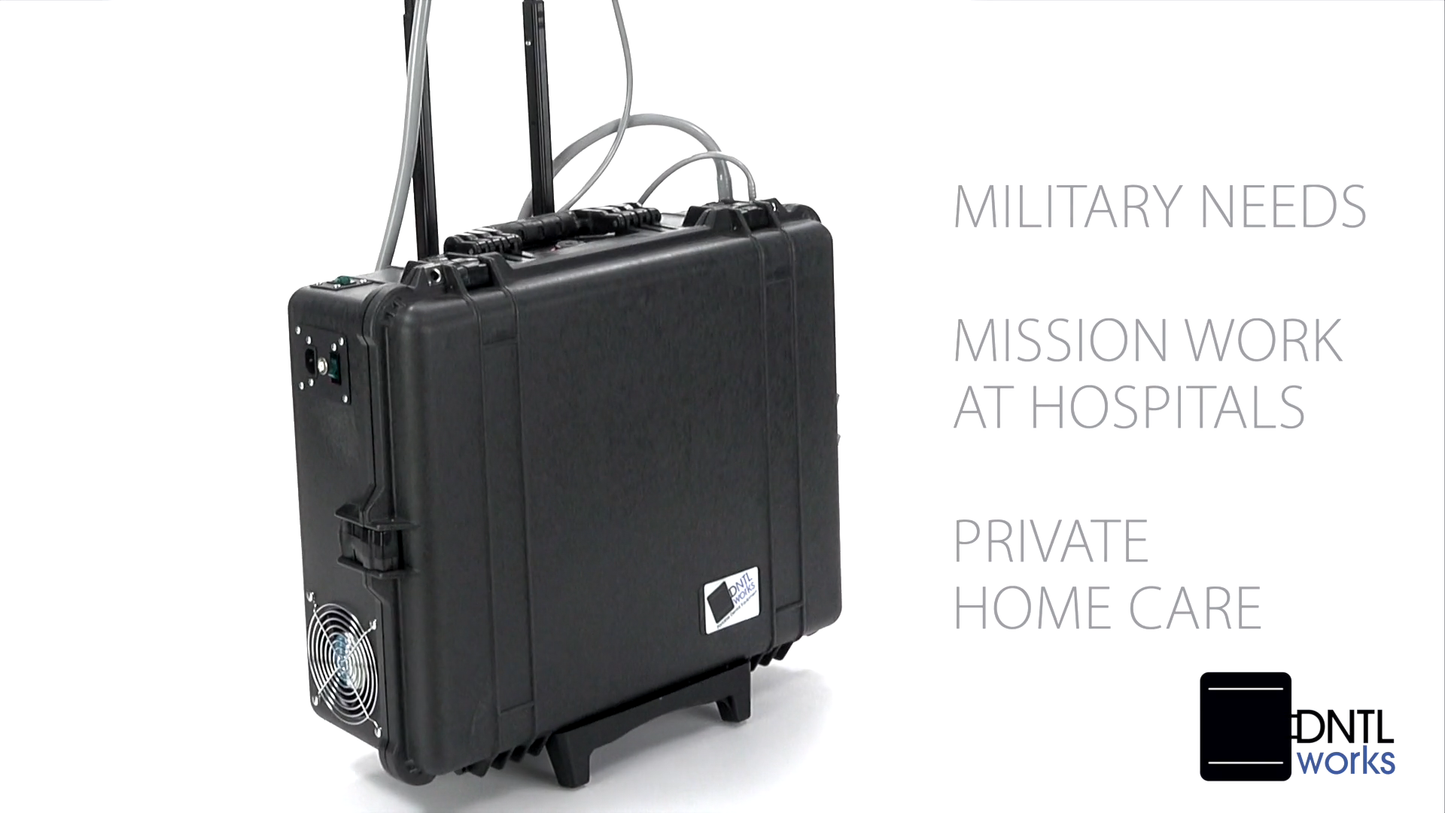

The PortaVac is designed for rugged transport and is ideal for missionary work, hospitals, clinics, private home care, nursing homes, the military, and many more field applications.

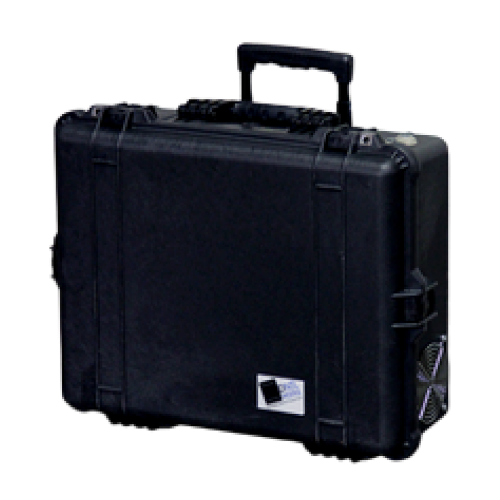

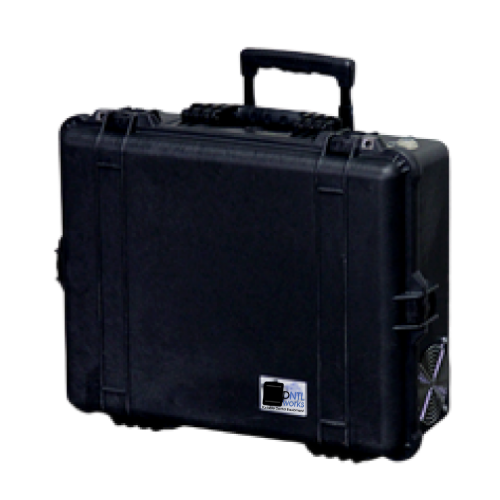

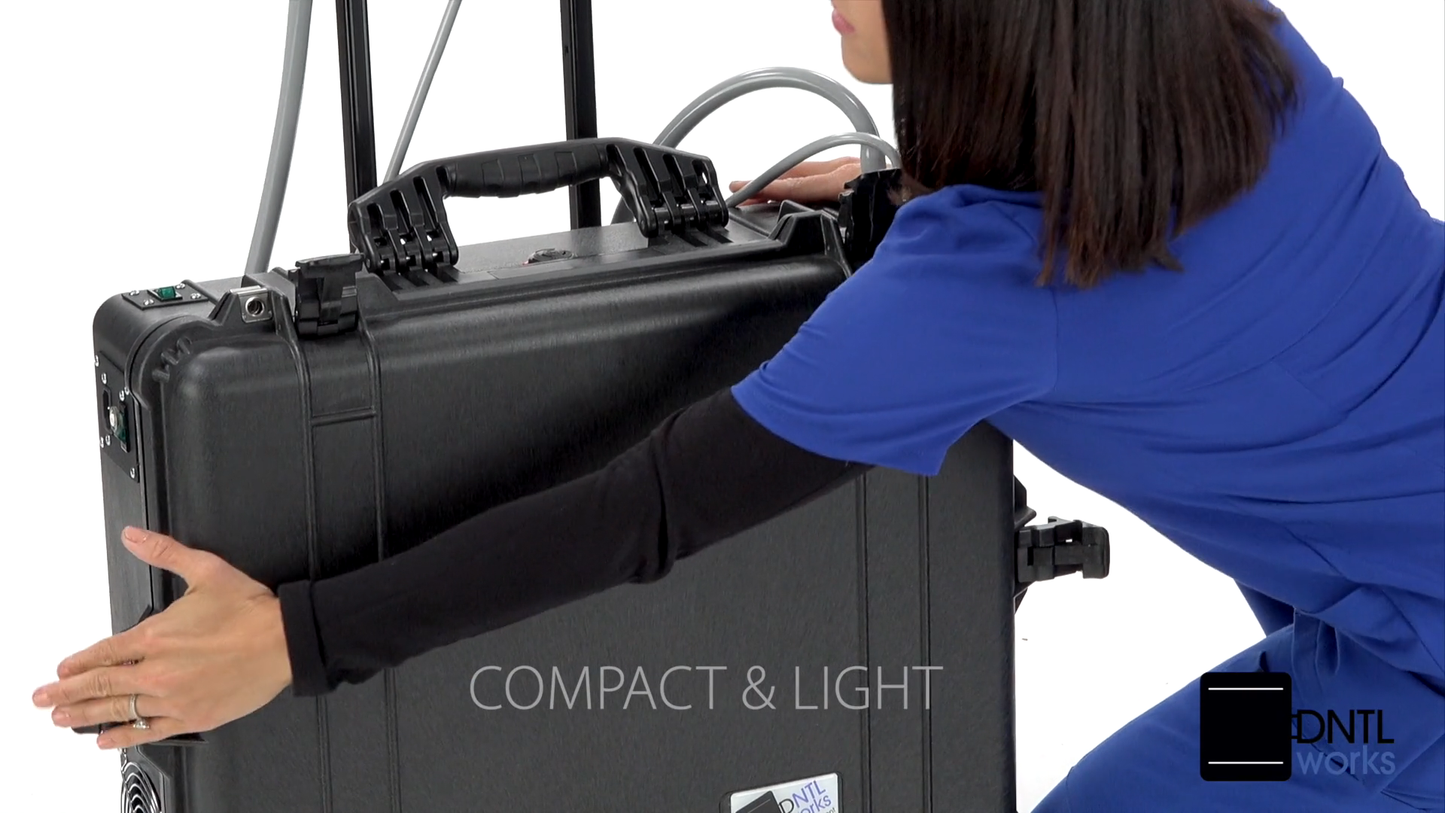

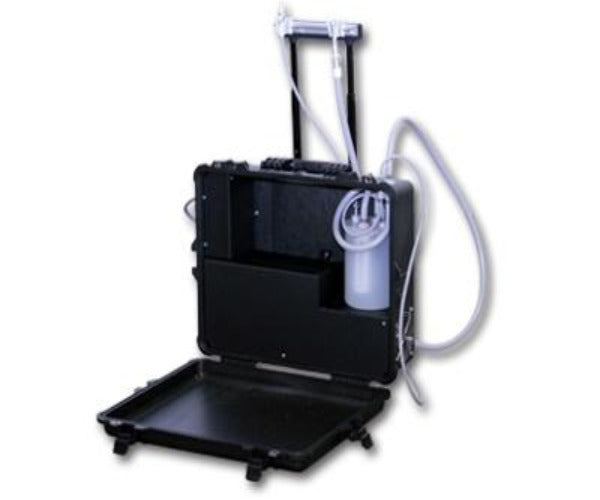

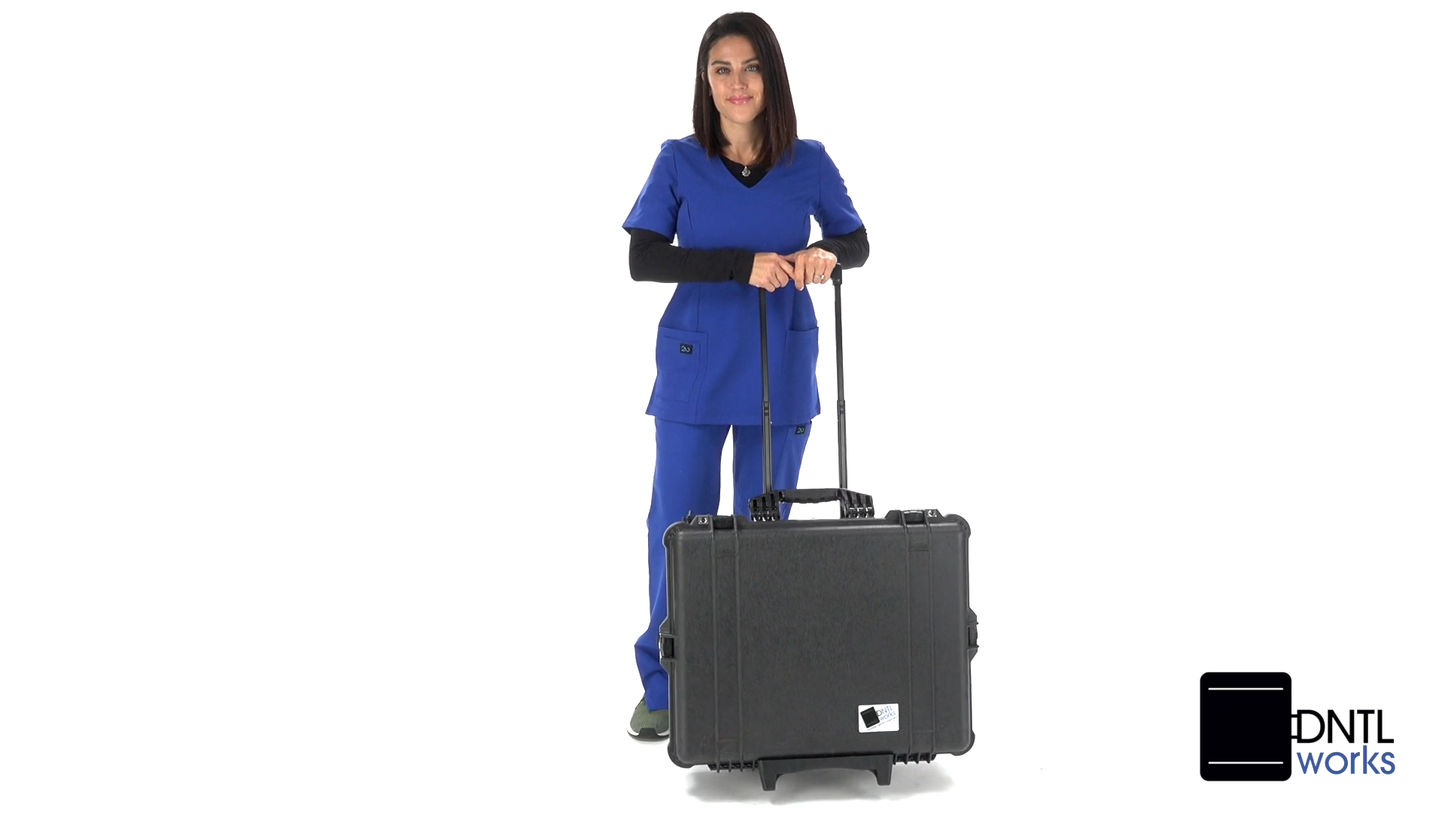

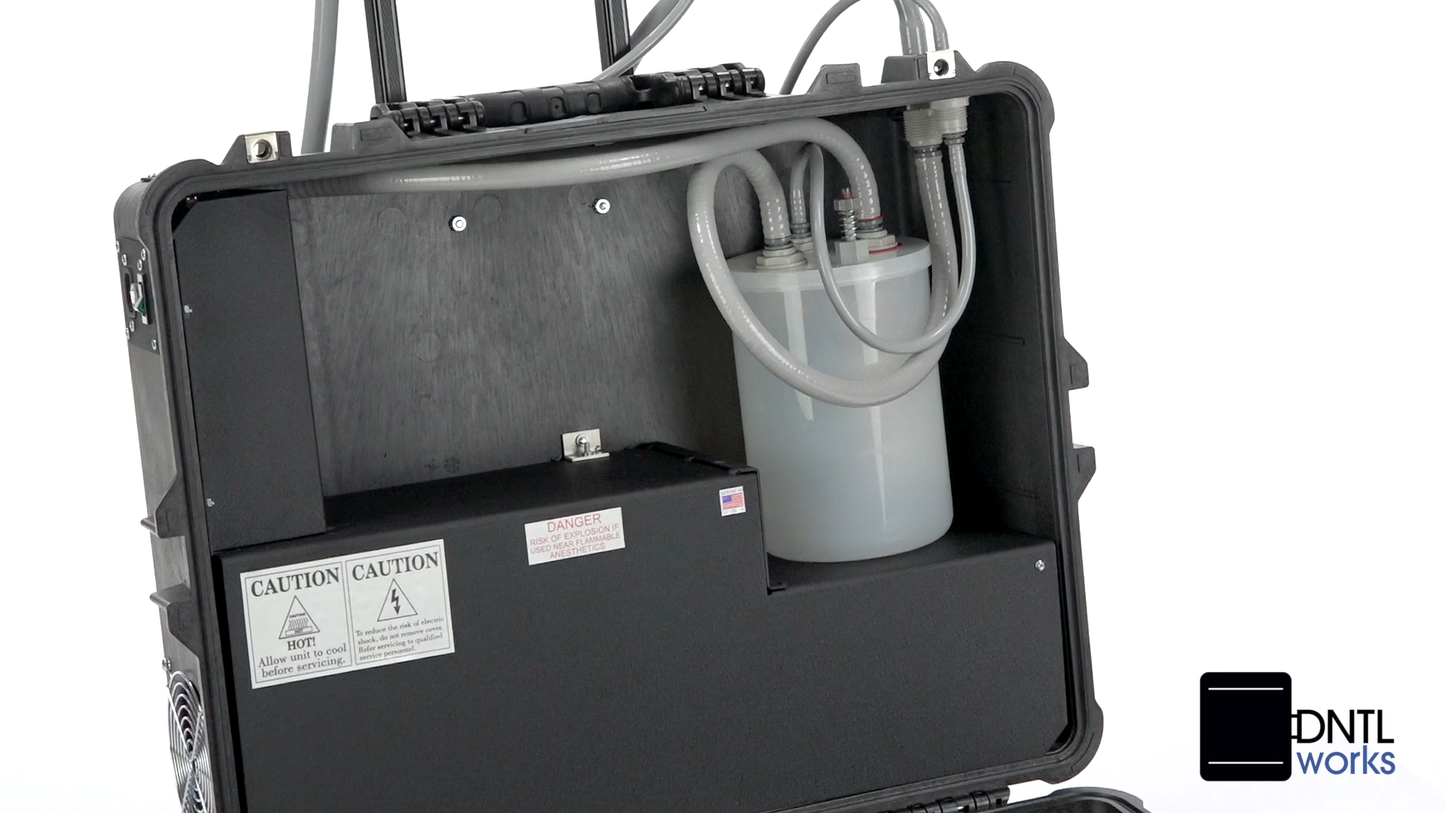

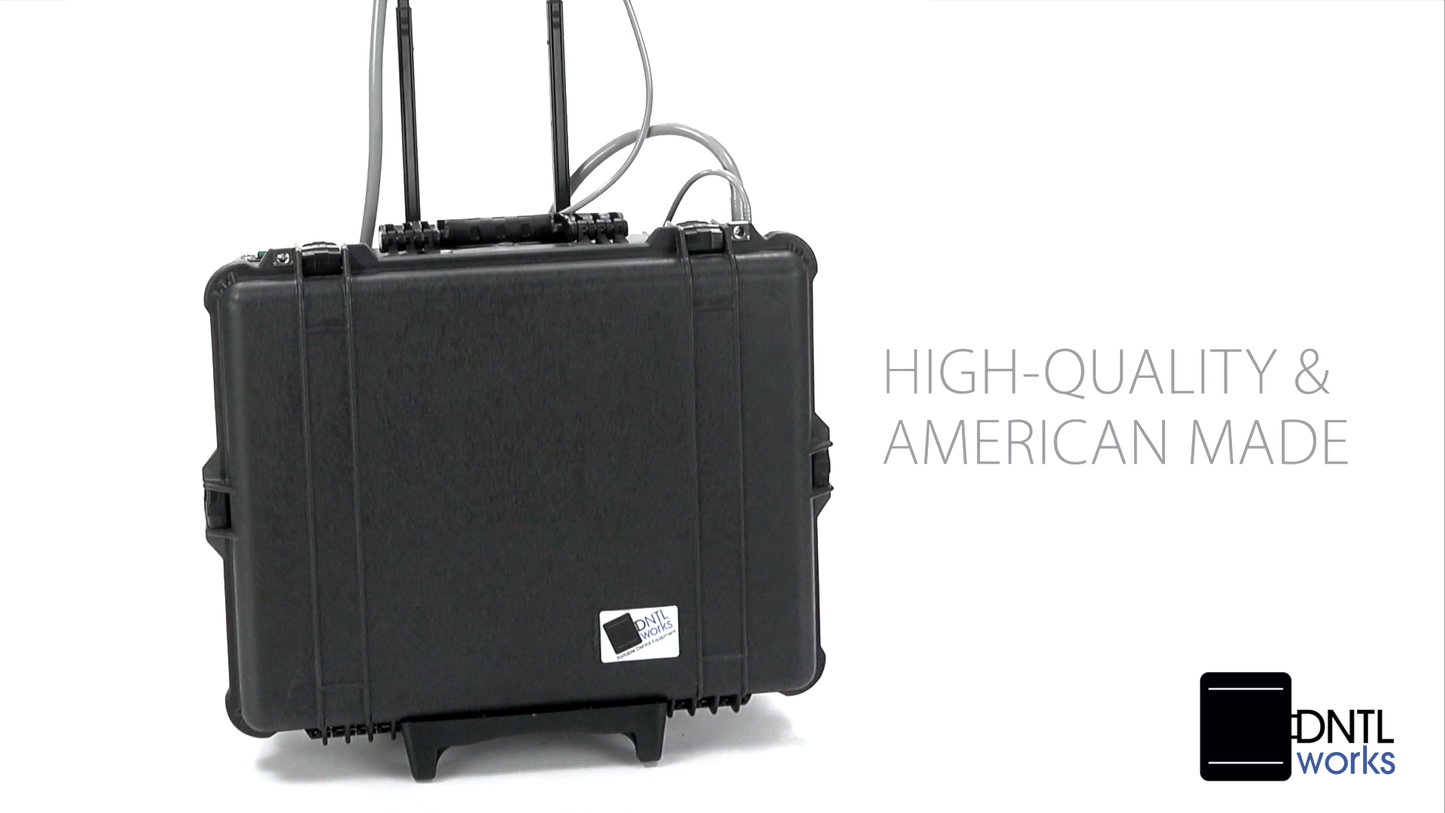

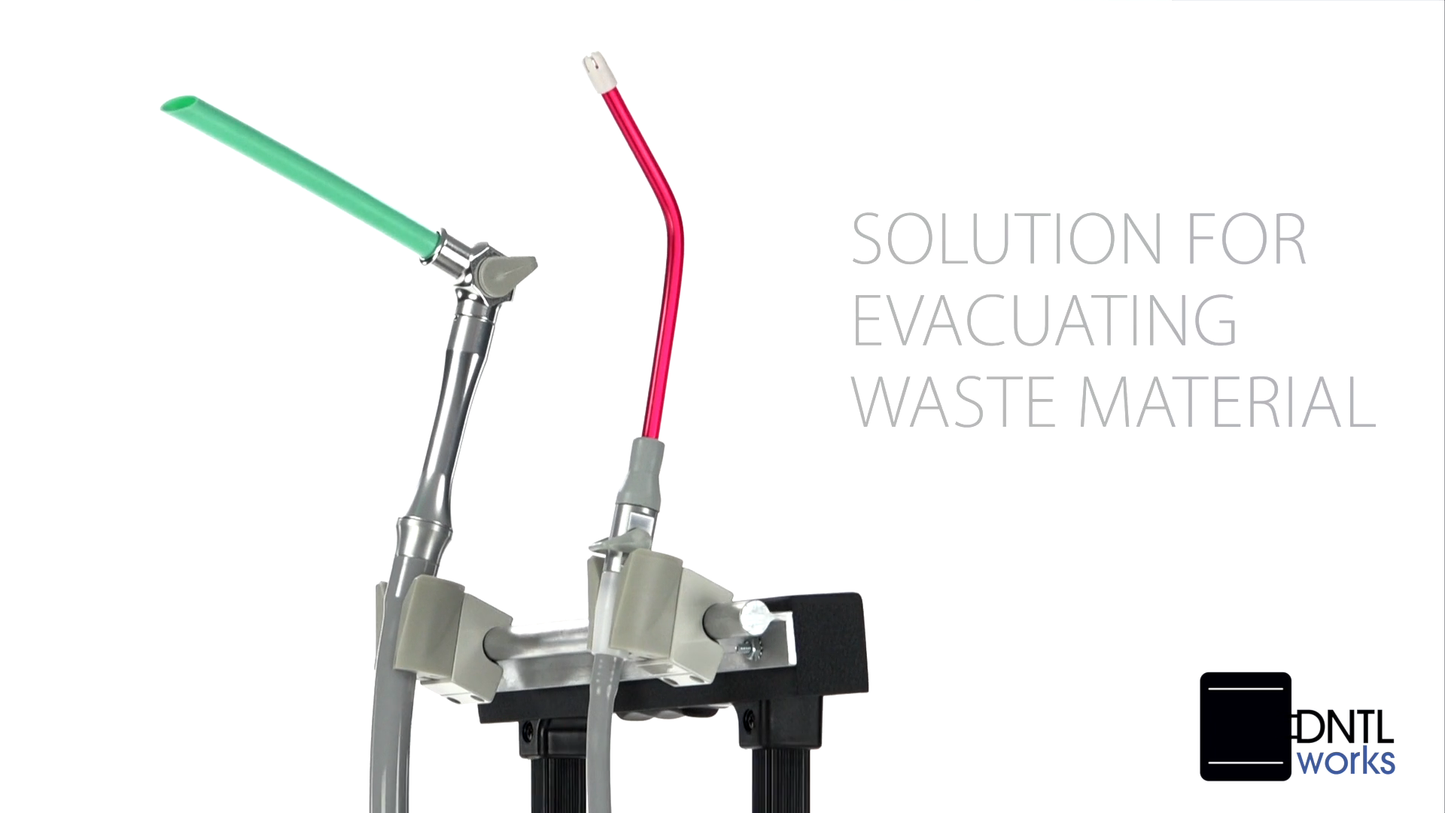

The PortaVac provides dental professionals with a powerful, quiet, and portable solution for evacuating waste material during dental procedures. Features include a 1/3 HP oil-free vacuum pump, dual hose design (saliva ejector and HVE), and a large waste container with automatic shutoff. Its lightweight, impact-resistant case and ergonomic carrying handle enable easy transportation.

In a world where portability is sometimes necessary, effective dental waste handling is essential, yet increasingly difficult.  Asepsis concerns mandate proper waste collection and disposal, plus adequate power to aspirate all types of oral fluids and solids.

The PortaVac from DNTLworks Equipment Corporation provides powerful suction capability in a compact, lightweight carrying case.

Specifications
DIMENSIONS/WEIGHT
Length:                              24”  (60.9 cm)
Width:                                10“ (25.4 cm)
Height:                               21” (53.3 cm)
Weight:                              46 lbs.  (20.9 kg)

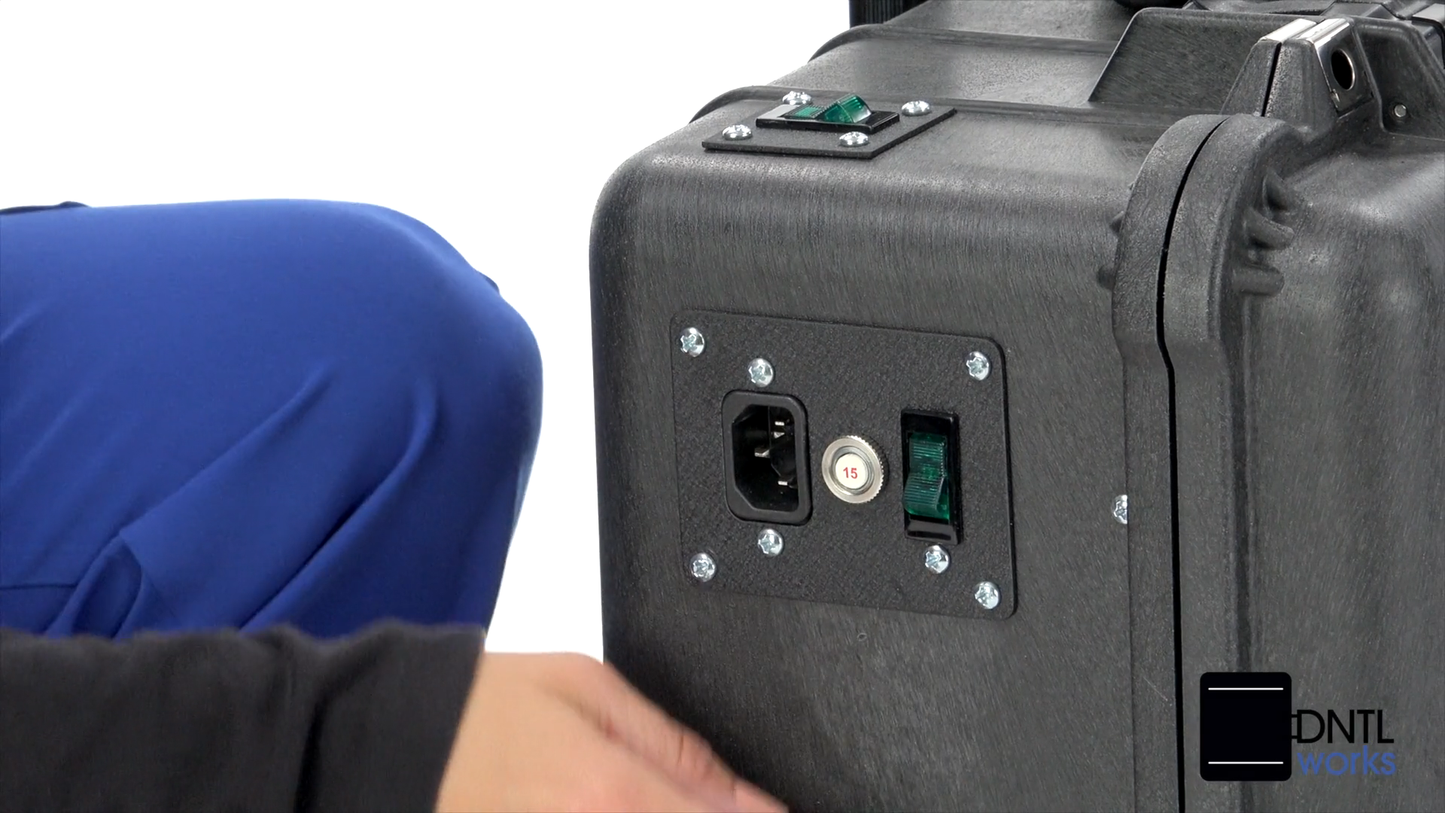

Electrical System
Voltage:                            115 Volts / 60Hz
220 Volts / 50Hz
Circuit Breaker:               15 amps
Hospital Grade Wiring:   NEMA Type
5-15 Plug

Vacuum System
Horsepower:                    1/3 hp
Operating Pressure:       12" Hg
Flow Rate:                         4.6 scfm

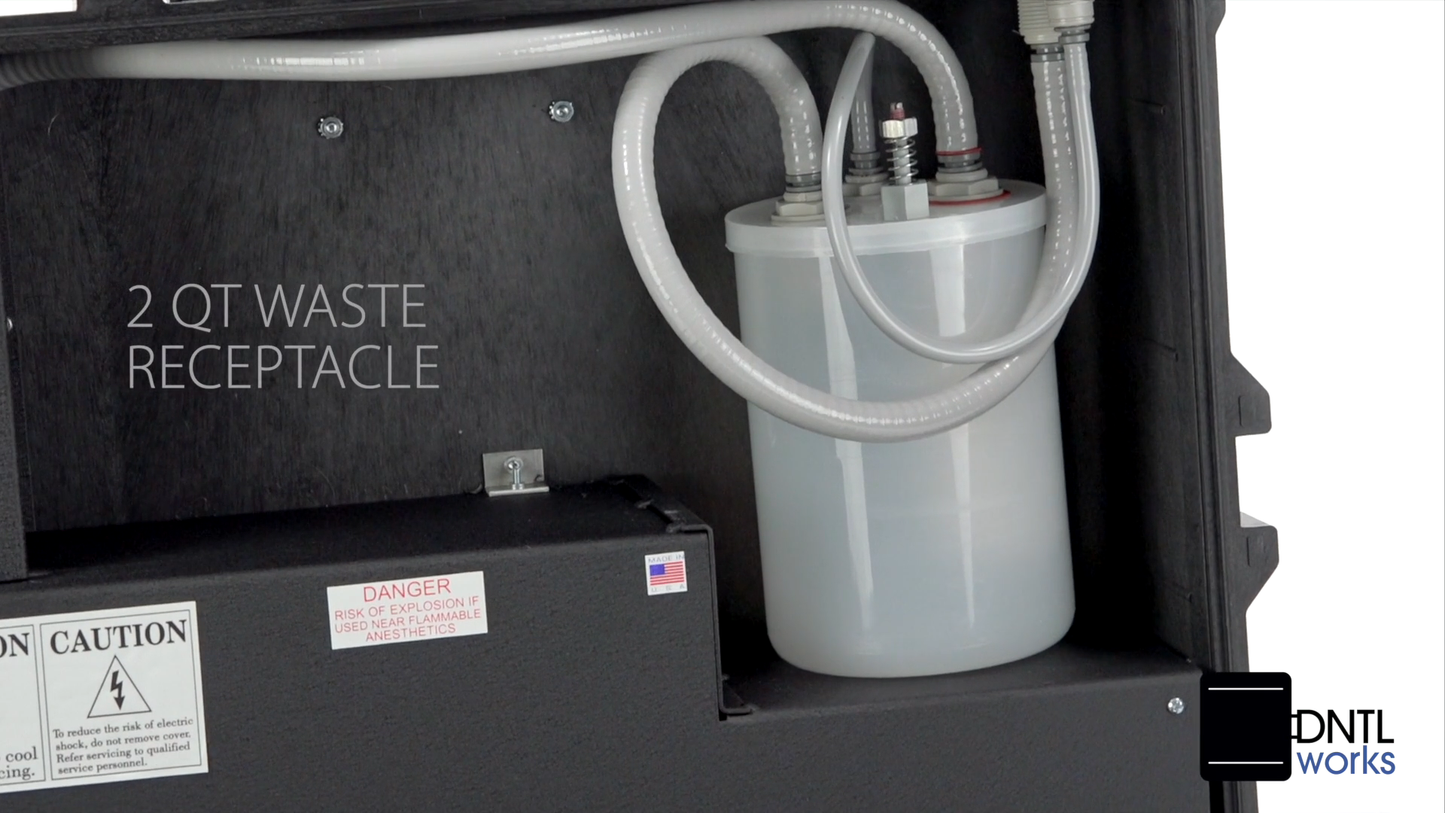

Waste Receptacle:          2 qt (1.9 Liters)
Sound Level:                    46dB
Automatic System

110 V Part # 3010

220 V Part # 3015
