ProCart I

ProCart I

2600

$10,918.00 USD
$12,046.00 USD $10,918.00 USD
Sale Sold out
Shipping calculated at checkout.
Title

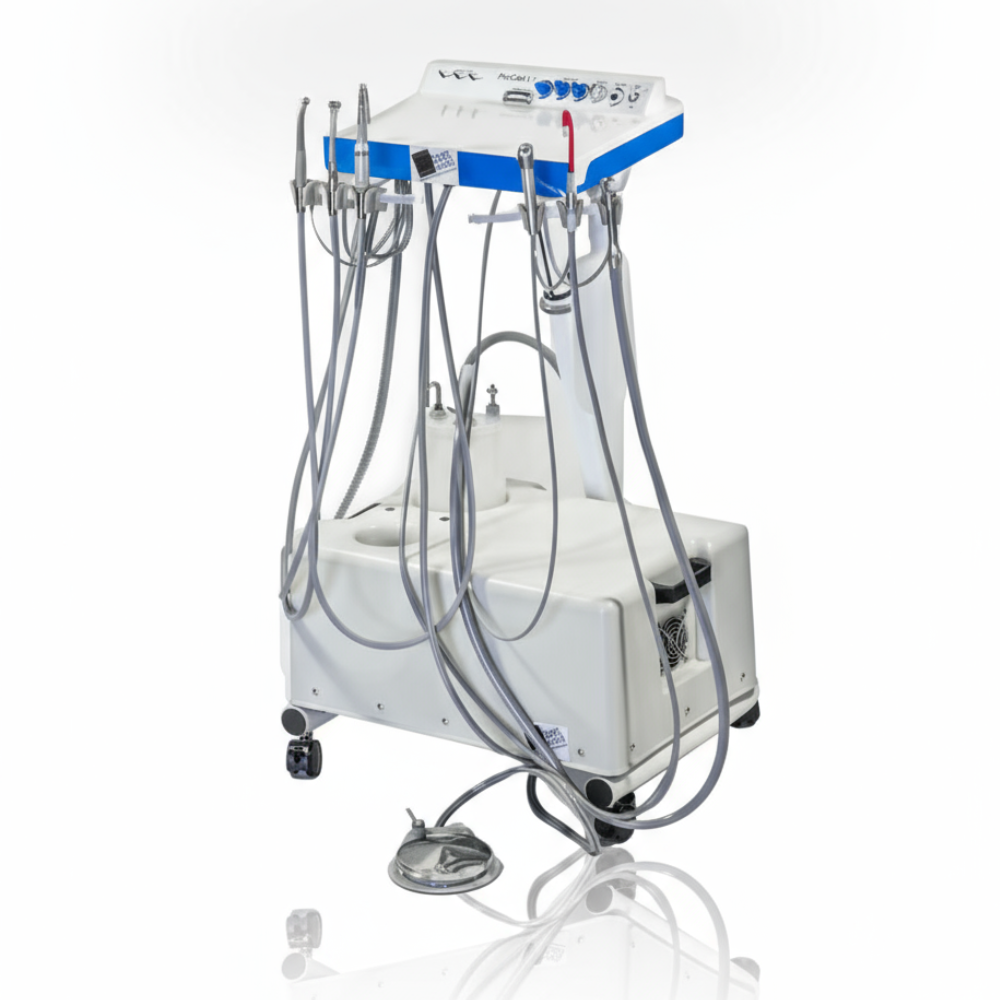

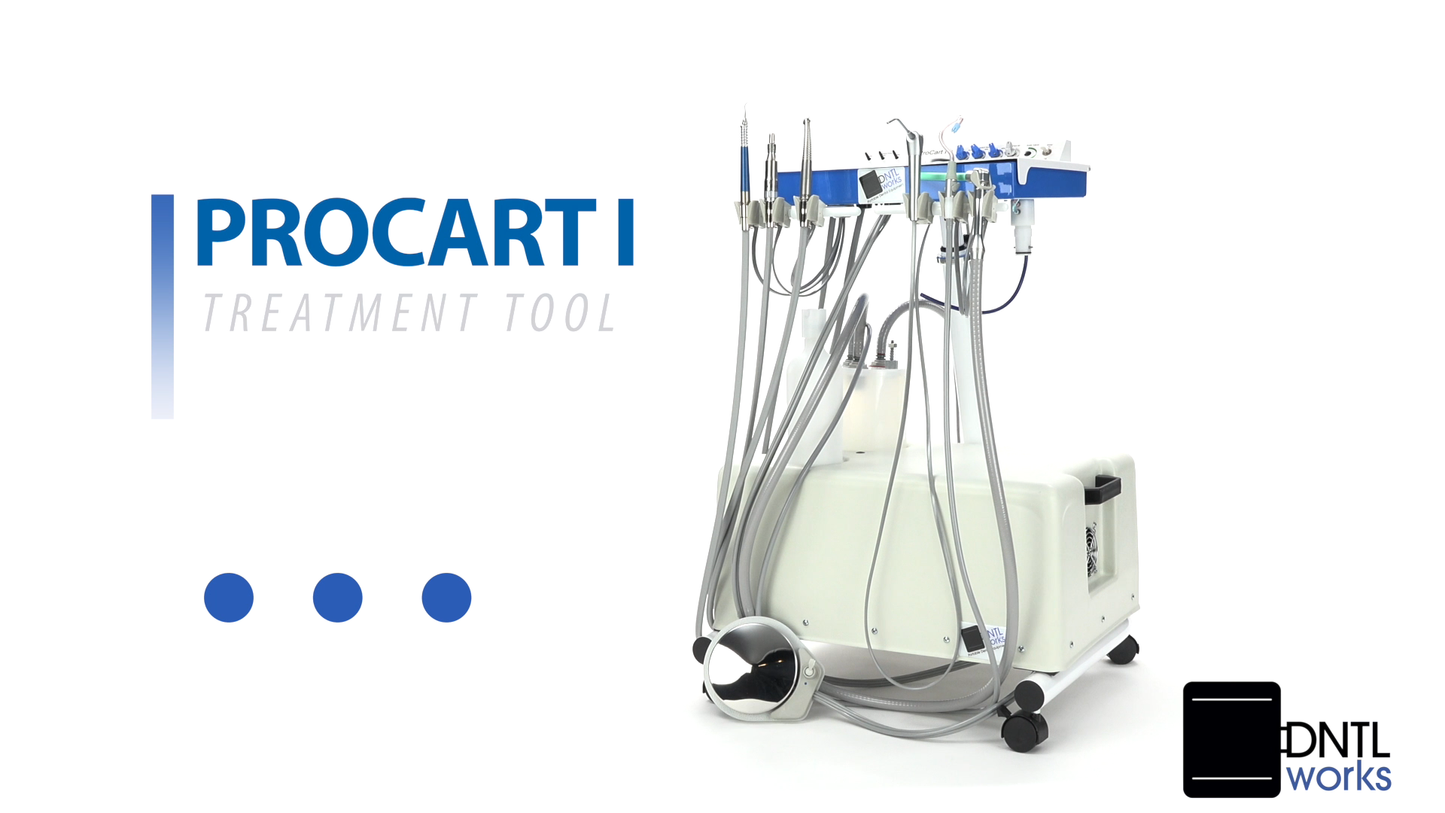

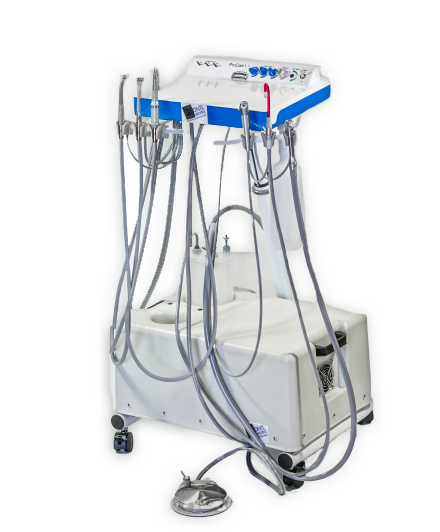

The ProCart™ I delivers powerful performance in a portable, self-contained system designed for the unique demands of today’s dental professionals. With three handpiece lines—featuring automatic holder activation—and adjustable air and water controls, the ProCart I provides a highly customizable and efficient treatment solution.

Key Features

  • Enhanced Performance: Equipped with a built-in quiet air compressor, a separate vacuum pump (supporting both saliva ejector and HVE), and an internal water supply, the ProCart I is ready to support comprehensive dental procedures.
  • Customizable Upgrades: Increase versatility with optional add-ons like a piezo-electric scaler, fiber optics, and curing light.
  • Efficient Waste Management: Includes a large-capacity waste container with an overflow shut-off, supporting safe, continuous use.
  • Portable & Durable Design: Smooth-rolling casters enable easy mobility, and an optional carrying case set provides convenient transport and storage.

Ideal Applications

Perfect for school-based sealant programs, hospitals, remote or mobile dental setups, humanitarian work, and military or assisted-living facility use, the ProCart I is a reliable, adaptable solution. Its lightweight frame is quick to set up and disassemble, making it an excellent choice for dental professionals on the move.

Features

  • Oil-free 1/3 hp compressor

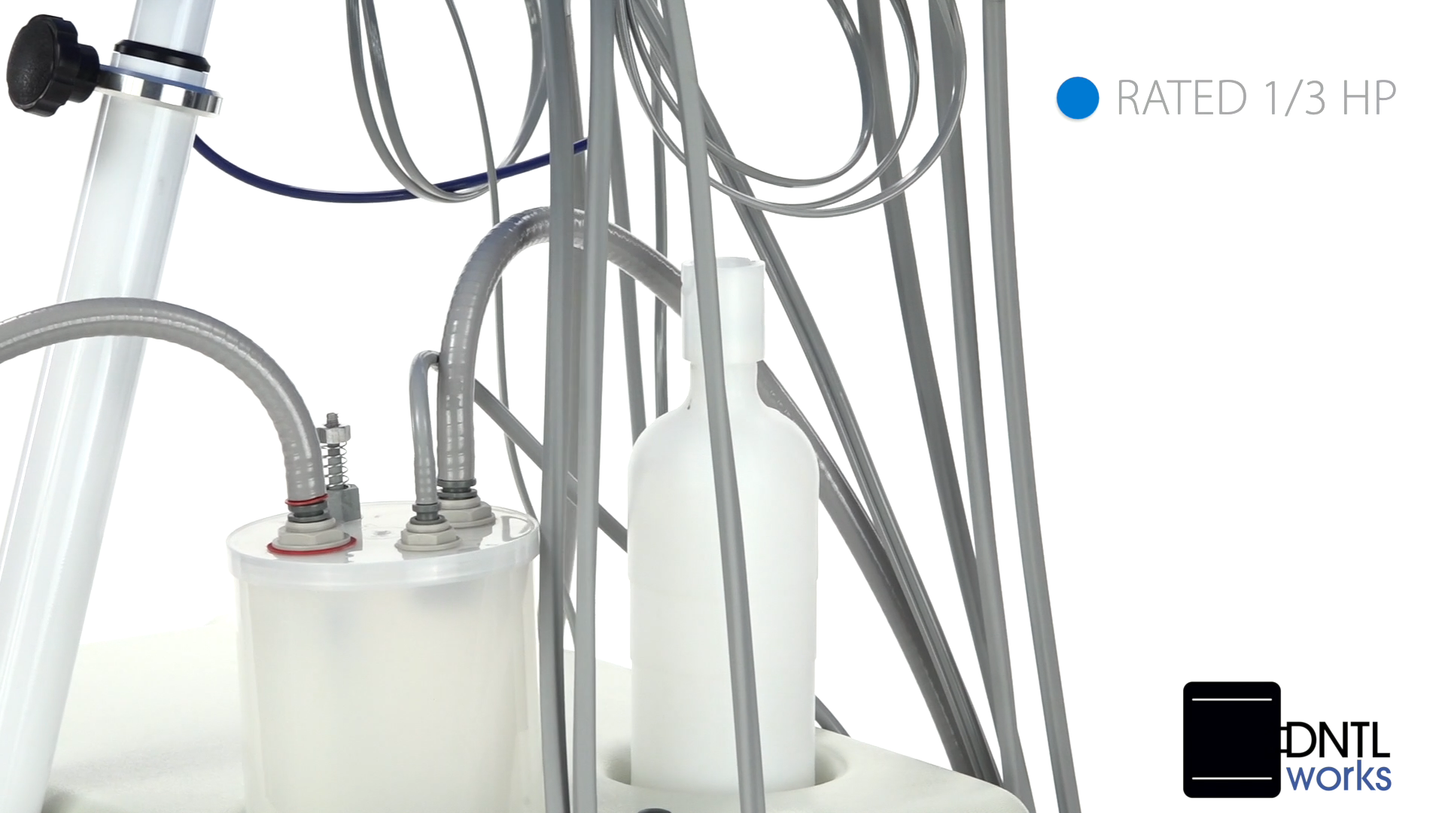

  • Strong 1/3 hp vacuum motor

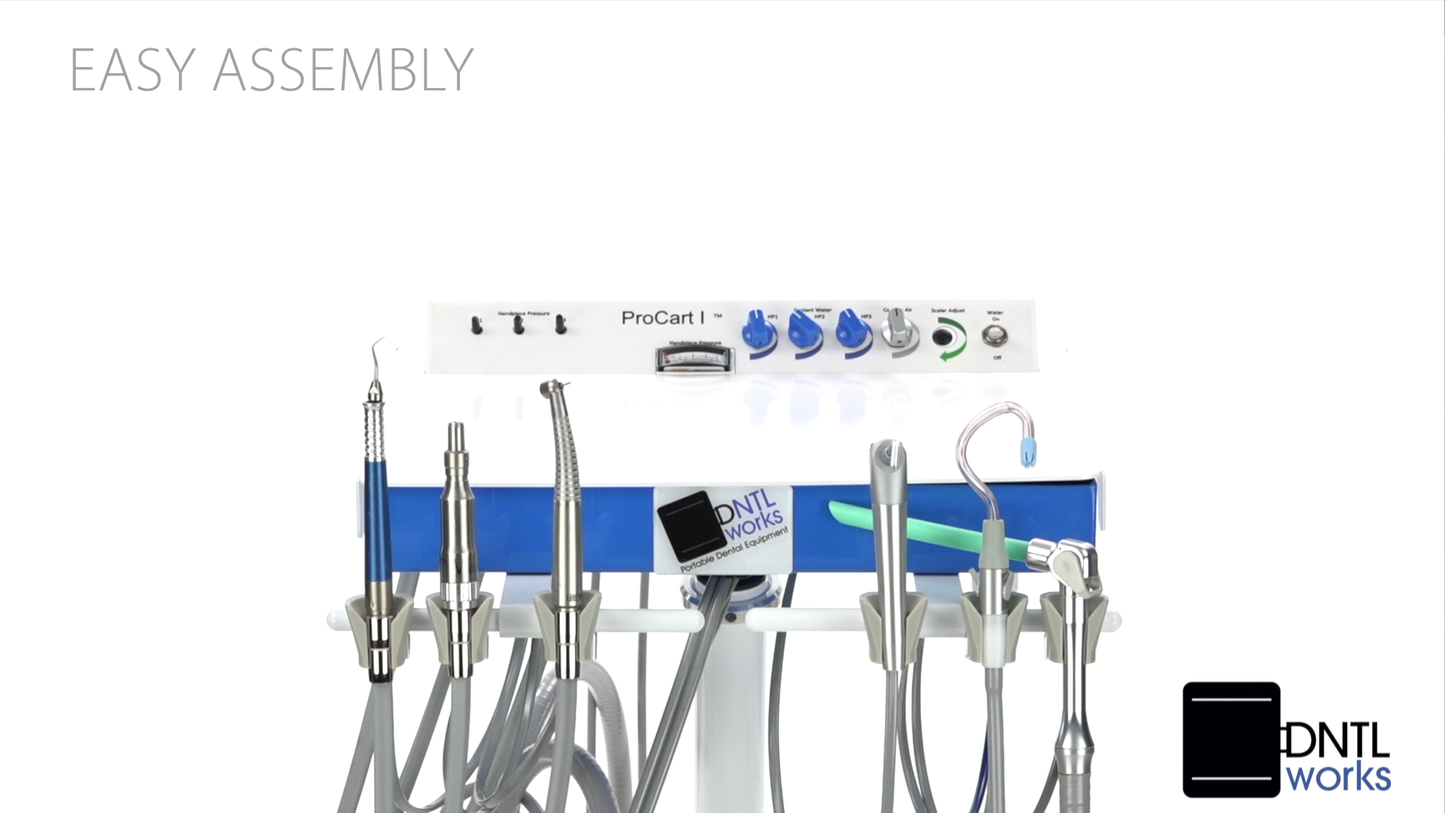

  • Convenient two-piece design for portability
  • Dual hose design for H.V.E and saliva ejector use
  • Front-mounted valve holders and controls for convenience
  • Large waste container with automatic overflow shut-off
  • 15 amp circuit protection
  • Proudly made in the USA

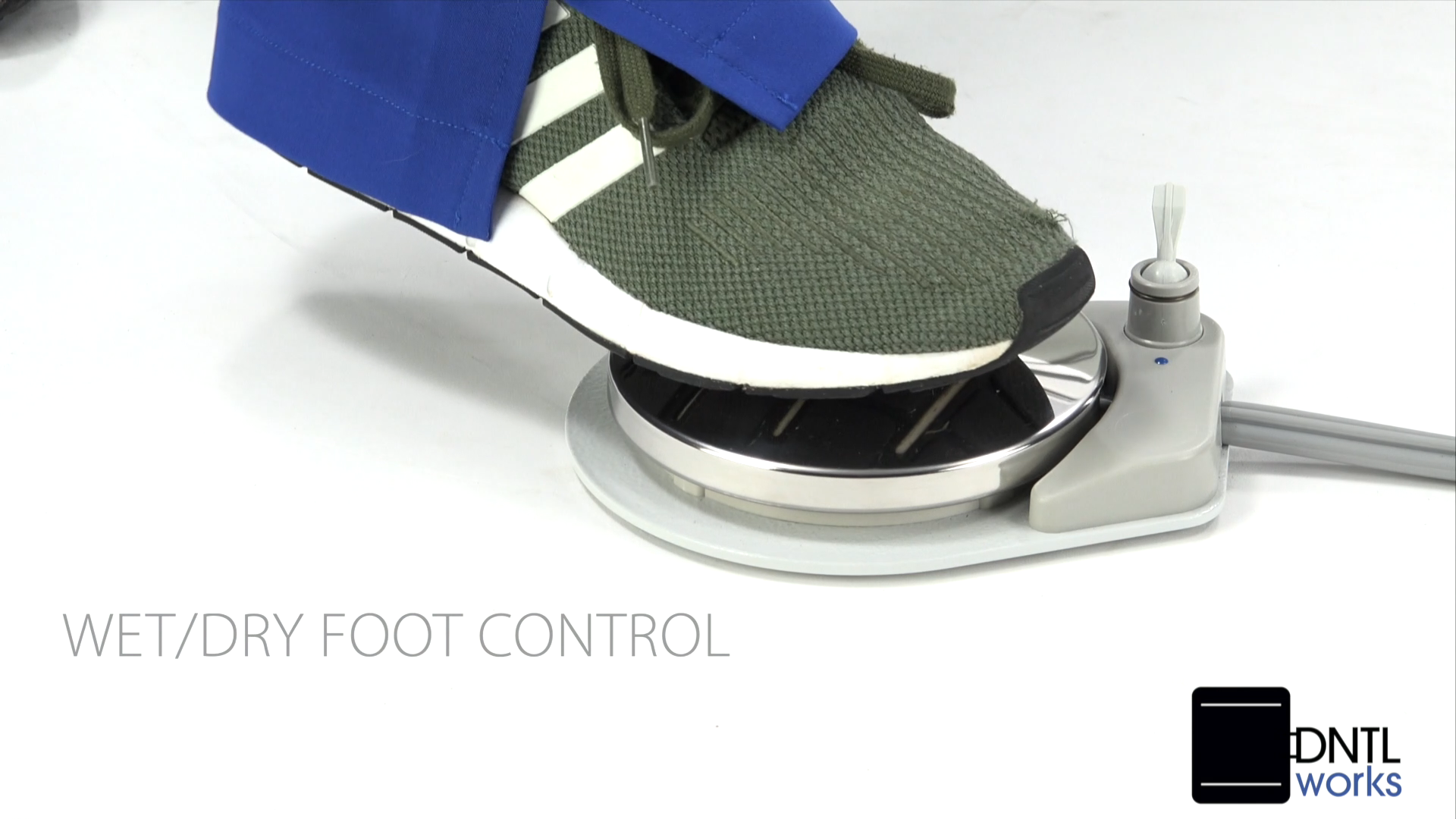

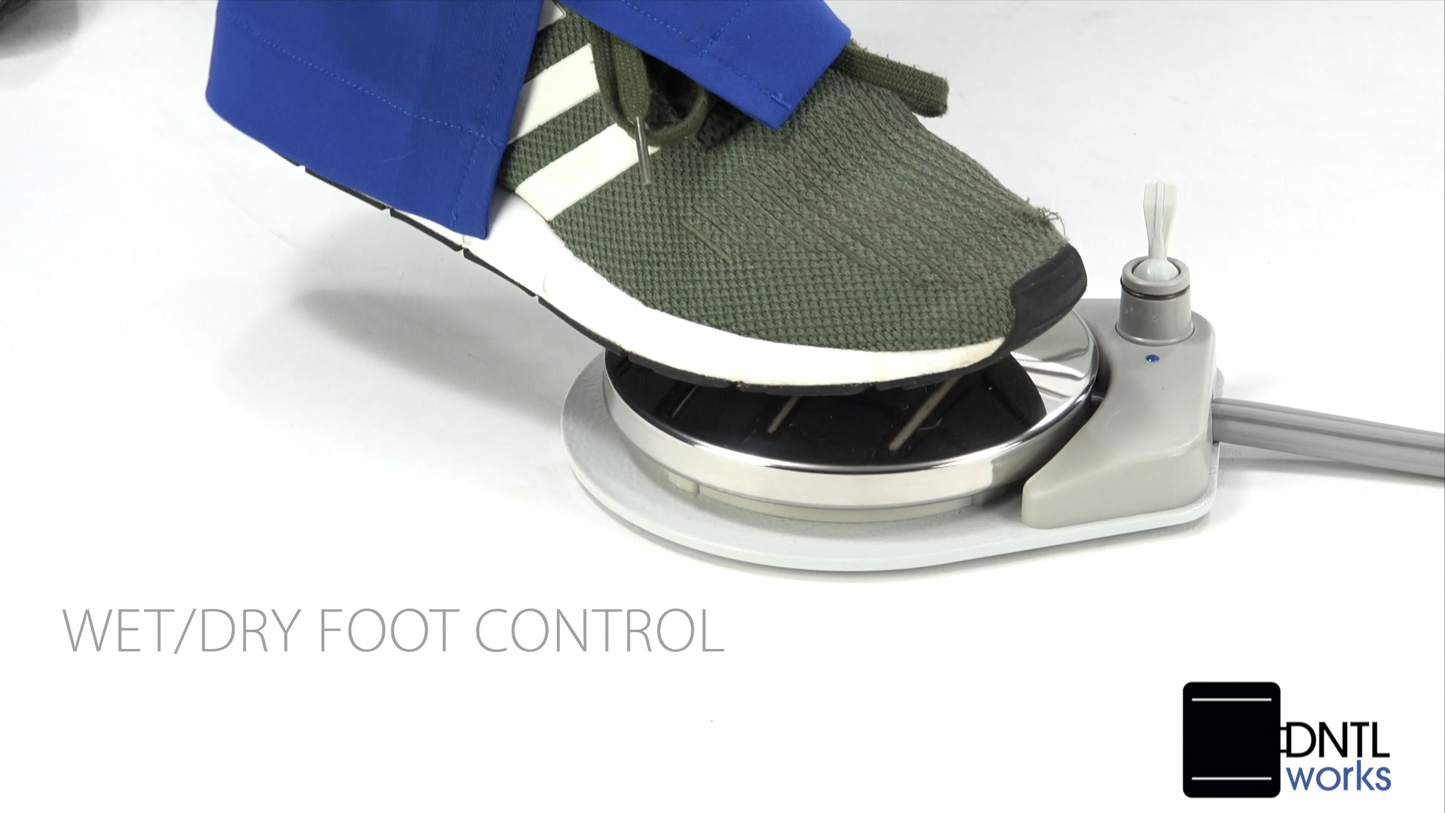

  • Wet/Dry foot control

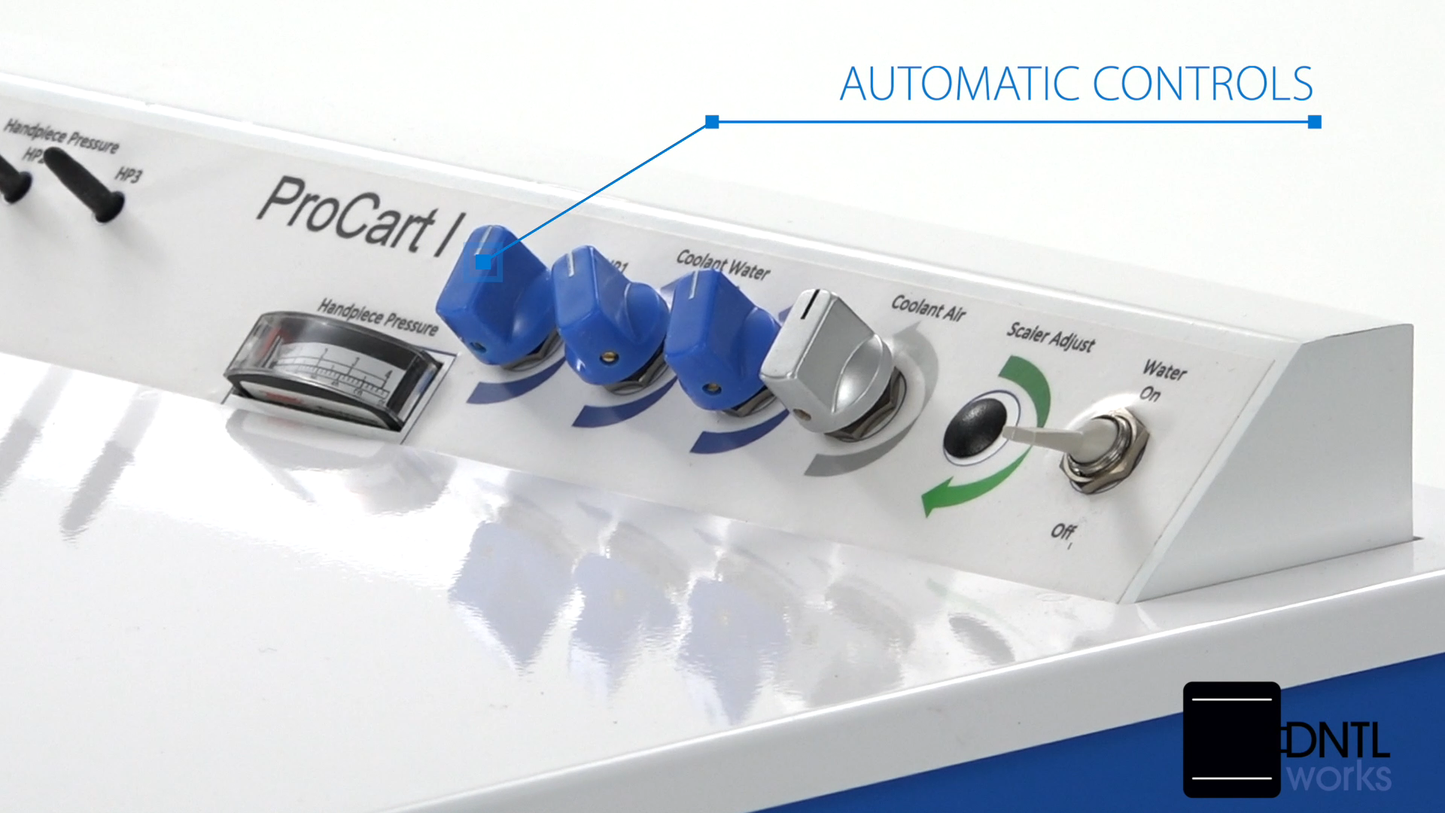

  • Automatic controls for one, two, and three handpieces
  • Accommodates most brands of handpieces and fiber optics
  • Non-retracting handpiece water coolant system
  • Air/water syringe
  • Adjustable high volume suction
  • Adjustable saliva ejector
  • Smooth- design chassis and handpiece holders

Extended Features

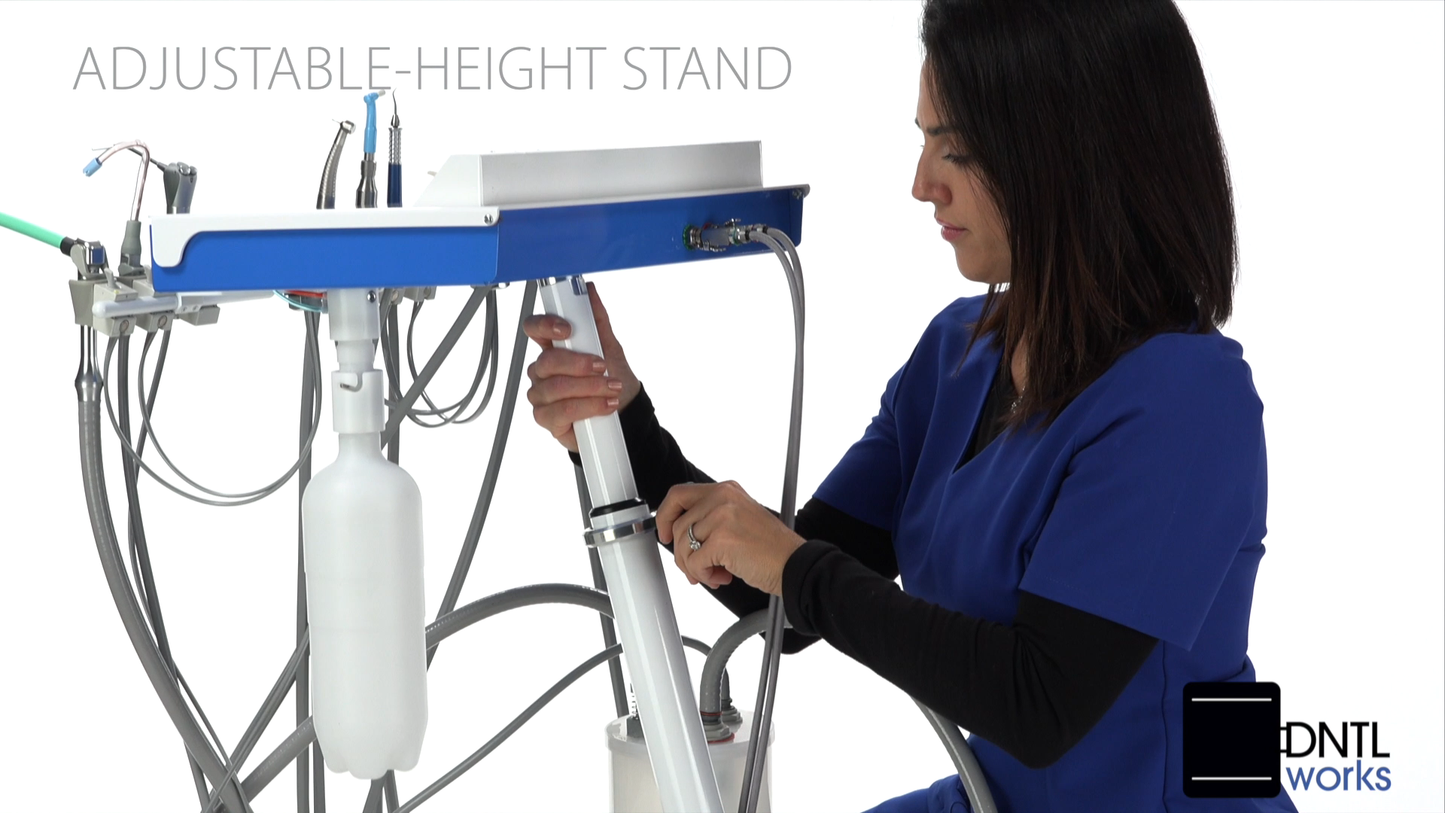

  • Easily assembled, adjustable-height stand with lockable casters
  • Powder-coated, scratch-resistant finish

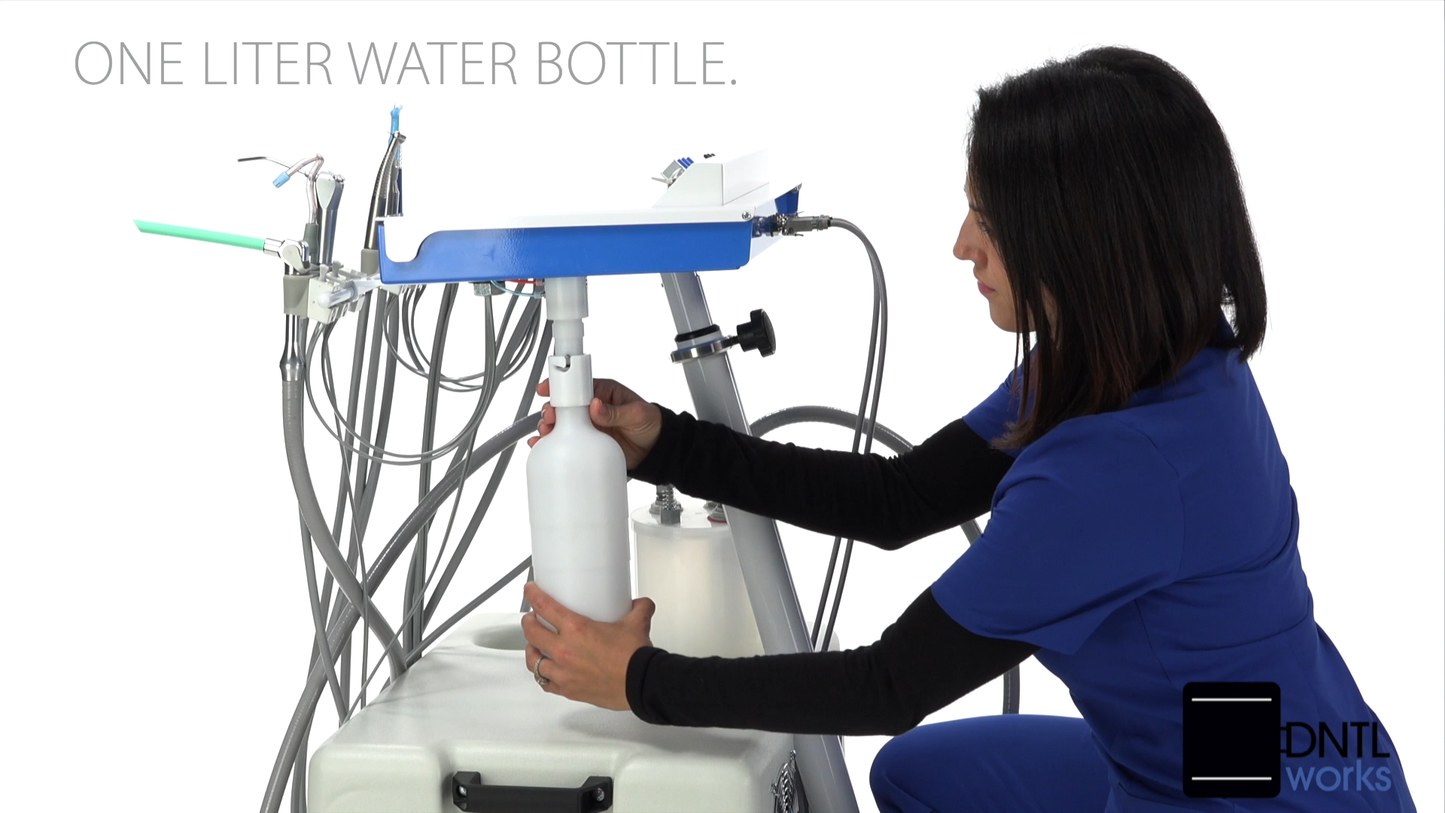

  • Self-contained water supply with 16.9 oz. (500 ml) reservoir
  • 2 quart (1.9 liters) waste container
  • Repair/Tool kit

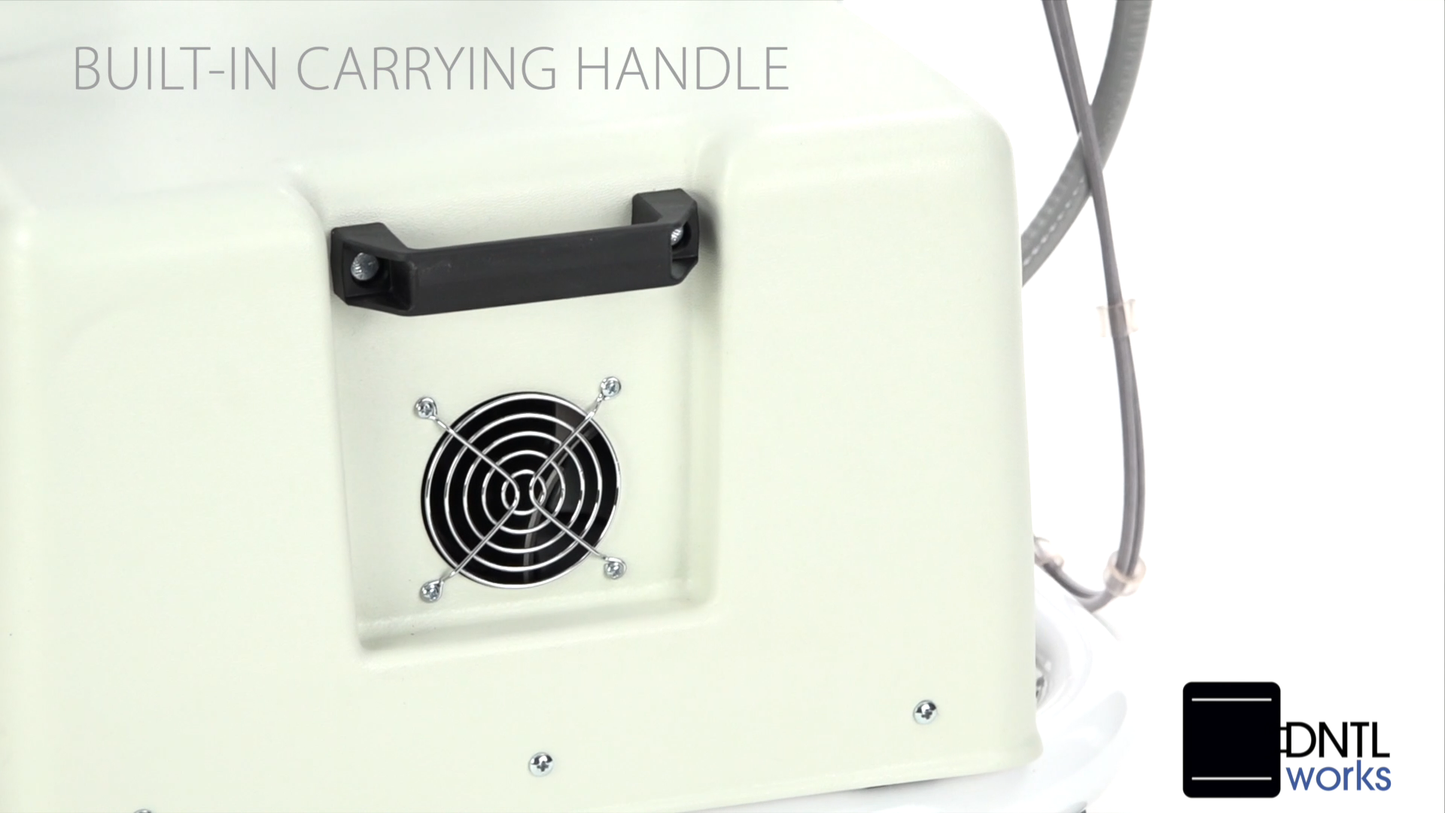

  • Built-in carrying handles on Compressor Module
  • Treatment Cart folds down into a compact, easily transportable package
  • Rugged carrying cases available

Specifications

  • Width:                 24”  (61 cm)
  • Depth:                26“ (66 cm)
  • Height:               32” (81 cm)
  • Weight:              112 lbs.  (50.8 kg)
  • Sound Level:    44dB @ 3 feet (91.4 cm)

Electrical System

  • Voltage:     115 Volts / 60Hz (Model 2400)
  • 220 Volts / 50Hz (Model 2410)
  • Wattage:    1200 - 1440 Watts

Compressor System

  • Horsepower: 1/3 hp Oil-Free
  • Operating Pressure: 70 - 100 psi (4.8 Bar - 6.9 Bar)
  • Flow Rate: 2.5scfm @ 40 psi
  • Air Reservoir: 1 Gallon (3.8 Liters)

Vacuum System

  • Horsepower: 1/3 hp Oil-Free
  • Operating Pressure: 12" Hg
  • Flow Rate: 4.6 scfm
  • Waste Receptacle: 2 qt (1.9 Liters)

View full details

Detailed information about ProCart I

What kind of maintenance is needed for ProCart I

Maintenance Schedule:
Between Patients: Purge lines to maintain hygiene.
Daily: Clean handpiece lines and air/water syringe.
Weekly: Inspect water and waste container.
Monthly: Flush vacuum lines and perform a full system inspection.

What Dental procedures can be performed with ProCart I

Procedures Supported: The ProCart I is equipped for a wide range of procedures, including routine examinations, cleanings, sealants, minor restorative work, and basic surgical procedures. This makes it ideal for use in mobile and outreach dental programs.

How much noise does ProCart I produce during operation?

Noise Level: The ProCart I operates at around 65 dB, comparable to a normal conversation. This quiet operation makes it suitable for clinical environments, especially in settings where noise levels must be kept low for patient comfort.

What kind of suction strength does ProCart I have?

Suction Strength: The ProCart I provides 15 inches Hg of suction, powerful enough for high-volume evacuation and saliva ejection. Purging between patients is recommended to maintain hygiene and prevent cross-contamination.
