ProPak I Portable Delivery Unit
ProPak I Portable Delivery Unit
SKU:1000
Couldn't load pickup availability

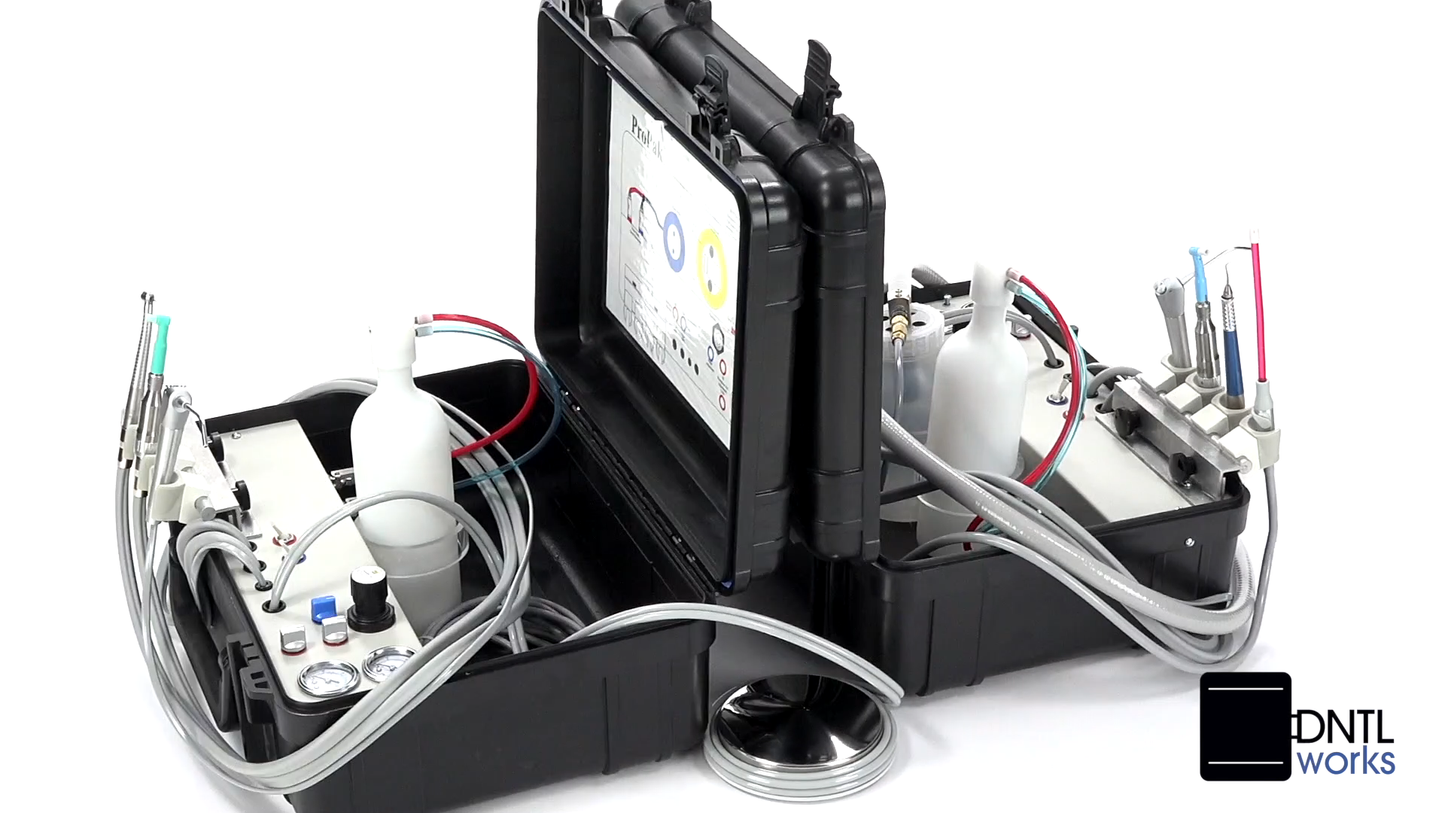

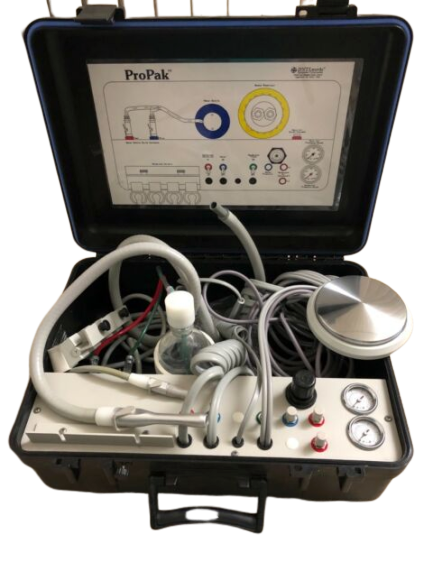

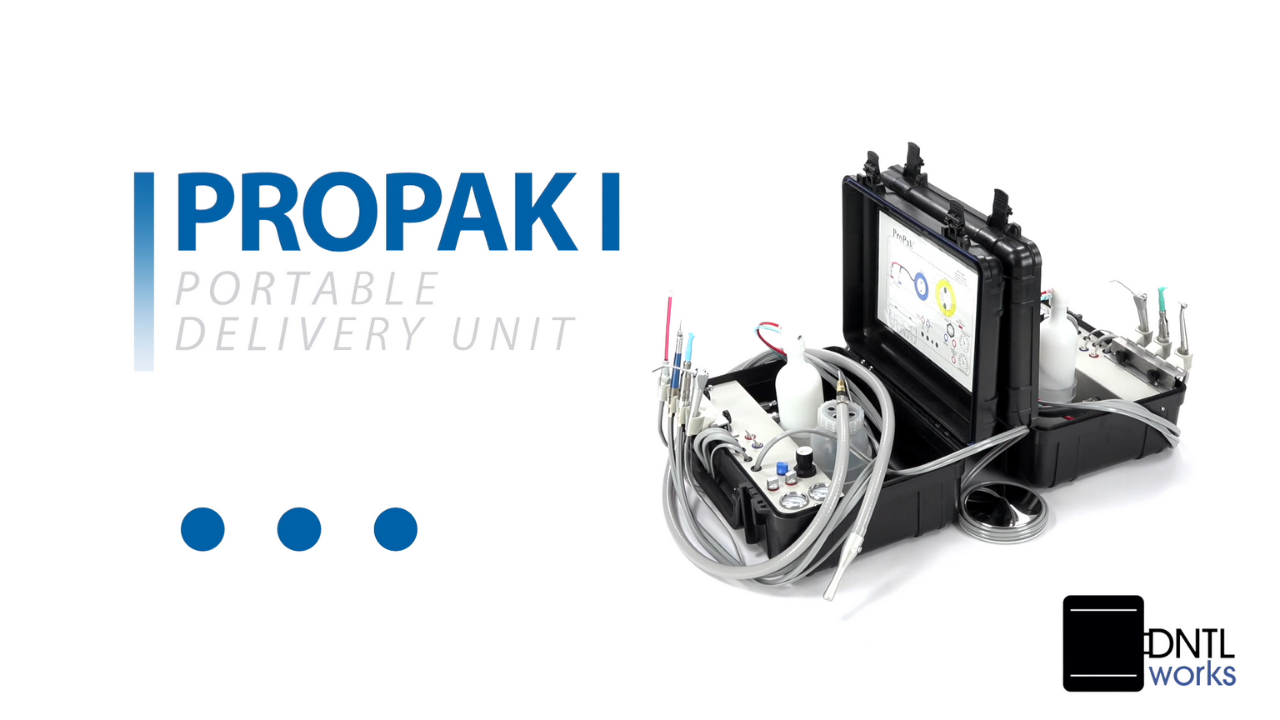

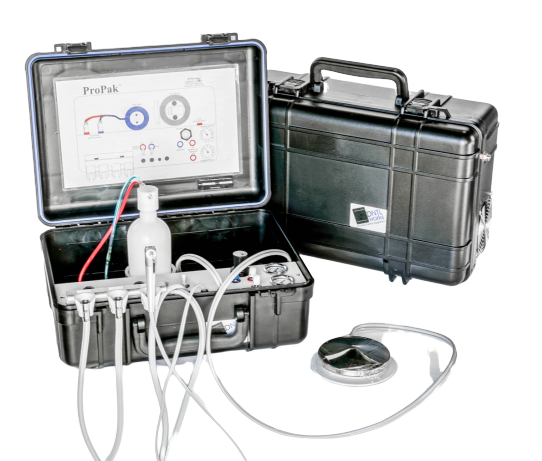

The ProPak™ I Portable Delivery Unit is a compact, lightweight dental system designed for efficient and streamlined dental procedures in any location. Built with a durable case and a padded handle, the ProPak I is easy to transport and set up, making it an ideal choice for mobile dental practices, community health programs, and field dentistry. Unit is designed for Dentists and Hygienists for dental procedures.
Key Features and Benefits
- Easy Portability and Setup: Housed in a strong, impact-resistant case with a padded handle, the ProPak I offers secure, convenient transport and quick setup for practitioners on the go.

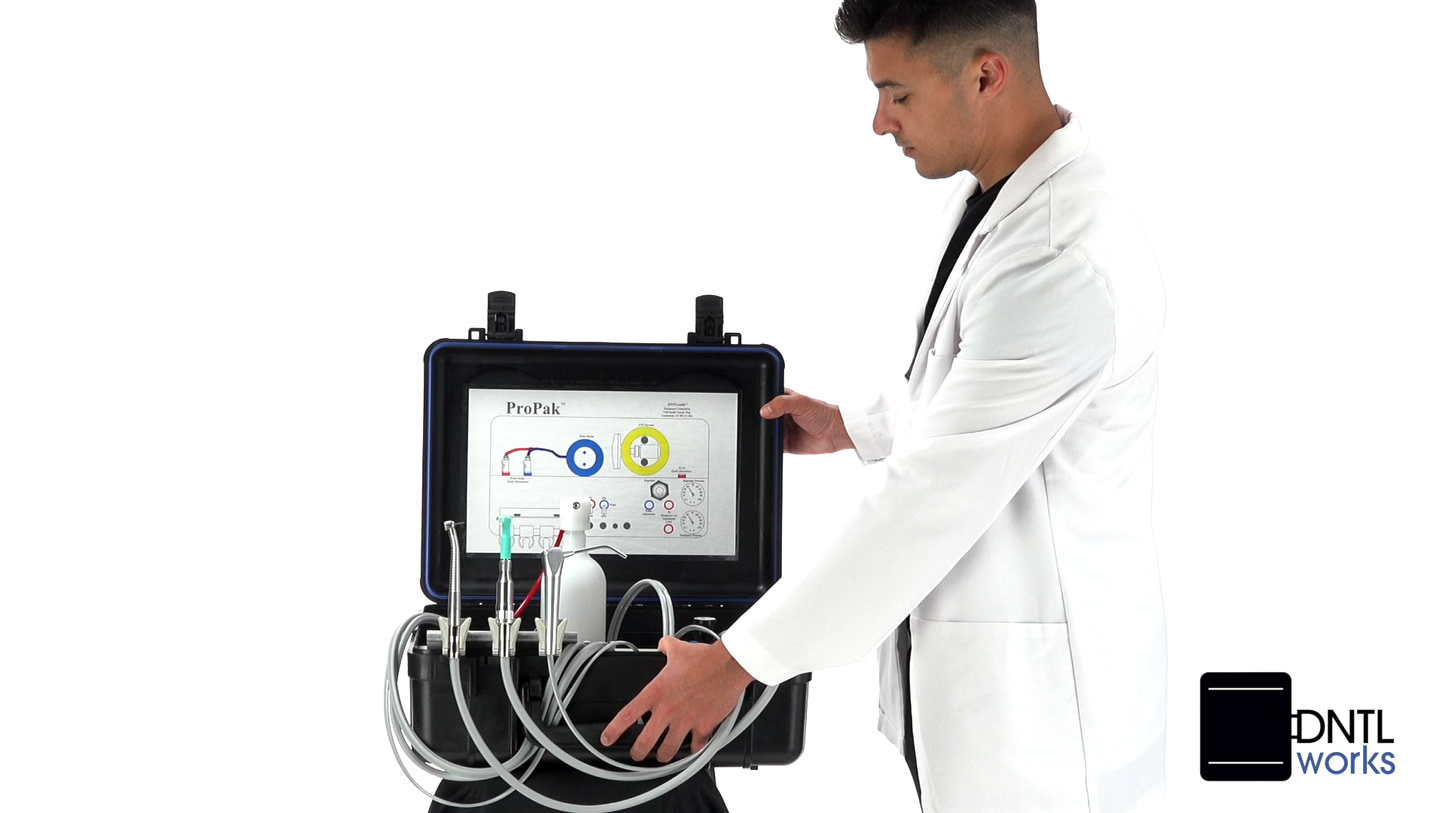

- User-Friendly Control Panel: The ProPak I’s pull-out control panel simplifies cleaning, while its color-coded controls enhance usability, allowing for quick and accurate adjustments.
- Flexible Handpiece Options: Compatible with most major brands, this unit offers a choice between coiled or straight handpiece tubing and includes manual controls for operating one or two handpieces.
- Self-Contained Water and Waste Systems: With a built-in air/water syringe, a self-contained water supply, and a 1.9-liter waste container, the ProPak I supports efficient dental care without external water hookups.
- Adjustable AVS Suction System: The ProPak I features an adjustable AVS suction system, providing reliable suction for various dental procedures and ensuring a clean, comfortable experience for patients.
ProPak I vs. ProPak II
For those needing additional suction power and capacity, consider the ProPak II, which includes an enhanced AVS suction system, a larger water container, and additional weight for increased stability during operation.
Ideal Applications
The ProPak™ I Portable Delivery Unit is perfectly suited for:
- Mobile and Field Dentistry: Lightweight and portable, ideal for outreach programs, rural clinics, and school-based dental care.
- Community Health Initiatives: Provides an all-in-one solution for dental services in non-traditional or temporary settings.
- Expanding Practices: Offers an efficient setup option for clinics that need to expand into underutilized spaces or satellite offices.
With its combination of portability, user-friendly features, and compatibility with most handpieces, the ProPak™ I Portable Delivery Unit is a versatile and effective solution for any dental professional seeking a reliable, self-contained system for on-the-go care.
Features
Features
- A lightweight, strong case with a padded carrying handle.
- Easily assembled, all components fit into the case with room to store additional supplies.

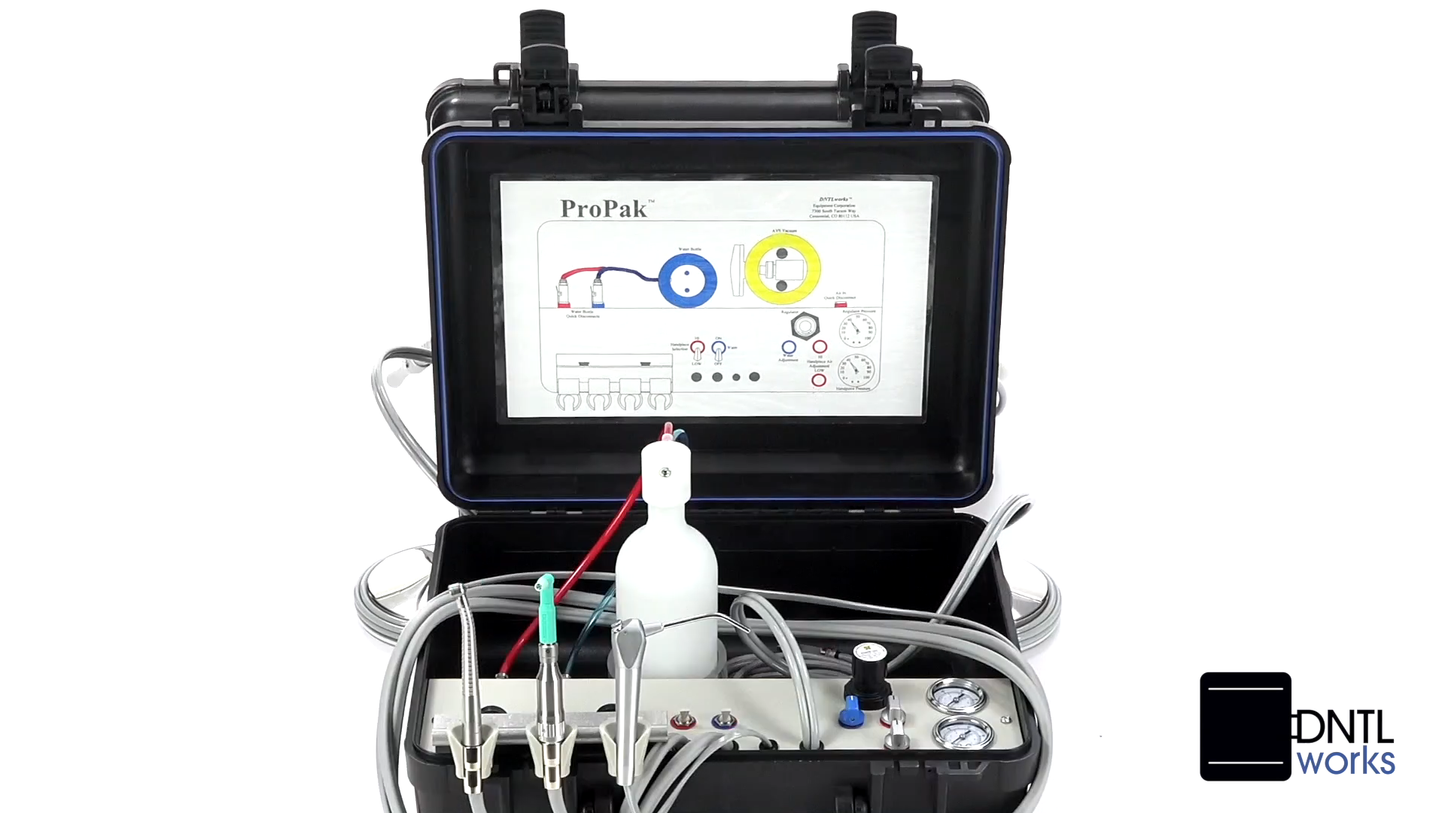

- The unique, pull-out design of the control panel makes the unit easy to clean.
- Easy to operate, color-coded controls.

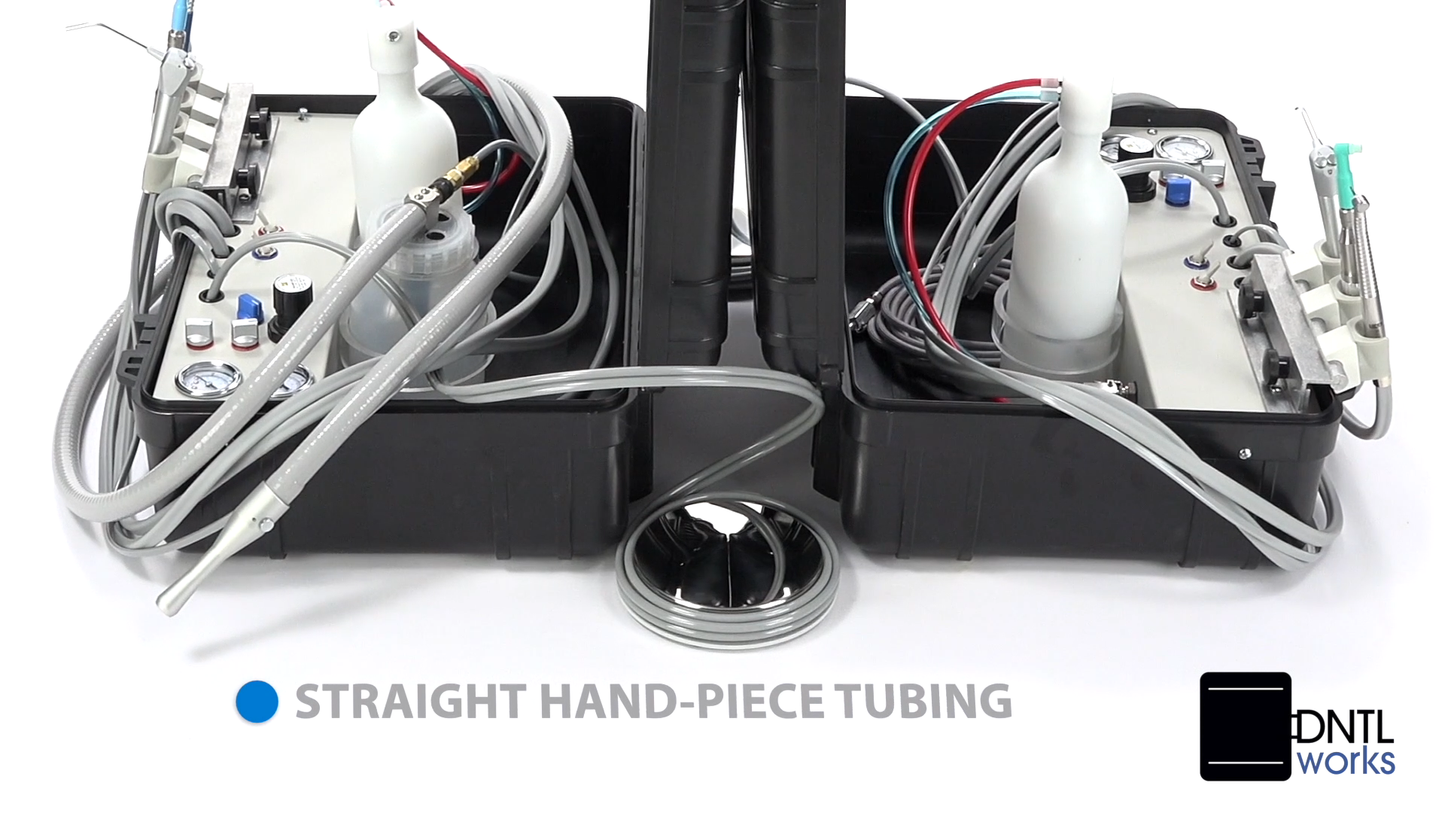

- Coiled or straight handpiece tubing.
- Air/water syringe.

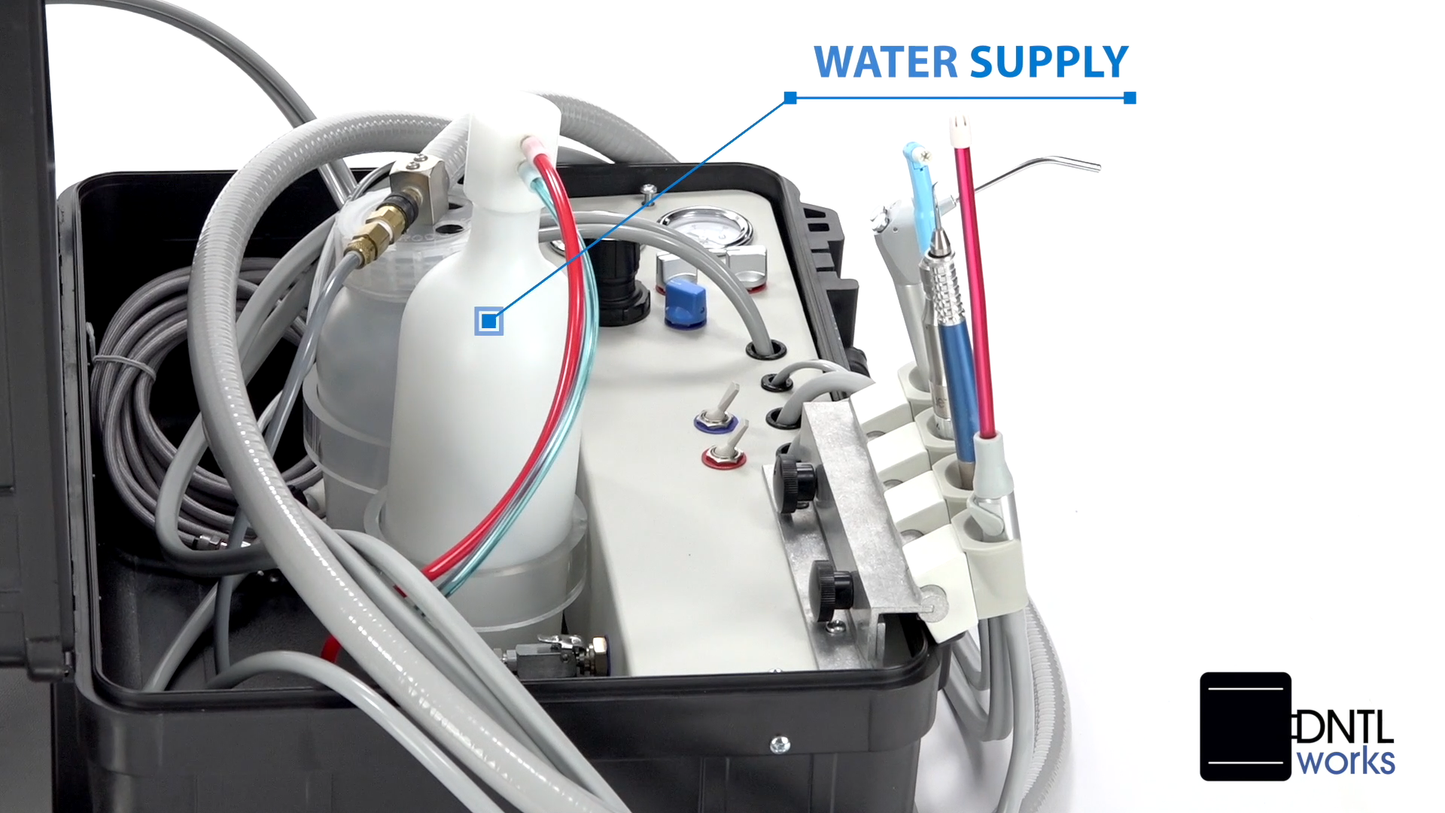

- Self-contained water supply.
- 1.9-liter waste container.
- Adjustable, built-in AVS suction system in ProPak II.
Additional Features
- Manual controls for one or two handpieces.
- accommodates most brands of handpieces.
- Non-retracting water coolant system with 1-liter reservoir.
- Color-coded controls for easy identification, training, and utilization.
- Lockable, ABS/Polycarbonate, or ATA 300 rated cases.
Specifications
Specifications
DIMENSIONS/WEIGHT :

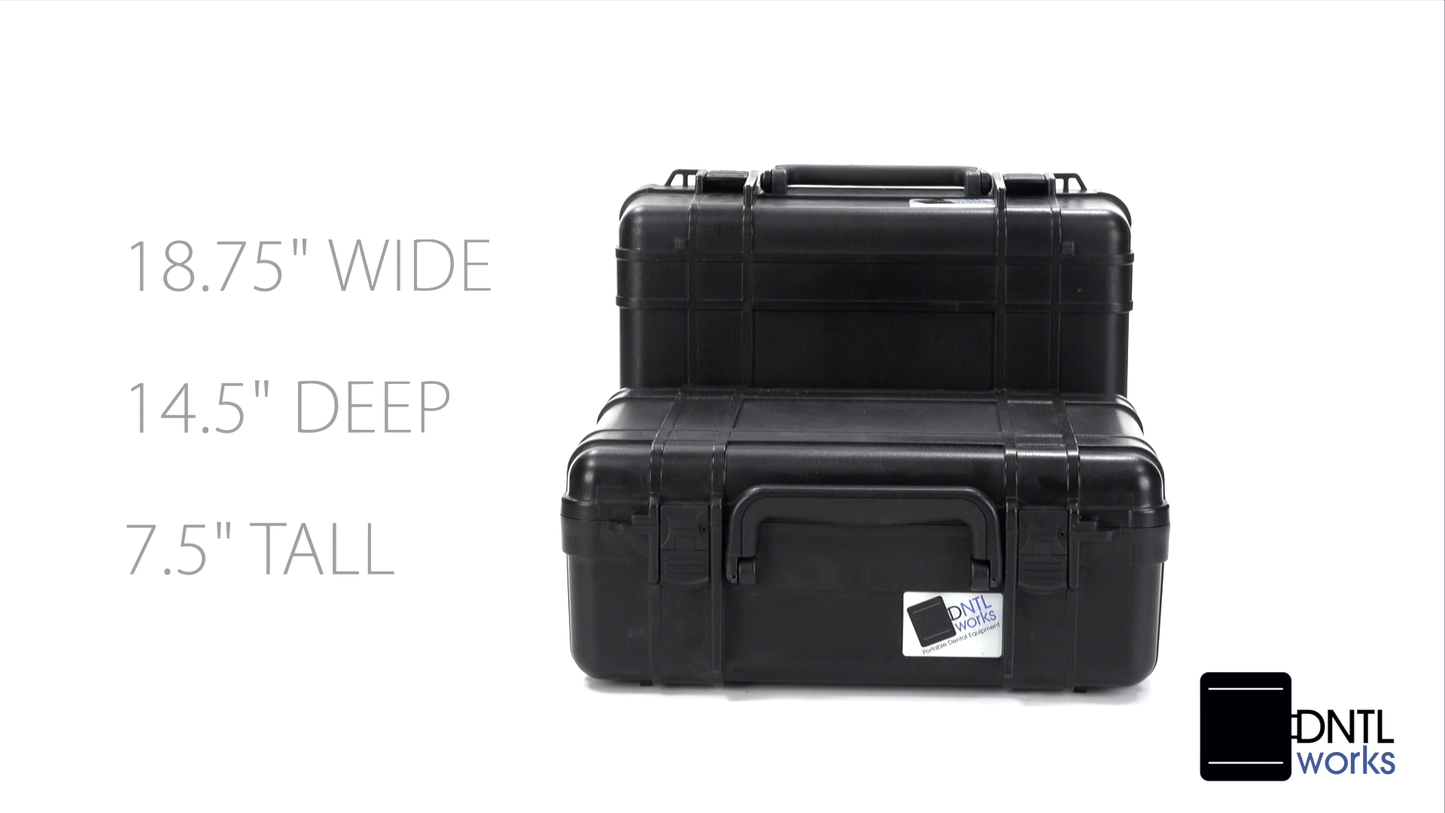

Case Size: 18.75" x 14.5" x 7.75"
Weight: 18 lbs
Containers:
Water: 1 liter (standard)
COMPONENTS & ACCESSORIES :
Handpiece

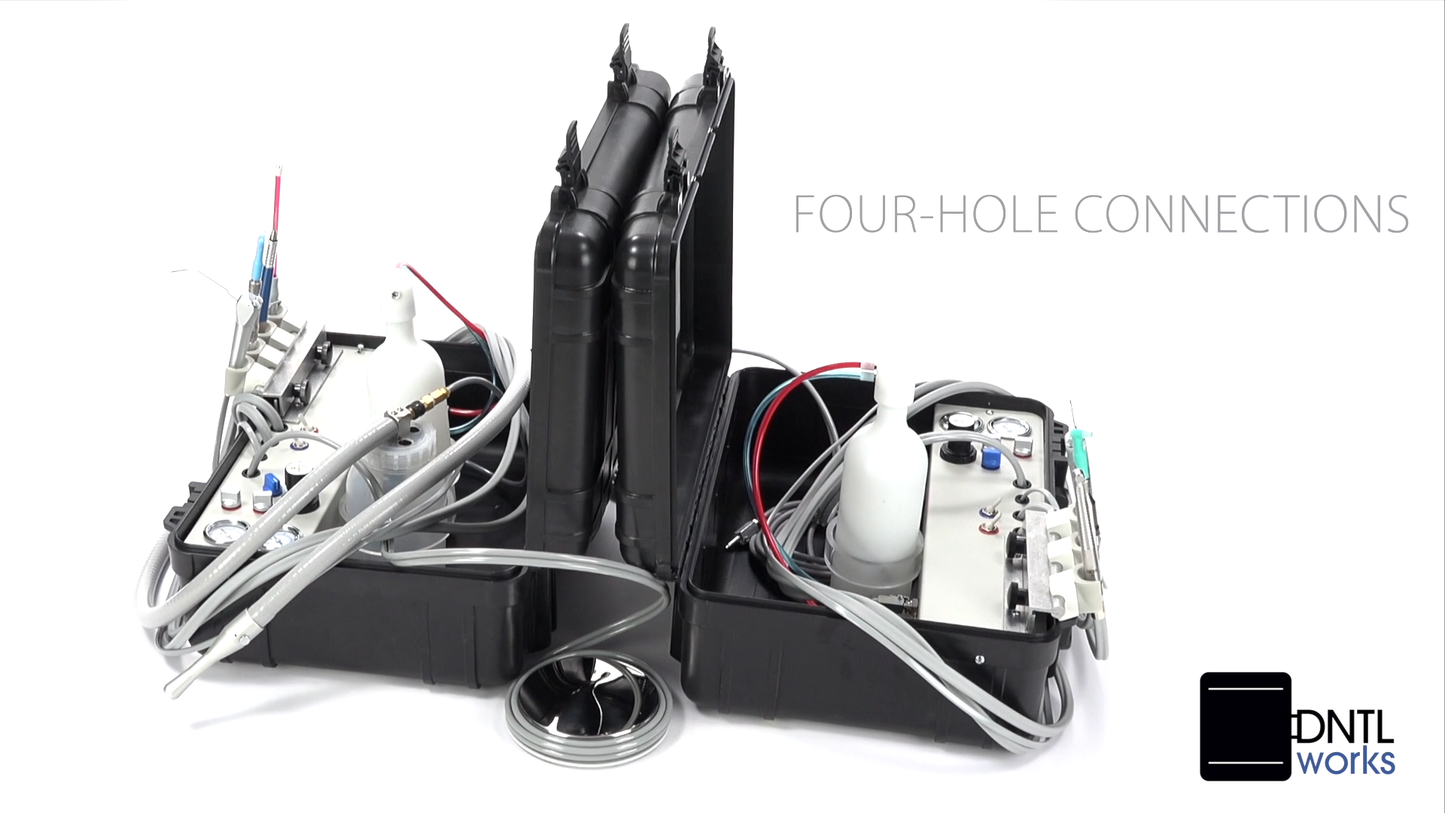

Tubing: 2 non-retractable four-hole connections, with flush system
Water: Three-way syringe
Pressure: Adjustable from 0 to 60 psi
Included Accessories:
Tool and repair kit
OPERATION CONDITIONS AND SHIPPING
Operating Pressure- 65 psi
Pressure- 125 Max Inlet Pressure
Regulated Pressure Water 40psi
Shipping Size- 24"x24"x12"
Shipping Weight -26lbs
Volume Water Container -1Liter
Share
Detailed information about ProPak I Portable Delivery Unit
What kind of maintenance is needed for ProPak I Portable Delivery Unit
Maintenance Schedule:
Between Patients: Purge lines to maintain hygiene and prevent cross-contamination.
Daily: Clean handpiece lines and air/water syringe.
Weekly: Inspect water levels and empty the waste container.
Monthly: Flush vacuum lines and conduct a full system inspection.
What Dental procedures can be performed with ProPak I Portable Delivery Unit
Procedures Supported: The ProPak I is equipped for a variety of essential dental procedures, including exams, cleanings, sealant applications, and basic restorative work. This makes it ideal for portable and on-site dental services.
How much noise does ProPak I Portable Delivery Unit produce during operation?
Noise Level: The ProPak I operates at approximately 58 dB, providing a quiet environment suitable for clinical and mobile dental settings.
What kind of suction strength does ProPak I Portable Delivery Unit have?
Suction Strength: The ProPak I provides 14 inches Hg of suction power, delivering reliable performance for high-volume evacuation in portable dental applications.
